ISL9122A 3. Typical Performance Curves VIN = VEN = 3.6V, VOUT = 3.3V, I2C pull-up voltage = VIN, L1 = 1µH, C1 = 10µF, C2 = 10µF, TA = +25°C, unless otherwise stated.

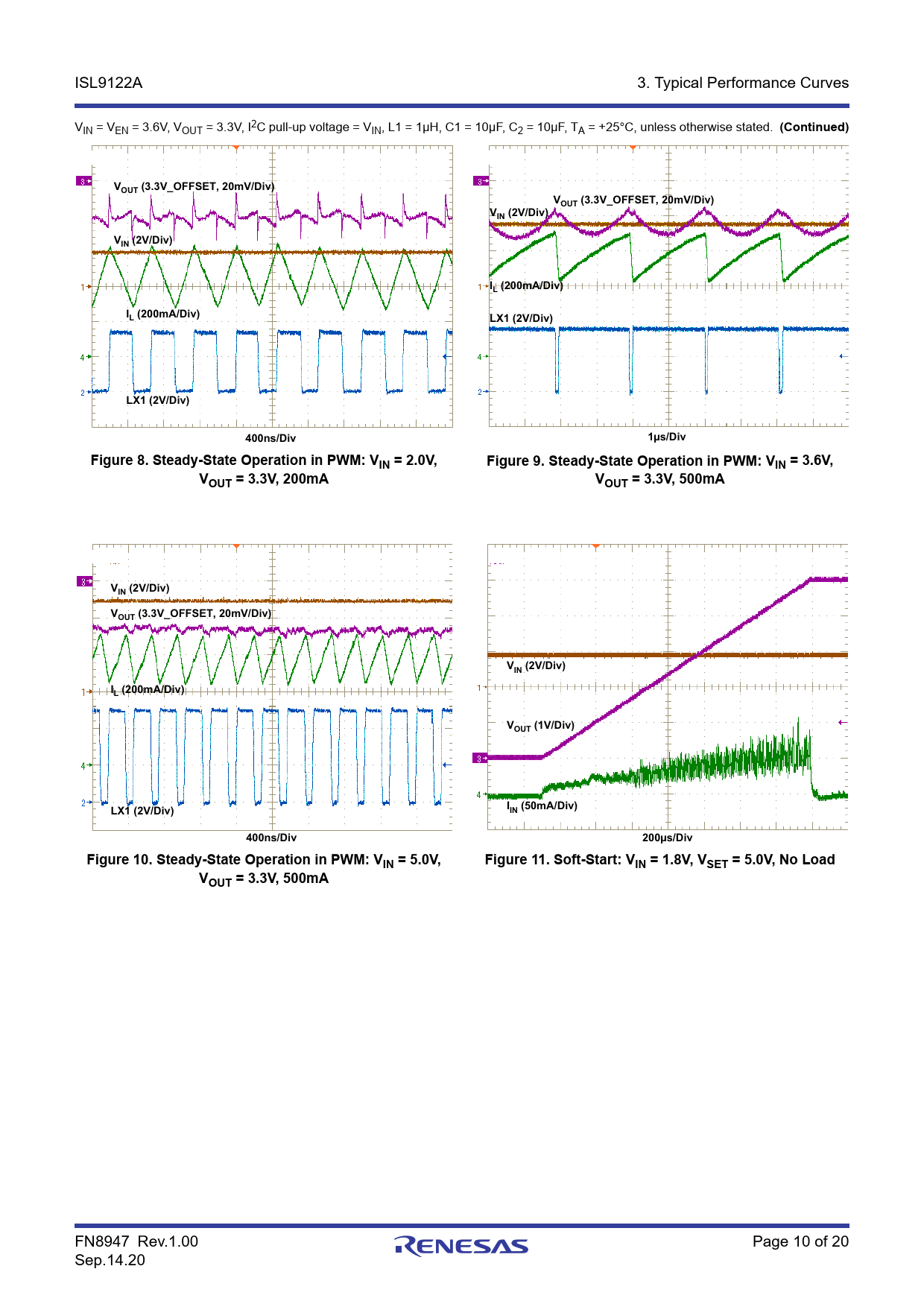

(Continued) VOUT (3.3V_OFFSET, 20mV/Div) VOUT (3.3V_OFFSET, 20mV/Div) VIN (2V/Div) VIN (2V/Div) IL (200mA/Div) IL (200mA/Div) LX1 (2V/Div) LX1 (2V/Div) 400ns/Div 1μs/Div Figure 8. Steady-State Operation in PWM: VIN = 2.0V, Figure 9. Steady-State Operation in PWM: VIN = 3.6V, VOUT = 3.3V, 200mA VOUT = 3.3V, 500mA VIN (2V/Div) VOUT (3.3V_OFFSET, 20mV/Div) VIN (2V/Div) IL (200mA/Div) VOUT (1V/Div) LX1 (2V/Div) IIN (50mA/Div) 400ns/Div 200μs/Div Figure 10. Steady-State Operation in PWM: VIN = 5.0V, Figure 11. Soft-Start: VIN = 1.8V, VSET = 5.0V, No Load VOUT = 3.3V, 500mA
