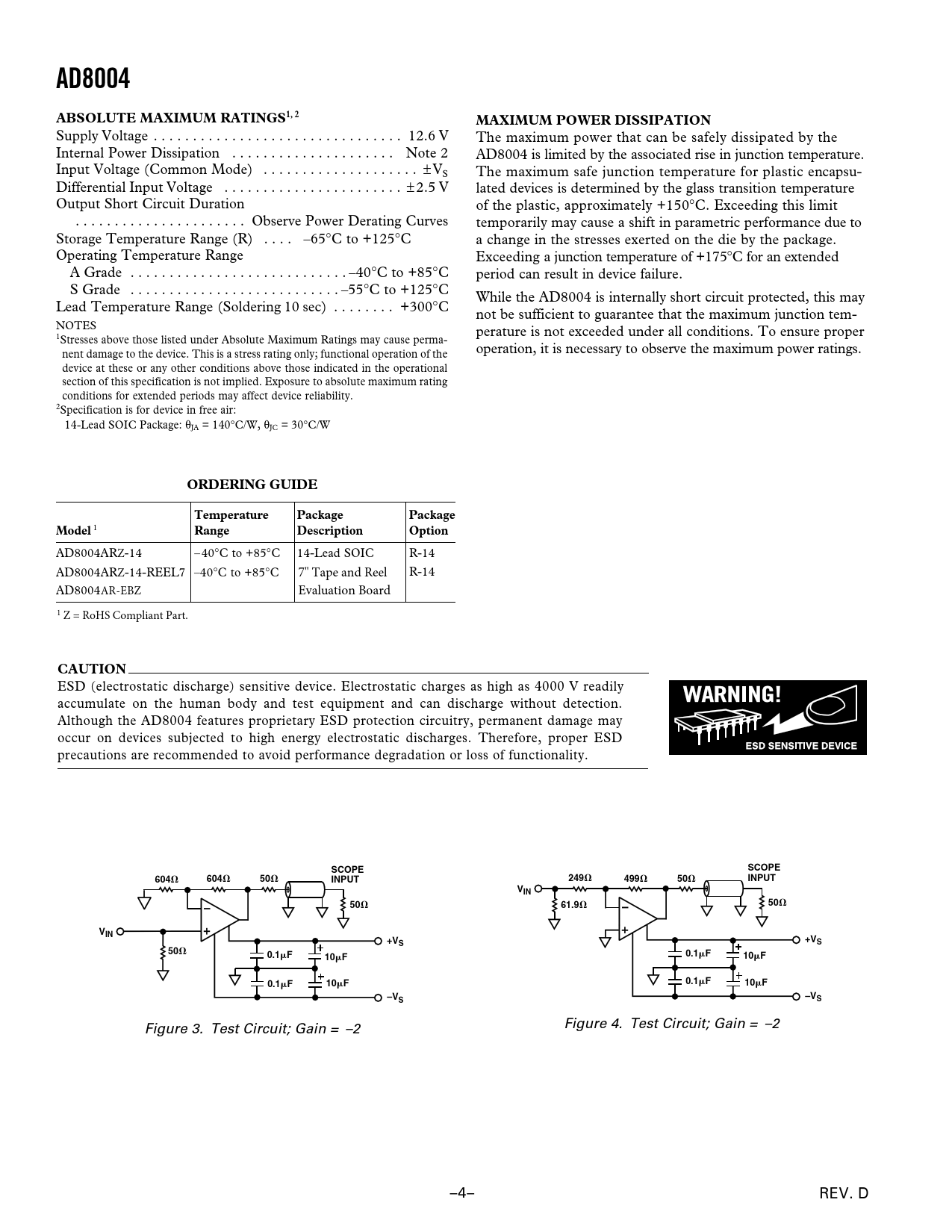

AD8004 ABSOLUTE MAXIMUM RATINGS1, 2 MAXIMUM POWER DISSIPATION
Supply Voltage . 12.6 V The maximum power that can be safely dissipated by the Internal Power Dissipation . Note 2 AD8004 is limited by the associated rise in junction temperature. Input Voltage (Common Mode) . ± VS The maximum safe junction temperature for plastic encapsu- Differential Input Voltage . ± 2.5 V lated devices is determined by the glass transition temperature Output Short Circuit Duration of the plastic, approximately +150°C. Exceeding this limit . Observe Power Derating Curves temporarily may cause a shift in parametric performance due to Storage Temperature Range (R) . –65°C to +125°C a change in the stresses exerted on the die by the package. Operating Temperature Range Exceeding a junction temperature of +175°C for an extended A Grade . –40°C to +85°C period can result in device failure. S Grade . –55°C to +125°C While the AD8004 is internally short circuit protected, this may Lead Temperature Range (Soldering 10 sec) . +300°C not be sufficient to guarantee that the maximum junction tem- NOTES perature is not exceeded under all conditions. To ensure proper 1Stresses above those listed under Absolute Maximum Ratings may cause perma- nent damage to the device. This is a stress rating only; functional operation of the operation, it is necessary to observe the maximum power ratings. device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2Specification is for device in free air: 14-Lead SOIC Package: θJA = 140°C/W, θJC = 30°C/W
ORDERING GUIDE Temperature Package Package Model
1
Range Description Option
AD8004ARZ-14 – 40°C to +85°C 14-Lead SOIC R-14 AD8004ARZ-14-REEL7 –40°C to +85°C 7" Tape and Reel R-14 AD8004AR-EBZ Evaluation Board 1 Z = RoHS Compliant Part.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although the AD8004 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality.
SCOPE SCOPE 604 604 50 INPUT 249 499 50 INPUT VIN 50 61.9 50 VIN +V +V S S 50 0.1 0.1 F F 10 10 F F 0.1 0.1 10 F F 10 F F –V –V S S
Figure 4. Test Circuit; Gain = –2 Figure 3. Test Circuit; Gain = –2 –4– REV. D Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION CONNECTION DIAGRAM SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE MAXIMUM POWER DISSIPATION Typical Performance Characteristics THEORY OF OPERATION DC AND AC CHARACTERISTICS DRIVING CAPACITIVE LOADS OPTIMIZING FLATNESS DRIVING A SINGLE-SUPPLY A/D CONVERTER LAYOUT CONSIDERATIONS OUTLINE DIMENSIONS Revision History
