Datasheet OP227 (Analog Devices)

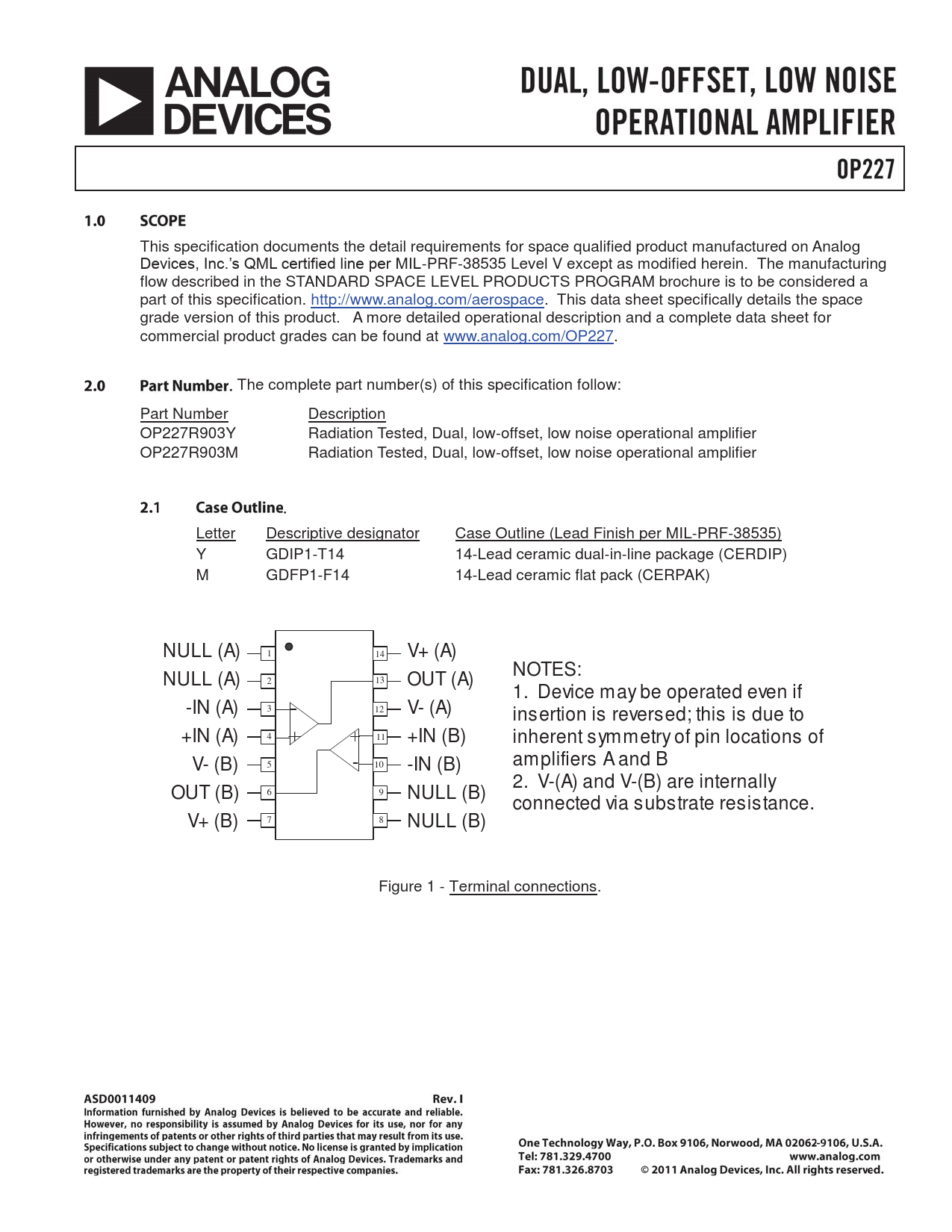

This specification documents the detail requirements for space qualified product manufactured on Analog Devices, Inc.’s QML certified line per MIL-PRF-38535 Level V except as modified herein. The manufacturing flow described in the STANDARD SPACE LEVEL PRODUCTS PROGRAM brochure is to be considered a part of this specification. http://www.analog.com/aerospace. This data sheet specifically details the space grade version of this product. A more detailed operational description and a complete data sheet for commercial product grades can be found at www.analog.com/OP227.

The complete part number(s) of this specification follow: Part Number Description OP227R903Y Radiation Tested, Dual, low-offset, low noise operational amplifier OP227R903M

Radiation Tested, Dual, low-offset, low noise operational amplifier

Letter Descriptive designator Case Outline (Lead Finish per MIL-PRF-38535) Y GDIP1-T14 14-Lead ceramic dual-in-line package (CERDIP) M GDFP1-F14 14-Lead ceramic flat pack (CERPAK) NULL (A) 1 14 V+ (A) NOTES: NULL (A) 2 13 OUT (A) 1. Device may be operated even if 3 -IN (A) - 12 V- (A) + insertion is reversed; this is due to 4 11 +IN (A) + +IN (B) inherent symmetry of pin locations of - amplifiers A and B 5 10 V- (B) -IN (B) 2. V-(A) and V-(B) are internally 6 9 OUT (B) NULL (B) connected via substrate resistance. 7 8 V+ (B) NULL (B) Figure 1 - Terminal connections.
