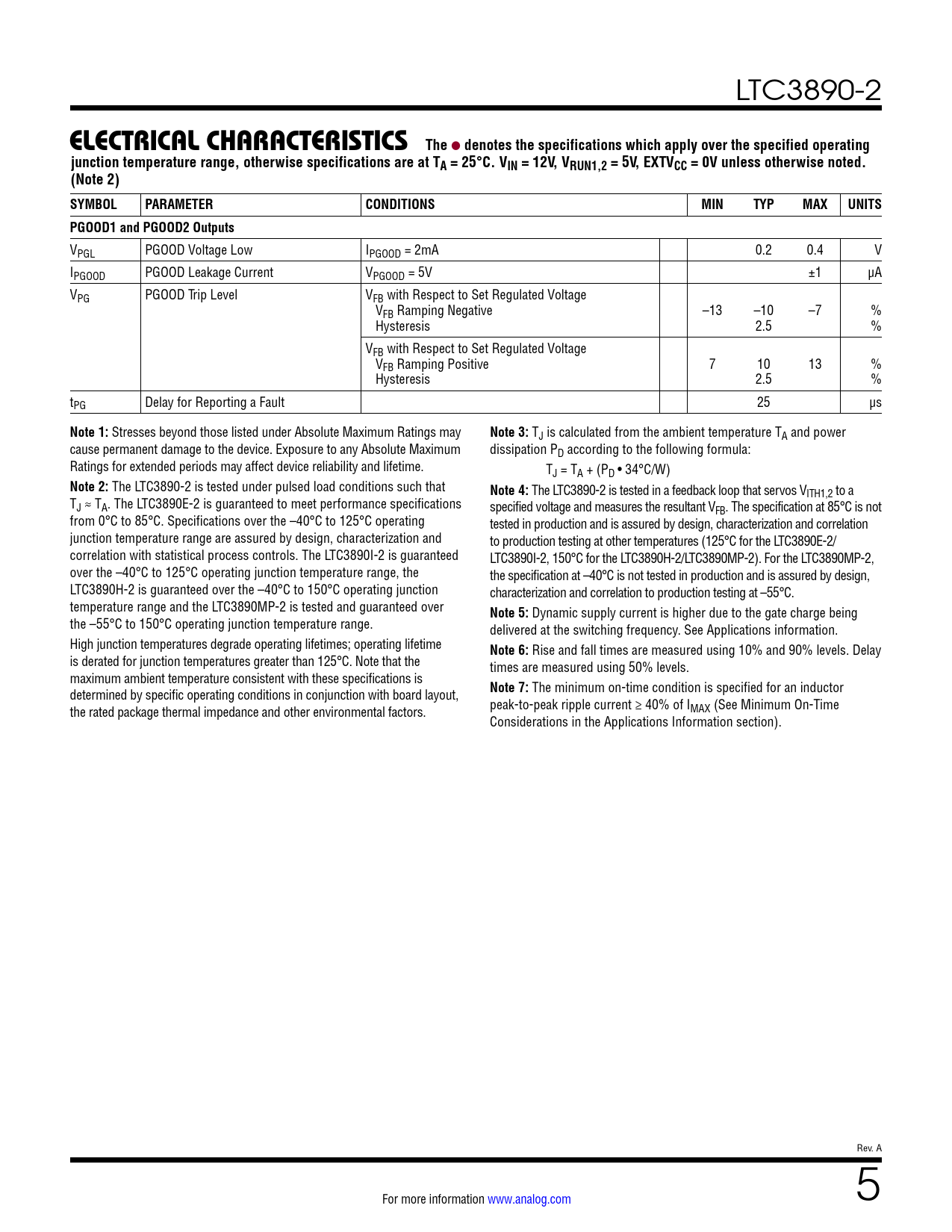

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the specified operating
Model Line for this Datasheet
Text Version of Document
LTC3890-2
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified operating junction temperature range, otherwise specifications are at TA = 25°C. VIN = 12V, VRUN1,2 = 5V, EXTVCC = 0V unless otherwise noted. (Note 2) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS PGOOD1 and PGOOD2 Outputs
VPGL PGOOD Voltage Low IPGOOD = 2mA 0.2 0.4 V IPGOOD PGOOD Leakage Current VPGOOD = 5V ±1 µA VPG PGOOD Trip Level VFB with Respect to Set Regulated Voltage VFB Ramping Negative –13 –10 –7 % Hysteresis 2.5 % VFB with Respect to Set Regulated Voltage VFB Ramping Positive 7 10 13 % Hysteresis 2.5 % tPG Delay for Reporting a Fault 25 µs
