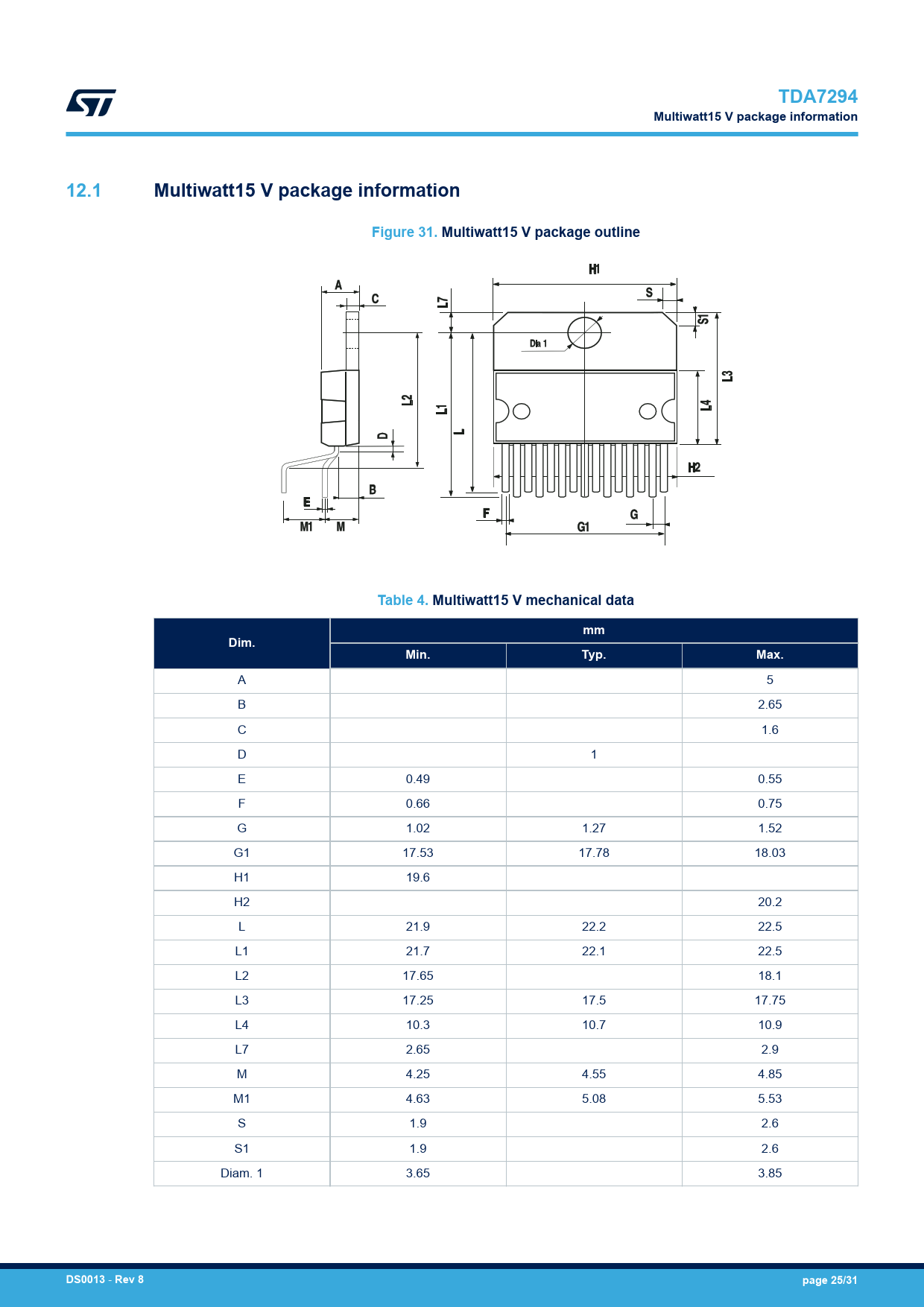

TDA7294. Multiwatt15 V package information. 12.1. Figure 31. Multiwatt15 V package outline
Model Line for this Datasheet
Text Version of Document
TDA7294 Multiwatt15 V package information 12.1 Multiwatt15 V package information Figure 31. Multiwatt15 V package outline Table 4. Multiwatt15 V mechanical data mm Dim. Min. Typ. Max.
A 5 B 2.65 C 1.6 D 1 E 0.49 0.55 F 0.66 0.75 G 1.02 1.27 1.52 G1 17.53 17.78 18.03 H1 19.6 H2 20.2 L 21.9 22.2 22.5 L1 21.7 22.1 22.5 L2 17.65 18.1 L3 17.25 17.5 17.75 L4 10.3 10.7 10.9 L7 2.65 2.9 M 4.25 4.55 4.85 M1 4.63 5.08 5.53 S 1.9 2.6 S1 1.9 2.6 Diam. 1 3.65 3.85
DS0013
-
Rev 8 page 25/31
