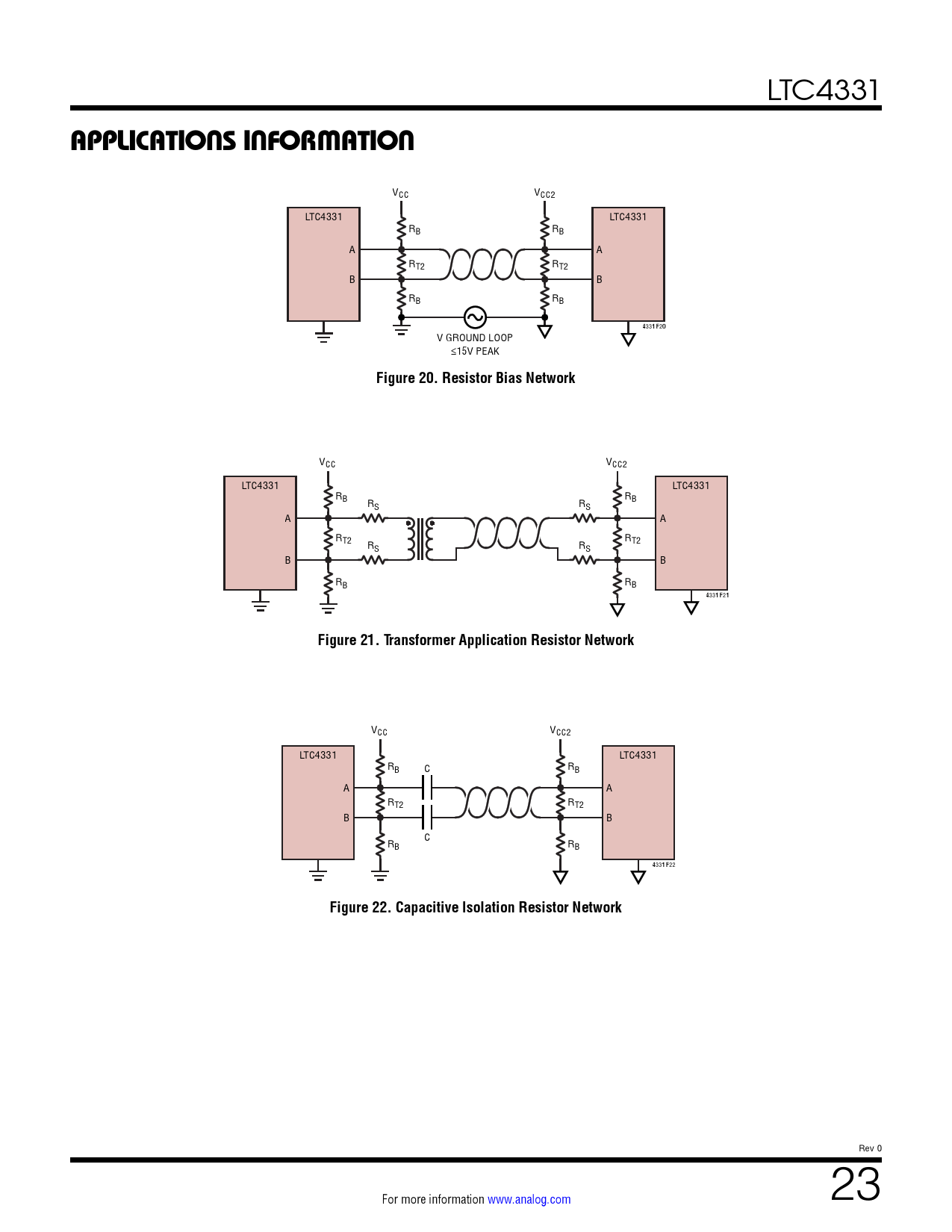

Figure 20. Resistor Bias Network. Figure 21. Transformer Application Resistor Network
Model Line for this Datasheet
Text Version of Document
LTC4331 APPLICATIONS INFORMATION VCC VCC2 LTC4331 LTC4331 RB RB A A RT2 RT2 B B RB RB 4331 F20 V GROUND LOOP ≤15V PEAK
Figure 20. Resistor Bias Network
VCC VCC2 LTC4331 LTC4331 RB RB RS RS A A RT2 RT2 RS RS B B RB RB 4331 F21
Figure 21. Transformer Application Resistor Network
VCC VCC2 LTC4331 LTC4331 RB C RB A A RT2 RT2 B B R C B RB 4331 F22
Figure 22. Capacitive Isolation Resistor Network
