Datasheet AD825 (Analog Devices) - 12
| Manufacturer | Analog Devices |
| Description | Low Cost, General-Purpose High Speed JFET Amplifier |
| Pages / Page | 12 / 12 — AD825. Data Sheet. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 (0.1890). 4.00 … |
| Revision | G |
| File Format / Size | PDF / 319 Kb |
| Document Language | English |

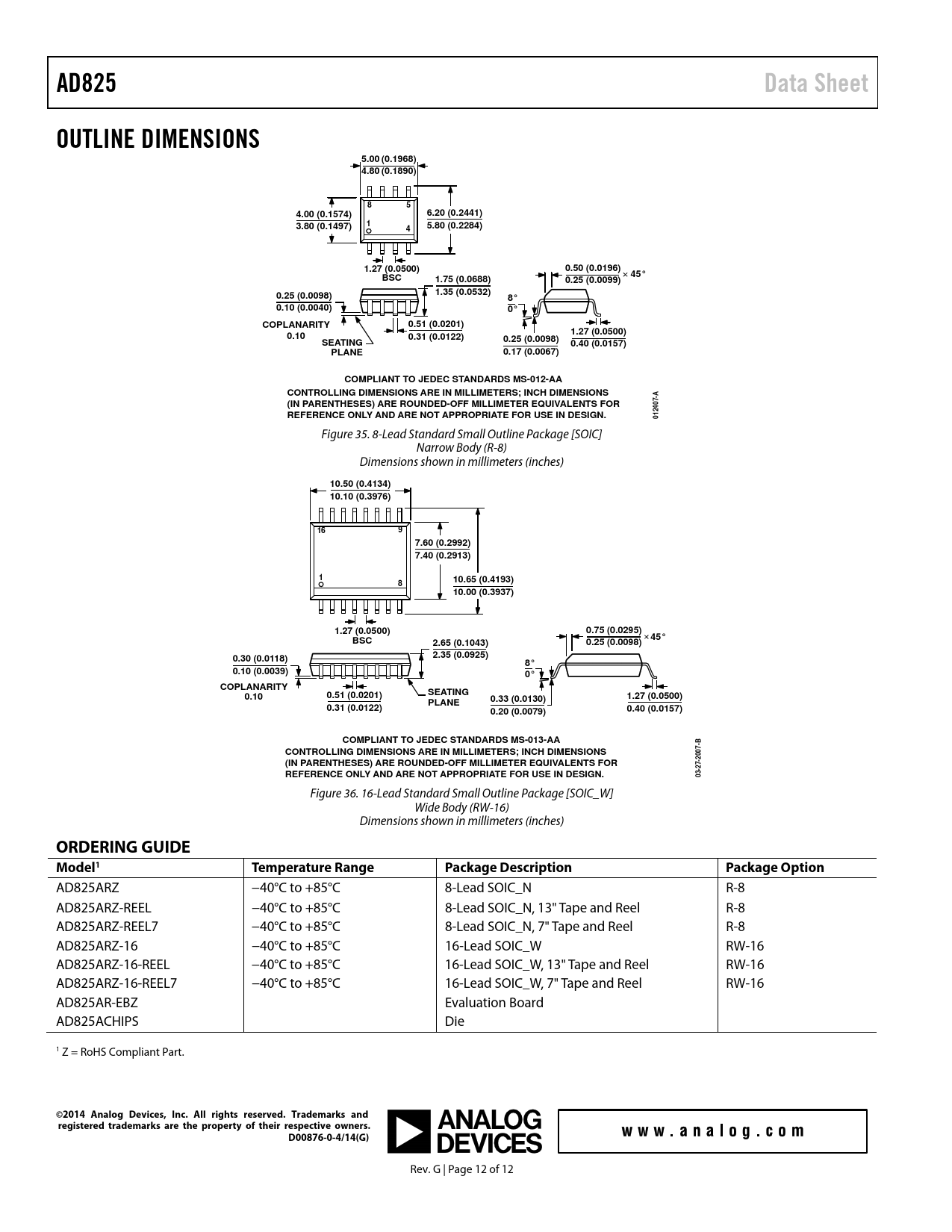

AD825. Data Sheet. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 (0.1890). 4.00 (0.1574). 6.20 (0.2441). 3.80 (0.1497). 5.80 (0.2284)
Model Line for this Datasheet
Text Version of Document
AD825 Data Sheet OUTLINE DIMENSIONS 5.00 (0.1968) 4.80 (0.1890) 8 5 4.00 (0.1574) 6.20 (0.2441) 1 3.80 (0.1497) 5.80 (0.2284) 4 1.27 (0.0500) 0.50 (0.0196) 45° BSC 1.75 (0.0688) 0.25 (0.0099) 1.35 (0.0532) 0.25 (0.0098) 8° 0.10 (0.0040) 0° COPLANARITY 0.51 (0.0201) 1.27 (0.0500) 0.10 0.31 (0.0122) 0.25 (0.0098) SEATING 0.40 (0.0157) PLANE 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AA CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS 7-A (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 1240 0
Figure 35. 8-Lead Standard Small Outline Package [SOIC] Narrow Body (R-8) Dimensions shown in millimeters (inches)
10.50 (0.4134) 10.10 (0.3976) 16 9 7.60 (0.2992) 7.40 (0.2913) 1 10.65 (0.4193) 8 10.00 (0.3937) 1.27 (0.0500) 0.75 (0.0295) 45° BSC 2.65 (0.1043) 0.25 (0.0098) 0.30 (0.0118) 2.35 (0.0925) 8° 0.10 (0.0039) 0° COPLANARITY 0.10 0.51 (0.0201) SEATING 1.27 (0.0500) 0.33 (0.0130) PLANE 0.31 (0.0122) 0.40 (0.0157) 0.20 (0.0079) COMPLIANT TO JEDEC STANDARDS MS-013-AA B CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS 007- (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR 27-2 REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 03-
Figure 36. 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16) Dimensions shown in millimeters (inches)
ORDERING GUIDE Model1 Temperature Range Package Description Package Option
AD825ARZ −40°C to +85°C 8-Lead SOIC_N R-8 AD825ARZ-REEL −40°C to +85°C 8-Lead SOIC_N, 13" Tape and Reel R-8 AD825ARZ-REEL7 −40°C to +85°C 8-Lead SOIC_N, 7" Tape and Reel R-8 AD825ARZ-16 −40°C to +85°C 16-Lead SOIC_W RW-16 AD825ARZ-16-REEL −40°C to +85°C 16-Lead SOIC_W, 13" Tape and Reel RW-16 AD825ARZ-16-REEL7 −40°C to +85°C 16-Lead SOIC_W, 7" Tape and Reel RW-16 AD825AR-EBZ Evaluation Board AD825ACHIPS Die 1 Z = RoHS Compliant Part.
©2014 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D00876-0-4/14(G)
Rev. G | Page 12 of 12 Document Outline Features Applications Connection Diagrams General Description Table of Contents Revision History Specifications Absolute Maximum Ratings Pin Configurations ESD Caution Typical Performance Characteristics Driving Capacitive Loads Theory of Operation Input Consideration Grounding and Bypassing Second-Order Low-Pass Filter Outline Dimensions Ordering Guide
