Datasheet ADL8150 (Analog Devices) - 14
| Manufacturer | Analog Devices |
| Description | GaAs, HBT, MMIC, Low Phase Noise Amplifier, 6 GHz to 14 GHz |
| Pages / Page | 15 / 14 — ADL8150. Data Sheet. APPLICATIONS INFORMATION BIASING PROCEDURES. VCC. … |
| File Format / Size | PDF / 251 Kb |
| Document Language | English |
ADL8150. Data Sheet. APPLICATIONS INFORMATION BIASING PROCEDURES. VCC. 4.7µF. 0.01µF. 10pF. GND. RFIN. 56nH. RFOUT. 0.1µF
Model Line for this Datasheet
Text Version of Document
link to page 14

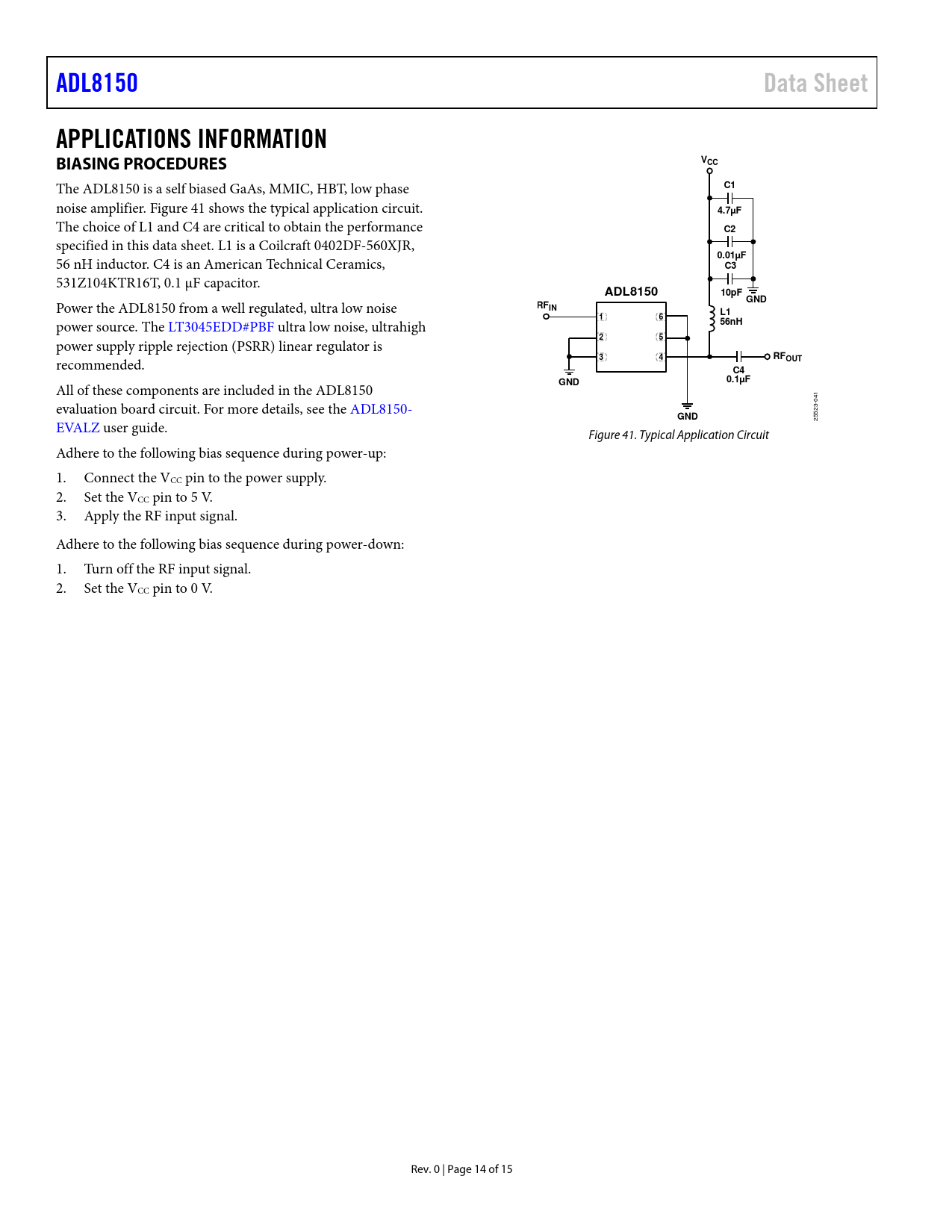

ADL8150 Data Sheet APPLICATIONS INFORMATION BIASING PROCEDURES VCC
The ADL8150 is a self biased GaAs, MMIC, HBT, low phase
C1
noise amplifier. Figure 41 shows the typical application circuit.
4.7µF
The choice of L1 and C4 are critical to obtain the performance
C2
specified in this data sheet. L1 is a Coilcraft 0402DF-560XJR, 56 nH inductor. C4 is an American Technical Ceramics,
0.01µF C3
531Z104KTR16T, 0.1 μF capacitor.
ADL8150 10pF
Power the ADL8150 from a well regulated, ultra low noise
GND RFIN L1 1 6
power source. The LT3045EDD#PBF ultra low noise, ultrahigh
56nH
power supply ripple rejection (PSRR) linear regulator is
2 5
recommended.
3 4 RFOUT C4 0.1µF
All of these components are included in the ADL8150
GND
evaluation board circuit. For more details, see the ADL8150- 041
GND
EVALZ user guide. 25523- Figure 41. Typical Application Circuit Adhere to the following bias sequence during power-up: 1. Connect the VCC pin to the power supply. 2. Set the VCC pin to 5 V. 3. Apply the RF input signal. Adhere to the following bias sequence during power-down: 1. Turn off the RF input signal. 2. Set the VCC pin to 0 V. Rev. 0 | Page 14 of 15 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Frequency Range: 6 GHz to 7 GHz Frequency Range: 7 GHz to 12 GHz Frequency Range: 12 GHz to 14 GHz Absolute Maximum Ratings Thermal Resistance Electrostatic Discharge (ESD) Ratings ESD Ratings for ADL8150 ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Biasing Procedures Outline Dimensions Ordering Guide
