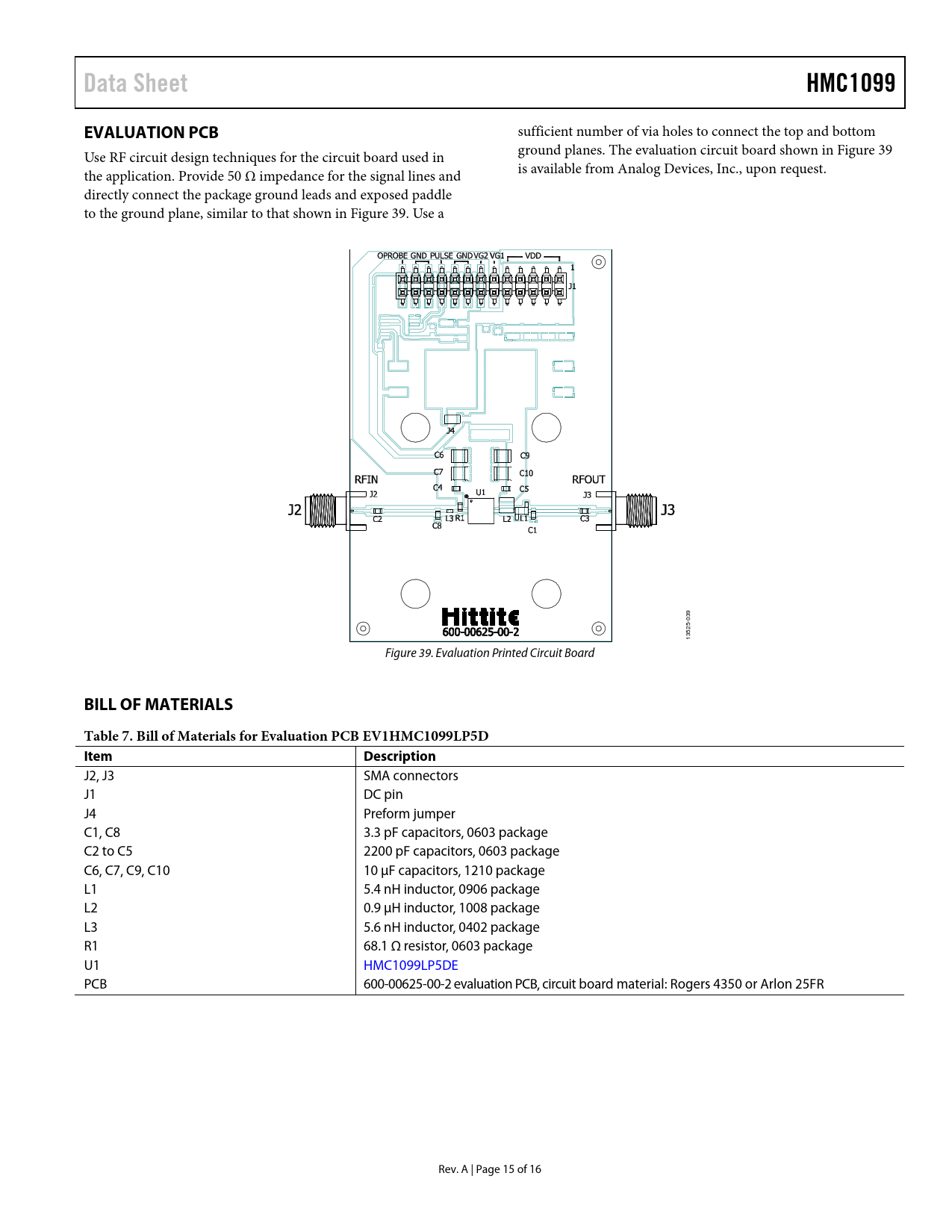

Data Sheet HMC1099 EVALUATION PCB
sufficient number of via holes to connect the top and bottom Use RF circuit design techniques for the circuit board used in ground planes. The evaluation circuit board shown in Figure 39 the application. Provide 50 Ω impedance for the signal lines and is available from Analog Devices, Inc., upon request. directly connect the package ground leads and exposed paddle to the ground plane, similar to that shown in Figure 39. Use a 39 0 5- 1352 Figure 39. Evaluation Printed Circuit Board
BILL OF MATERIALS Table 7. Bill of Materials for Evaluation PCB EV1HMC1099LP5D Item Description
J2, J3 SMA connectors J1 DC pin J4 Preform jumper C1, C8 3.3 pF capacitors, 0603 package C2 to C5 2200 pF capacitors, 0603 package C6, C7, C9, C10 10 μF capacitors, 1210 package L1 5.4 nH inductor, 0906 package L2 0.9 μH inductor, 1008 package L3 5.6 nH inductor, 0402 package R1 68.1 Ω resistor, 0603 package U1 HMC1099LP5DE PCB 600-00625-00-2 evaluation PCB, circuit board material: Rogers 4350 or Arlon 25FR Rev. A | Page 15 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS TOTAL SUPPLY CURRENT BY VDD ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION TYPICAL APPLICATION CIRCUIT EVALUATION PCB BILL OF MATERIALS OUTLINE DIMENSIONS ORDERING GUIDE
