Datasheet L6981 (STMicroelectronics) - 5
| Manufacturer | STMicroelectronics |
| Description | 38 V, 1.5 A synchronous step-down converter with low quiescent current |
| Pages / Page | 49 / 5 — L6981. Absolute maximum ratings. Table 3. Absolute maximum ratings. … |
| File Format / Size | PDF / 3.5 Mb |
| Document Language | English |

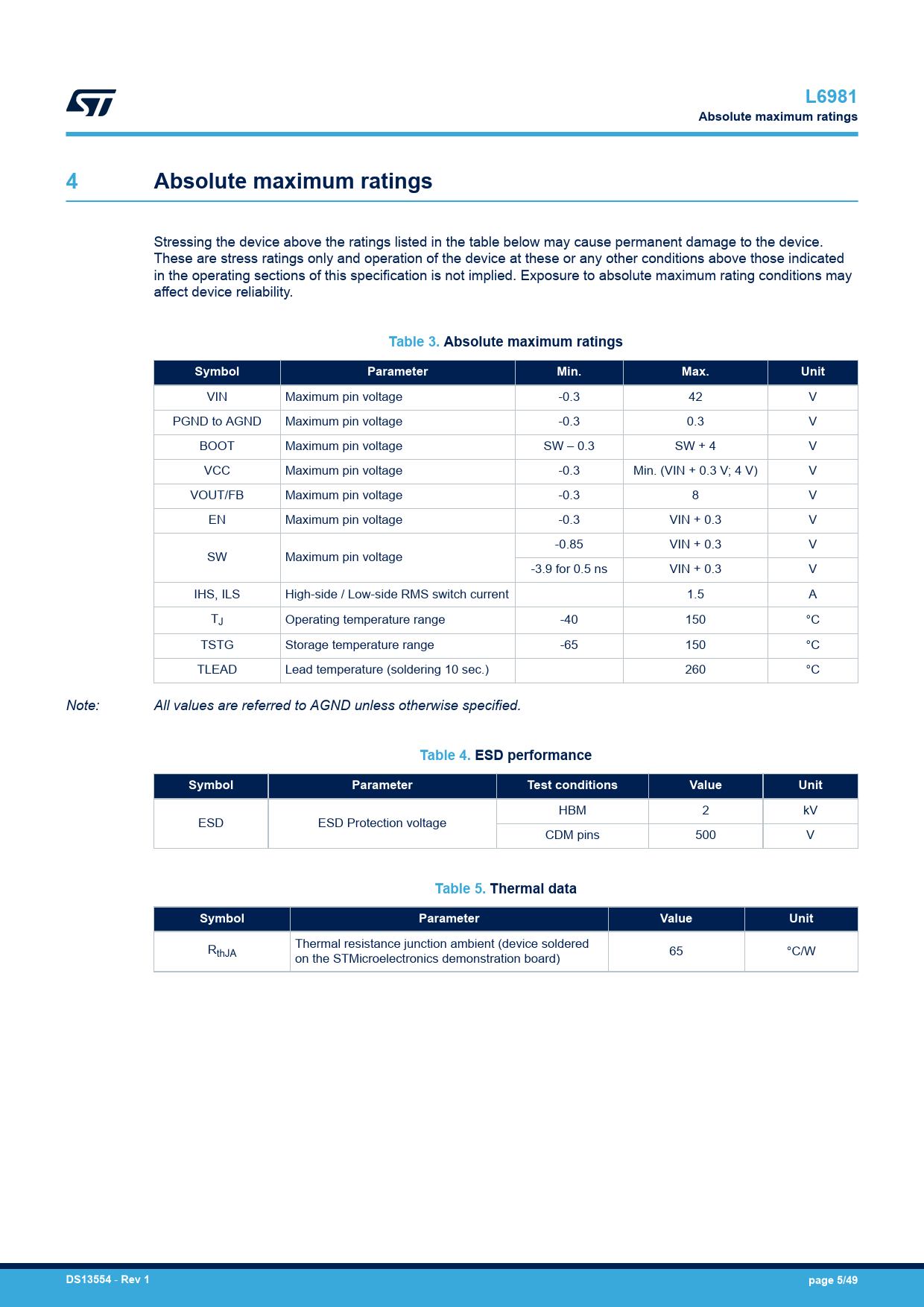

L6981. Absolute maximum ratings. Table 3. Absolute maximum ratings. Symbol. Parameter. Min. Max. Unit. Table 4. ESD performance
Model Line for this Datasheet
Text Version of Document
L6981 Absolute maximum ratings 4 Absolute maximum ratings
Stressing the device above the ratings listed in the table below may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating conditions may affect device reliability.
Table 3. Absolute maximum ratings Symbol Parameter Min. Max. Unit
VIN Maximum pin voltage -0.3 42 V PGND to AGND Maximum pin voltage -0.3 0.3 V BOOT Maximum pin voltage SW – 0.3 SW + 4 V VCC Maximum pin voltage -0.3 Min. (VIN + 0.3 V; 4 V) V VOUT/FB Maximum pin voltage -0.3 8 V EN Maximum pin voltage -0.3 VIN + 0.3 V -0.85 VIN + 0.3 V SW Maximum pin voltage -3.9 for 0.5 ns VIN + 0.3 V IHS, ILS High-side / Low-side RMS switch current 1.5 A TJ Operating temperature range -40 150 °C TSTG Storage temperature range -65 150 °C TLEAD Lead temperature (soldering 10 sec.) 260 °C Note: All values are referred to AGND unless otherwise specified.
Table 4. ESD performance Symbol Parameter Test conditions Value Unit
HBM 2 kV ESD ESD Protection voltage CDM pins 500 V
Table 5. Thermal data Symbol Parameter Value Unit
R Thermal resistance junction ambient (device soldered thJA 65 °C/W on the STMicroelectronics demonstration board)
DS13554
-
Rev 1 page 5/49
