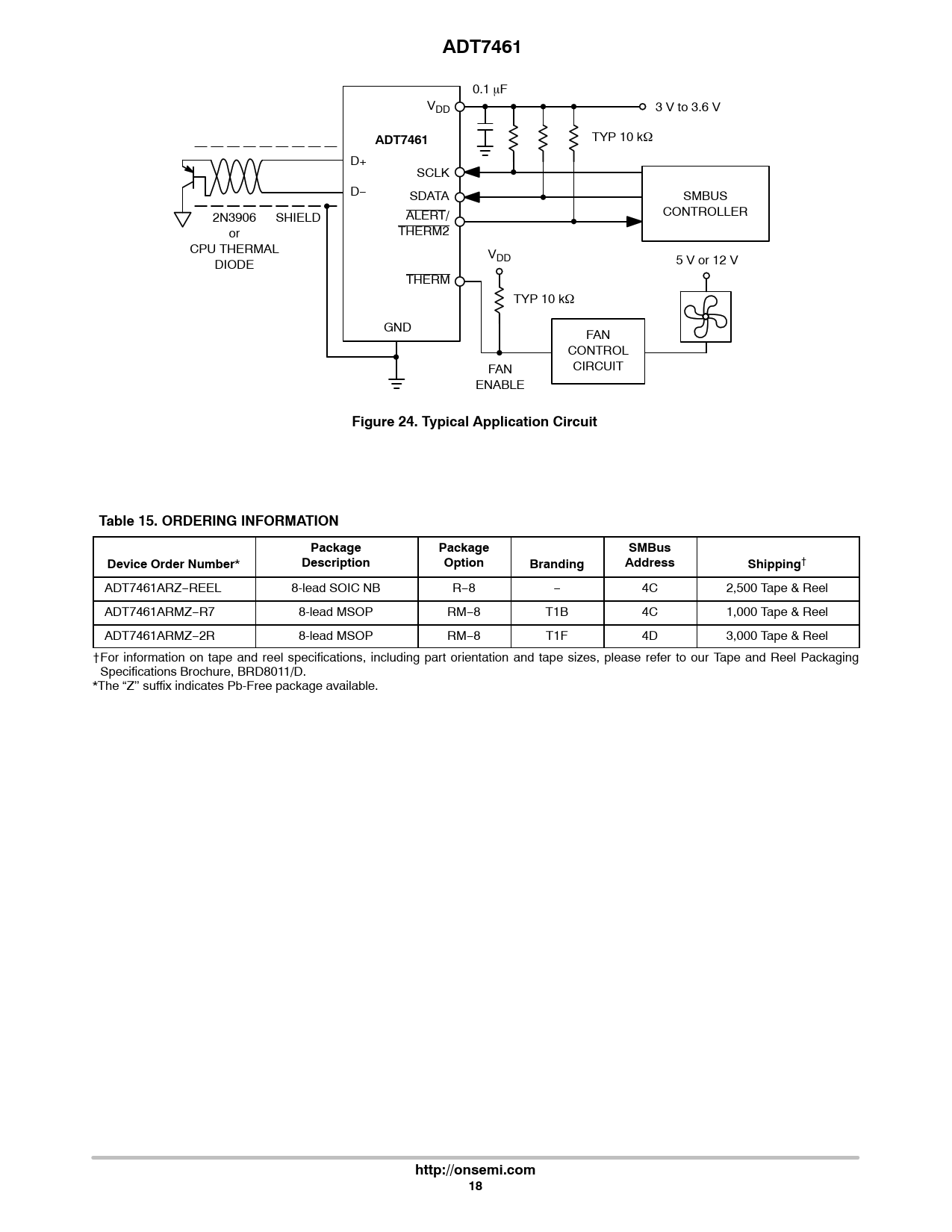

ADT7461. Figure 24. Typical Application Circuit. Table 15. ORDERING INFORMATION. Package. SMBus. Device Order Number. Description
Model Line for this Datasheet
Text Version of Document
ADT7461
0.1 mF VDD 3 V to 3.6 V TYP 10 k
ADT7461
W D+ SCLK D− SDATA SMBUS CONTROLLER 2N3906 SHIELD ALERT/ or THERM2 CPU THERMAL VDD 5 V or 12 V DIODE THERM TYP 10 kW GND FAN CONTROL FAN CIRCUIT ENABLE
Figure 24. Typical Application Circuit Table 15. ORDERING INFORMATION Package Package SMBus Device Order Number
*
Description Option Branding Address Shipping
† ADT7461ARZ−REEL 8-lead SOIC NB R−8 − 4C 2,500 Tape & Reel ADT7461ARMZ−R7 8-lead MSOP RM−8 T1B 4C 1,000 Tape & Reel ADT7461ARMZ−2R 8-lead MSOP RM−8 T1F 4D 3,000 Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *The “Z’’ suffix indicates Pb-Free package available.
http://onsemi.com 18
