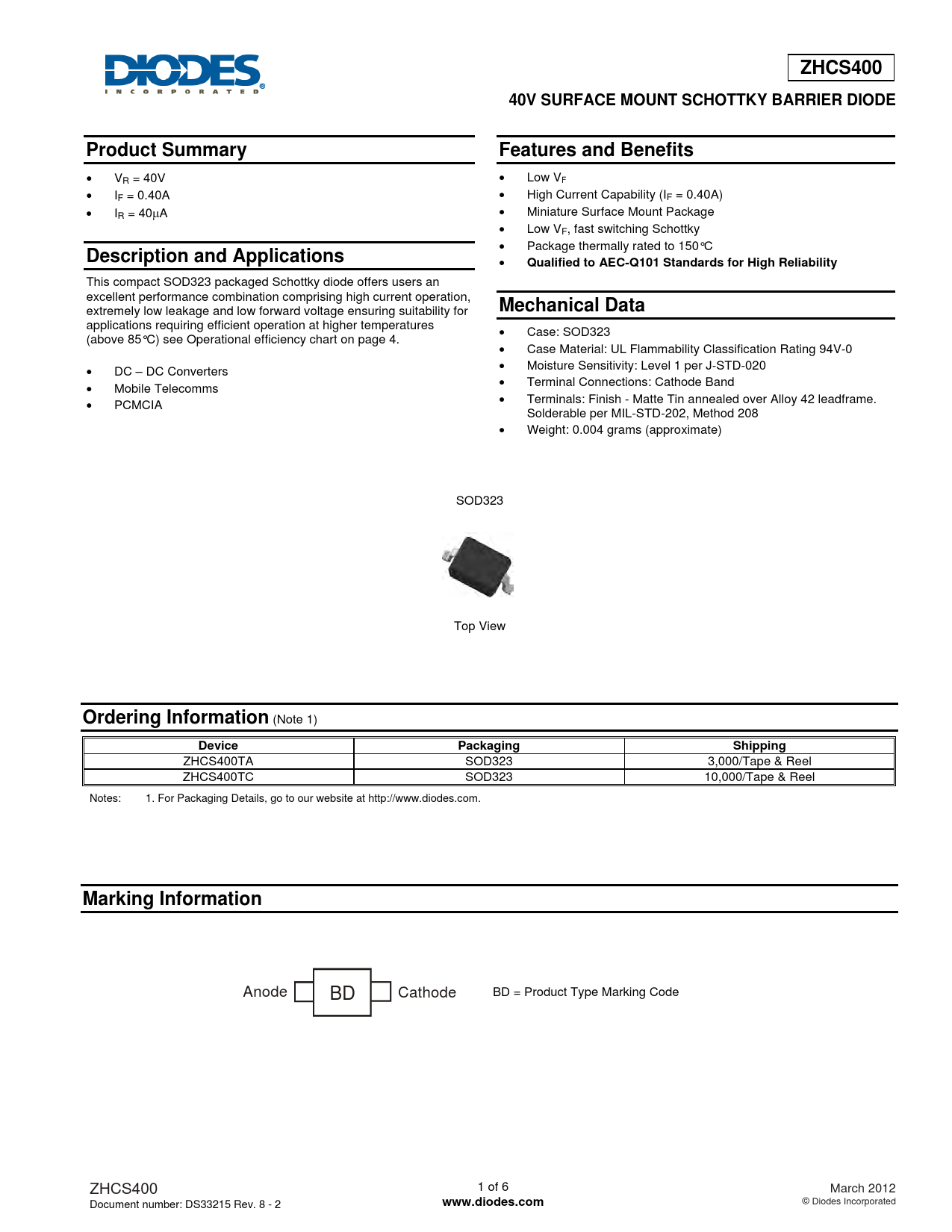

ZHCS400. 40V SURFACE MOUNT SCHOTTKY BARRIER DIODE. Product Summary. Features and Benefits. Description and Applications
Model Line for this Datasheet
Text Version of Document
ZHCS400 40V SURFACE MOUNT SCHOTTKY BARRIER DIODE Product Summary Features and Benefits
• V • R = 40V Low VF • I • F = 0.40A High Current Capability (IF = 0.40A) • I • R = 40μA
Miniature Surface Mount Package
• Low VF, fast switching Schottky • Package thermally rated to 150°C
Description and Applications
•
Qualified to AEC-Q101 Standards for High Reliability
This compact SOD323 packaged Schottky diode offers users an excellent performance combination comprising high current operation, extremely low leakage and low forward voltage ensuring suitability for
Mechanical Data
applications requiring efficient operation at higher temperatures • Case: SOD323 (above 85°C) see Operational efficiency chart on page 4. • Case Material: UL Flammability Classification Rating 94V-0 • • Moisture Sensitivity: Level 1 per J-STD-020 DC – DC Converters • • Terminal Connections: Cathode Band Mobile Telecomms • • Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. PCMCIA Solderable per MIL-STD-202, Method 208 • Weight: 0.004 grams (approximate)
SOD323
Top View
Ordering Information
(Note 1)
Device Packaging Shipping
ZHCS400TA SOD323 3,000/Tape & Reel ZHCS400TC SOD323 10,000/Tape & Reel Notes: 1. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
Anode BD = Product Type Marking Code BD Cathode
ZHCS400 1 of 6 March 2012 Document number: DS33215 Rev. 8 - 2
www.diodes.com
© Diodes Incorporated
