Data Sheet. ADG1636. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. IN1 1. 16 NIC. S1A 2. 15 NIC. D1 1. 12 EN. D1 3. 14 EN. S1B 2. 11 V. S1B 4
Model Line for this Datasheet
Text Version of Document

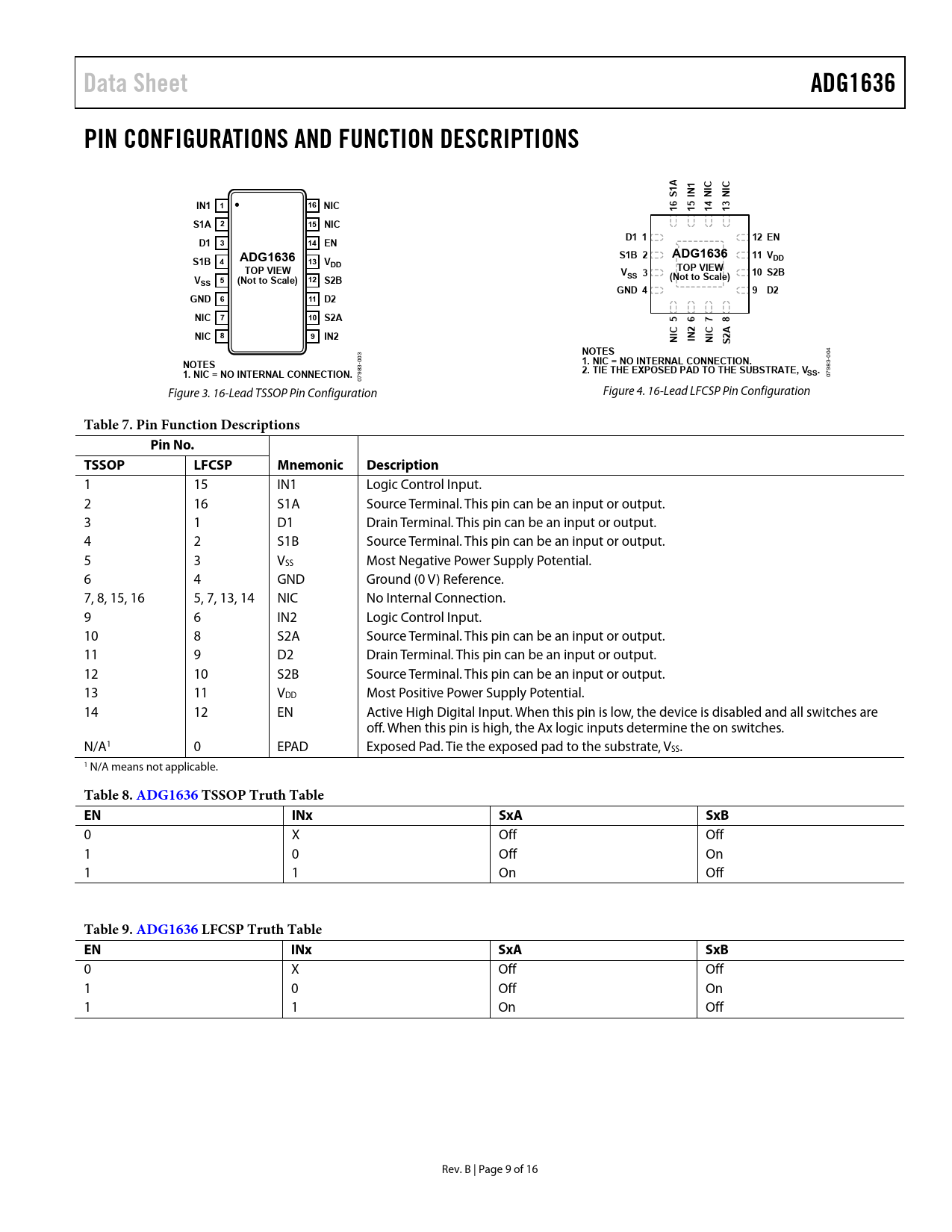

Data Sheet ADG1636 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS A 1 C C S1 IN NI NI IN1 1 16 NIC 61 51 41 31 S1A 2 15 NIC D1 1 12 EN D1 3 14 EN S1B 2 ADG1636 11 V S1B 4 ADG1636 13 V DD DD TOP VIEW V TOP VIEW 3 10 S2B V SS 5 (Not to Scale) SS (Not to Scale) 12 S2B GND 4 9 D2 GND 6 11 D2 NIC 7 10 S2A 5 6 7 8 C 2 C A NIC 8 9 IN2 NI IN NI S2
4 3
NOTES
00
NOTES
-00
1. NIC = NO INTERNAL CONNECTION.
3-
1. NIC = NO INTERNAL CONNECTION. 2. TIE THE EXPOSED PAD TO THE SUBSTRATE, V
983 798
SS.
0 07 Figure 3. 16-Lead TSSOP Pin Configuration Figure 4. 16-Lead LFCSP Pin Configuration
Table 7. Pin Function Descriptions Pin No. TSSOP LFCSP Mnemonic Description
1 15 IN1 Logic Control Input. 2 16 S1A Source Terminal. This pin can be an input or output. 3 1 D1 Drain Terminal. This pin can be an input or output. 4 2 S1B Source Terminal. This pin can be an input or output. 5 3 VSS Most Negative Power Supply Potential. 6 4 GND Ground (0 V) Reference. 7, 8, 15, 16 5, 7, 13, 14 NIC No Internal Connection. 9 6 IN2 Logic Control Input. 10 8 S2A Source Terminal. This pin can be an input or output. 11 9 D2 Drain Terminal. This pin can be an input or output. 12 10 S2B Source Terminal. This pin can be an input or output. 13 11 VDD Most Positive Power Supply Potential. 14 12 EN Active High Digital Input. When this pin is low, the device is disabled and all switches are off. When this pin is high, the Ax logic inputs determine the on switches. N/A1 0 EPAD Exposed Pad. Tie the exposed pad to the substrate, VSS. 1 N/A means not applicable.
Table 8. ADG1636 TSS OP Truth Table EN INx SxA SxB
0 X Off Off 1 0 Off On 1 1 On Off
Table 9. ADG1636 LFCSP Tru th Table EN INx SxA SxB
0 X Off Off 1 0 Off On 1 1 On Off Rev. B | Page 9 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
