Datasheet ADG1236 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Low Capacitance, Low Charge Injection, ±15 V/12 V iCMOS, Dual SPDT Switch |
| Pages / Page | 16 / 3 — Data Sheet. ADG1236. SPECIFICATIONS DUAL SUPPLY. Table 1. Y. Version. … |
| Revision | A |
| File Format / Size | PDF / 351 Kb |
| Document Language | English |
Data Sheet. ADG1236. SPECIFICATIONS DUAL SUPPLY. Table 1. Y. Version. Parameters. 25°C. −40°C to +85°C. −40°C to +125°C. Unit
Model Line for this Datasheet
Text Version of Document
link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 13 link to page 13 link to page 13 link to page 4 link to page 4 link to page 4

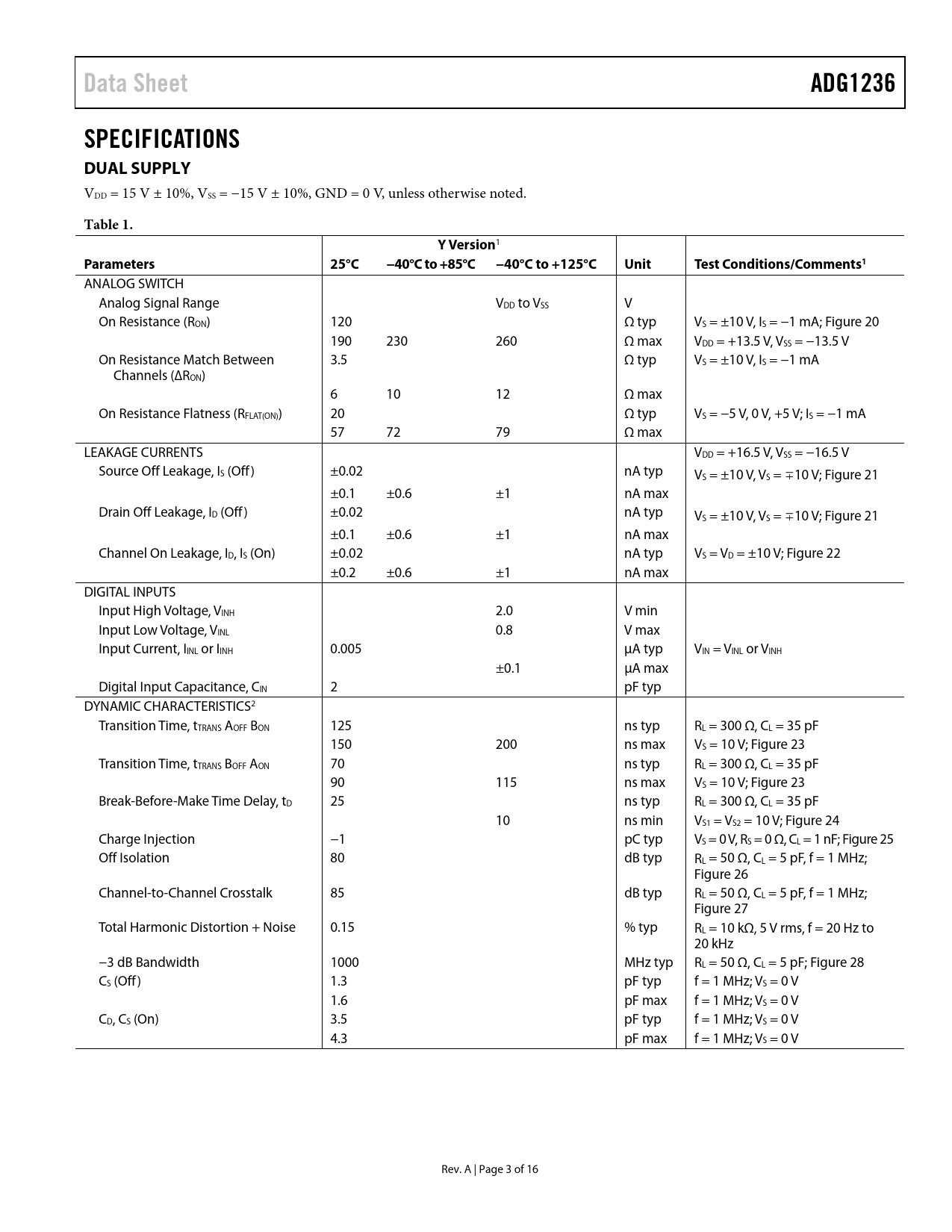

Data Sheet ADG1236 SPECIFICATIONS DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Y Version
1
Parameters 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments1
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance (RON) 120 Ω typ VS = ±10 V, IS = −1 mA; Figure 20 190 230 260 Ω max VDD = +13.5 V, VSS = −13.5 V On Resistance Match Between 3.5 Ω typ VS = ±10 V, IS = −1 mA Channels (∆RON) 6 10 12 Ω max On Resistance Flatness (RFLAT(ON)) 20 Ω typ VS = −5 V, 0 V, +5 V; IS = −1 mA 57 72 79 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off ) ±0.02 nA typ VS = ±10 V, VS = ∓10 V; Figure 21 ±0.1 ±0.6 ±1 nA max Drain Off Leakage, ID (Off ) ±0.02 nA typ VS = ±10 V, VS = ∓10 V; Figure 21 ±0.1 ±0.6 ±1 nA max Channel On Leakage, ID, IS (On) ±0.02 nA typ VS = VD = ±10 V; Figure 22 ±0.2 ±0.6 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.1 μA max Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS2 Transition Time, tTRANS AOFF BON 125 ns typ RL = 300 Ω, CL = 35 pF 150 200 ns max VS = 10 V; Figure 23 Transition Time, tTRANS BOFF AON 70 ns typ RL = 300 Ω, CL = 35 pF 90 115 ns max VS = 10 V; Figure 23 Break-Before-Make Time Delay, tD 25 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 10 V; Figure 24 Charge Injection −1 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; Figure 25 Off Isolation 80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; Figure 26 Channel-to-Channel Crosstalk 85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; Figure 27 Total Harmonic Distortion + Noise 0.15 % typ RL = 10 kΩ, 5 V rms, f = 20 Hz to 20 kHz −3 dB Bandwidth 1000 MHz typ RL = 50 Ω, CL = 5 pF; Figure 28 CS (Off ) 1.3 pF typ f = 1 MHz; VS = 0 V 1.6 pF max f = 1 MHz; VS = 0 V CD, CS (On) 3.5 pF typ f = 1 MHz; VS = 0 V 4.3 pF max f = 1 MHz; VS = 0 V Rev. A | Page 3 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION TRUTH TABLE FOR SWITCHES PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADG1236 SPECIFICATIONS DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Y Version
1
Parameters 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments1
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance (RON) 120 Ω typ VS = ±10 V, IS = −1 mA; Figure 20 190 230 260 Ω max VDD = +13.5 V, VSS = −13.5 V On Resistance Match Between 3.5 Ω typ VS = ±10 V, IS = −1 mA Channels (∆RON) 6 10 12 Ω max On Resistance Flatness (RFLAT(ON)) 20 Ω typ VS = −5 V, 0 V, +5 V; IS = −1 mA 57 72 79 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off ) ±0.02 nA typ VS = ±10 V, VS = ∓10 V; Figure 21 ±0.1 ±0.6 ±1 nA max Drain Off Leakage, ID (Off ) ±0.02 nA typ VS = ±10 V, VS = ∓10 V; Figure 21 ±0.1 ±0.6 ±1 nA max Channel On Leakage, ID, IS (On) ±0.02 nA typ VS = VD = ±10 V; Figure 22 ±0.2 ±0.6 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 μA typ VIN = VINL or VINH ±0.1 μA max Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS2 Transition Time, tTRANS AOFF BON 125 ns typ RL = 300 Ω, CL = 35 pF 150 200 ns max VS = 10 V; Figure 23 Transition Time, tTRANS BOFF AON 70 ns typ RL = 300 Ω, CL = 35 pF 90 115 ns max VS = 10 V; Figure 23 Break-Before-Make Time Delay, tD 25 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 10 V; Figure 24 Charge Injection −1 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; Figure 25 Off Isolation 80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; Figure 26 Channel-to-Channel Crosstalk 85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; Figure 27 Total Harmonic Distortion + Noise 0.15 % typ RL = 10 kΩ, 5 V rms, f = 20 Hz to 20 kHz −3 dB Bandwidth 1000 MHz typ RL = 50 Ω, CL = 5 pF; Figure 28 CS (Off ) 1.3 pF typ f = 1 MHz; VS = 0 V 1.6 pF max f = 1 MHz; VS = 0 V CD, CS (On) 3.5 pF typ f = 1 MHz; VS = 0 V 4.3 pF max f = 1 MHz; VS = 0 V Rev. A | Page 3 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION TRUTH TABLE FOR SWITCHES PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
