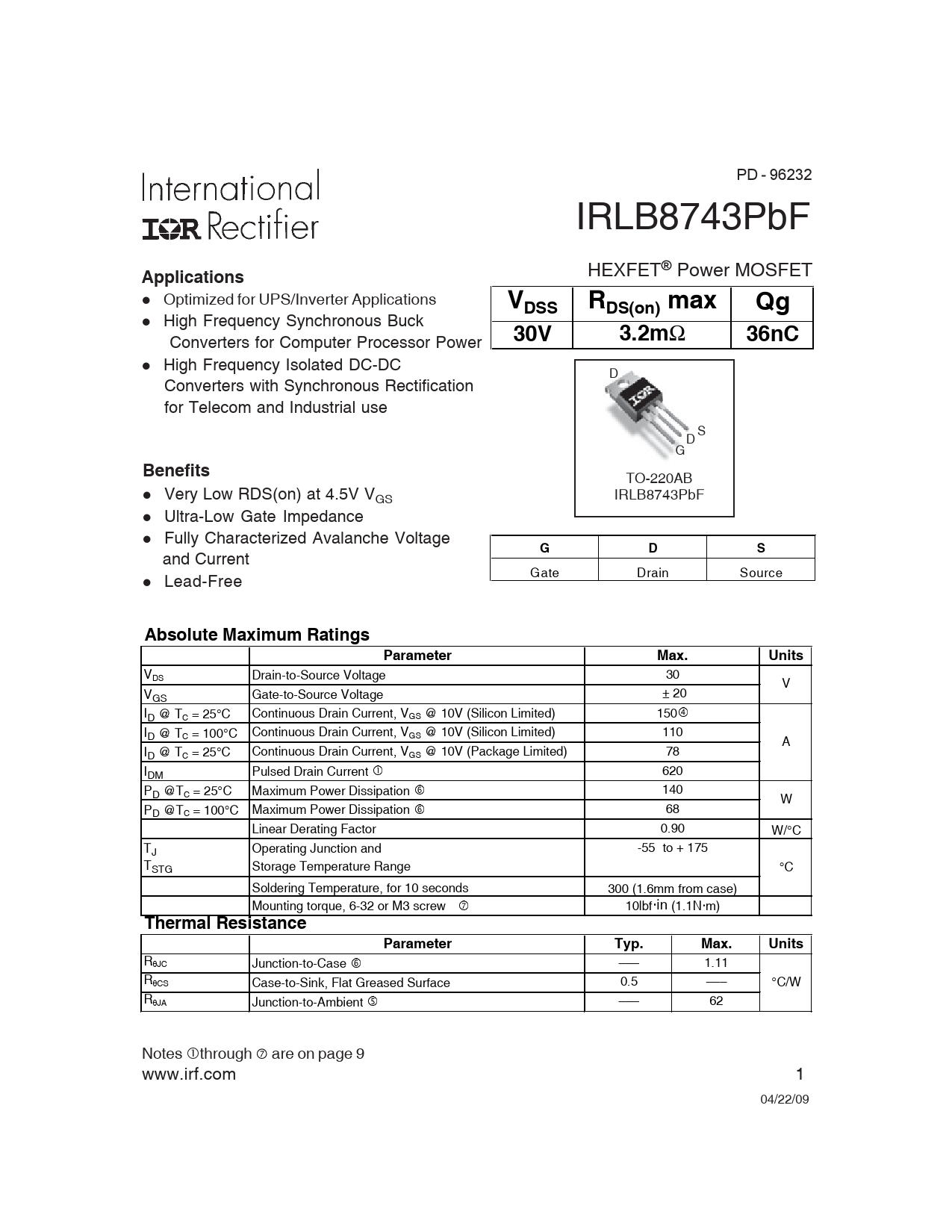

PD - 96232 IRLB8743PbF HEXFET®
Applications
Power MOSFET l Optimized for UPS/Inverter Applications
VDSS RDS(on) max Qg
l High Frequency Synchronous Buck Converters for Computer Processor Power
30V 3.2m
Ω
36nC
l High Frequency Isolated DC-DC D Converters with Synchronous Rectification for Telecom and Industrial use S D G
Benefits
TO-220AB l Very Low RDS(on) at 4.5V VGS IRLB8743PbF l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage
G D S
and Current Gate Drain Source l Lead-Free
Absolute Maximum Ratings Parameter Max. Units
VDS Drain-to-Source Voltage 30 V VGS Gate-to-Source Voltage ± 20 ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Silicon Limited) 150f ID @ TC = 100°C Continuous Drain Current, VGS @ 10V (Silicon Limited) 110 A ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Package Limited) 78 IDM Pulsed Drain Current c 620 PD @TC = 25°C Maximum Power Dissipation h 140 W PD @TC = 100°C Maximum Power Dissipation h 68 Linear Derating Factor 0.90 W/°C TJ Operating Junction and -55 to + 175 TSTG Storage Temperature Range °C Soldering Temperature, for 10 seconds 300 (1.6mm from case) Mounting torque, 6-32 or M3 screwi 10lbfxin (1.1Nxm)
Thermal Resistance Parameter Typ. Max. Units
RθJC Junction-to-Case h ––– 1.11 RθCS Case-to-Sink, Flat Greased Surface 0.5 ––– °C/W RθJA Junction-to-Ambient g ––– 62 Notes through are on page 9 www.irf.com 1 04/22/09
