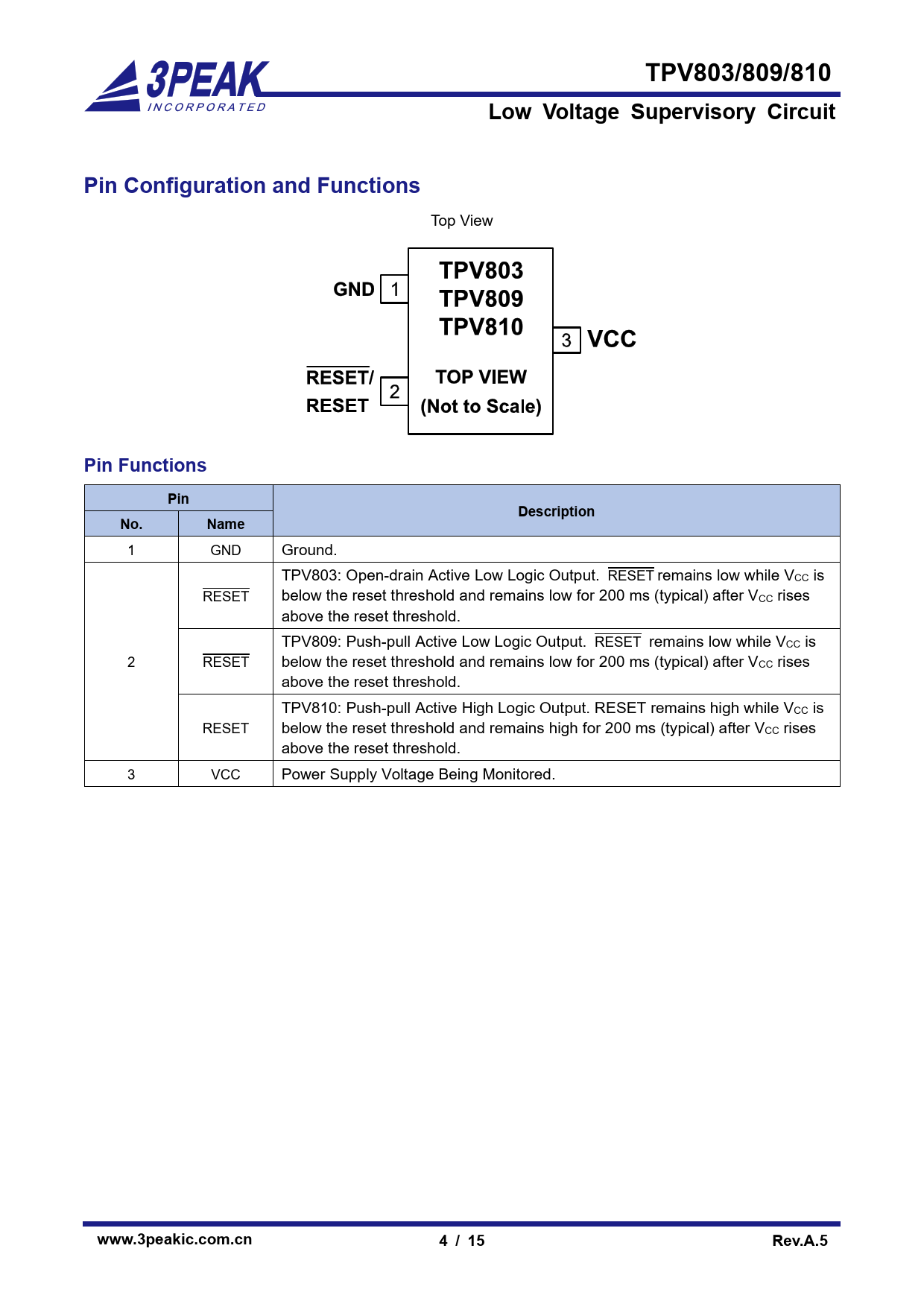

TPV803/809/810. Low Voltage Supervisory Circuit. Pin Configuration and Functions. Pin Functions. Pin. Description. No. Name
Model Line for this Datasheet
- TPV803L-3STR TPV803L-3TR TPV803M-3STR TPV803M-3TR TPV803R-3STR TPV803R-3TR TPV803S-3STR TPV803S-3TR TPV803T-3STR TPV803T-3TR TPV803V-3STR TPV803V-3TR TPV803W-3STR TPV803W-3TR TPV803Y-3STR TPV803Y-3TR TPV803Z-3STR TPV803Z-3TR
Text Version of Document
TPV803/809/810 Low Voltage Supervisory Circuit Pin Configuration and Functions
Top View
Pin Functions Pin Description No. Name
1 GND Ground. TPV803: Open-drain Active Low Logic Output. RESET remains low while VCC is RESET below the reset threshold and remains low for 200 ms (typical) after VCC rises above the reset threshold. TPV809: Push-pull Active Low Logic Output. RESET remains low while VCC is 2 RESET below the reset threshold and remains low for 200 ms (typical) after VCC rises above the reset threshold. TPV810: Push-pull Active High Logic Output. RESET remains high while VCC is RESET below the reset threshold and remains high for 200 ms (typical) after VCC rises above the reset threshold. 3 VCC Power Supply Voltage Being Monitored.
