Datasheet BAT85 (NXP) - 2
| Manufacturer | NXP |
| Description | Schottky Barrier Single Diode |
| Pages / Page | 8 / 2 — Nexperia. BAT85. Schottky barrier single diode. 3. Ordering information. … |
| File Format / Size | PDF / 2.1 Mb |
| Document Language | English |
Nexperia. BAT85. Schottky barrier single diode. 3. Ordering information. Table 3. Ordering information. Type number. Package Name
Model Line for this Datasheet
Text Version of Document
link to page 2

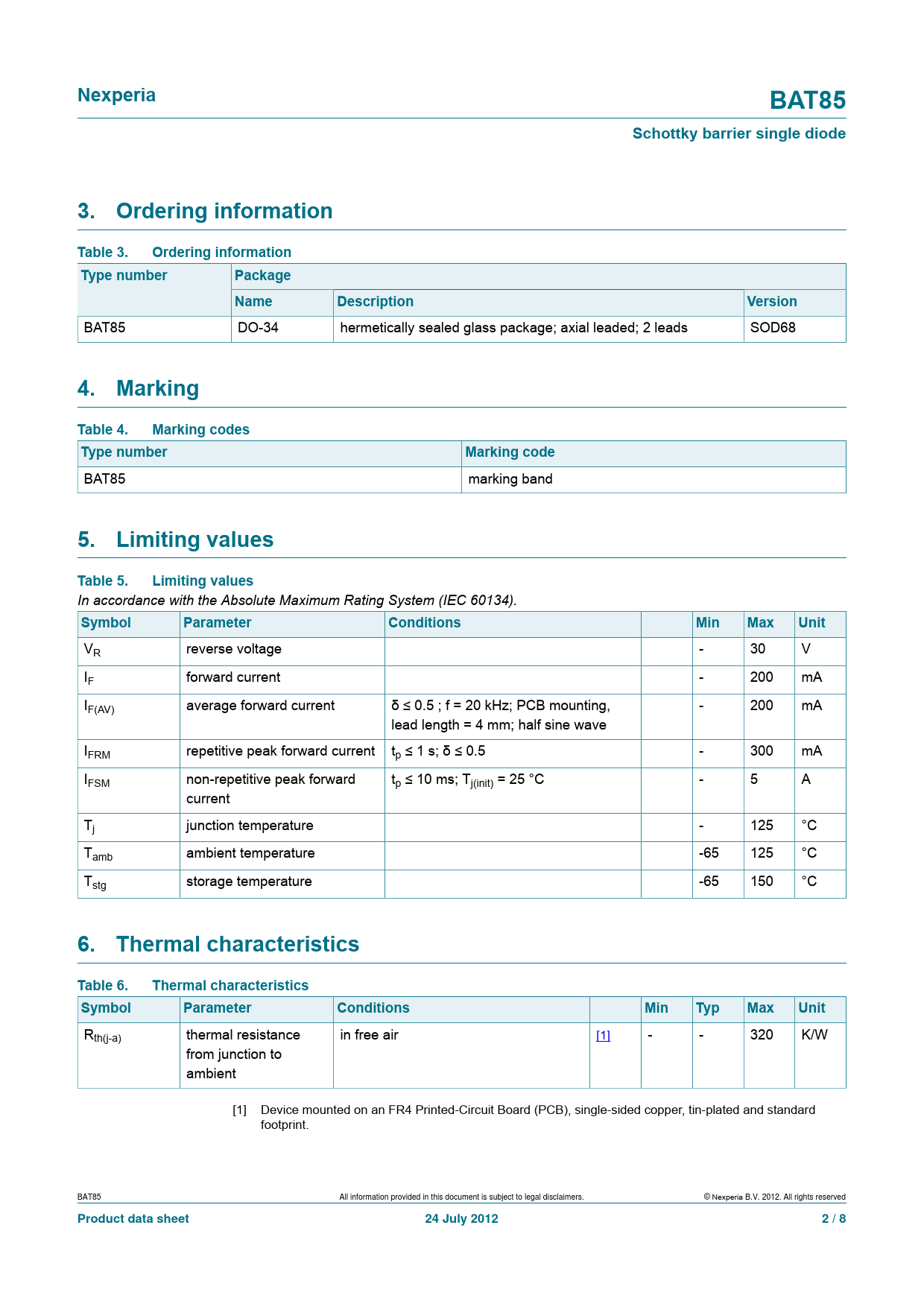

Nexperia BAT85 Schottky barrier single diode 3. Ordering information Table 3. Ordering information Type number Package Name Description Version
BAT85 DO-34 hermetically sealed glass package; axial leaded; 2 leads SOD68
4. Marking Table 4. Marking codes Type number Marking code
BAT85 marking band
5. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VR reverse voltage - 30 V IF forward current - 200 mA IF(AV) average forward current δ ≤ 0.5 ; f = 20 kHz; PCB mounting, - 200 mA lead length = 4 mm; half sine wave IFRM repetitive peak forward current tp ≤ 1 s; δ ≤ 0.5 - 300 mA IFSM non-repetitive peak forward tp ≤ 10 ms; Tj(init) = 25 °C - 5 A current Tj junction temperature - 125 °C Tamb ambient temperature -65 125 °C Tstg storage temperature -65 150 °C
6. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance in free air [1] - - 320 K/W from junction to ambient [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. BAT85 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2012. All rights reserved
Product data sheet 24 July 2012 2 / 8
