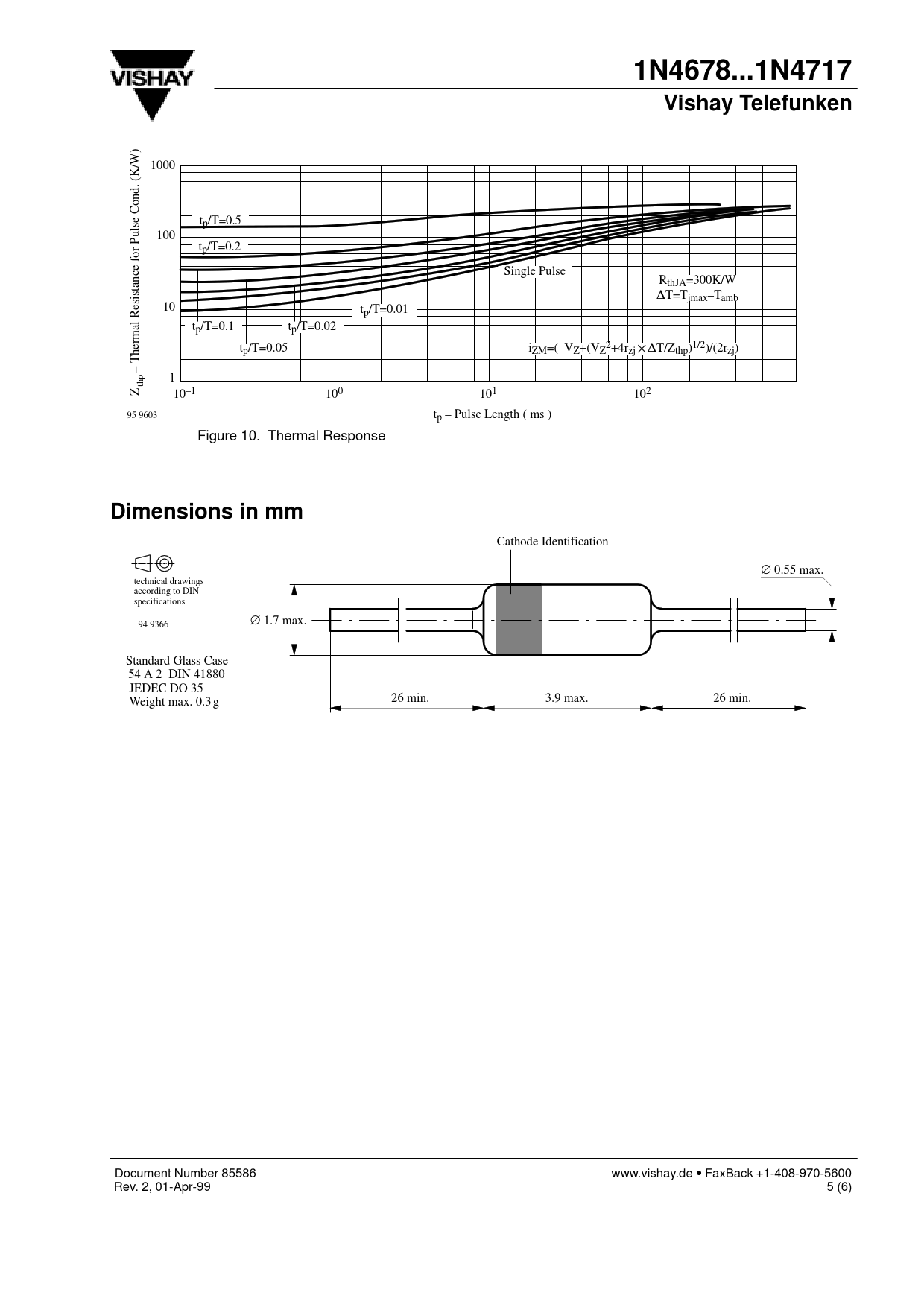

1N4678...1N4717 Vishay Telefunken
1000 tp/T=0.5 100 tp/T=0.2 Single Pulse RthJA=300K/W DT=Tjmax–Tamb 10 tp/T=0.01 tp/T=0.1 tp/T=0.02 t 2 p/T=0.05 iZM=(–VZ+(VZ +4rzjDT/Zthp)1/2)/(2rzj) Thermal Resistance for Pulse Cond. (K/W) 1 thp Z – 10–1 100 101 102 95 9603 tp – Pulse Length ( ms ) Figure 10. Thermal Response
Dimensions in mm
Cathode Identification ∅ 0.55 max. technical drawings according to DIN specifications 94 9366 ∅ 1.7 max. Standard Glass Case 54 A 2 DIN 41880 JEDEC DO 35 26 min. 3.9 max. Weight max. 0.3 g 26 min. Document Number 85586 www.vishay.de • FaxBack +1-408-970-5600 Rev. 2, 01-Apr-99 5 (6)
