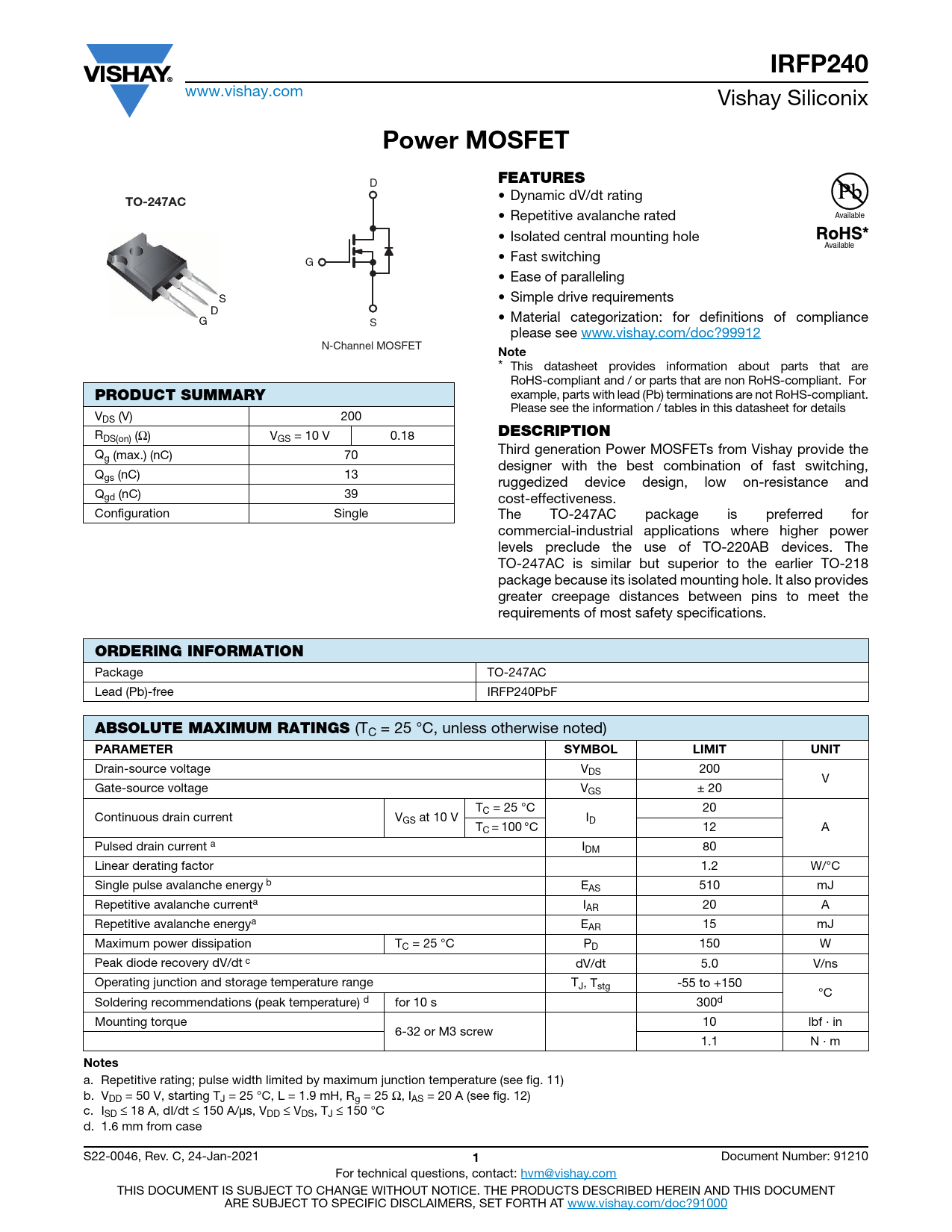

IRFP240. Power MOSFET. FEATURES. TO-247AC. Note. PRODUCT SUMMARY. DESCRIPTION. ORDERING INFORMATION. ABSOLUTE MAXIMUM RATINGS
Model Line for this Datasheet
Text Version of Document
IRFP240
www.vishay.com Vishay Siliconix
Power MOSFET
D
FEATURES
• Dynamic dV/dt rating
TO-247AC
• Repetitive avalanche rated Available • Isolated central mounting hole Available • Fast switching G • Ease of paralleling S • Simple drive requirements D • Material categorization: for definitions of compliance G S please see www.vishay.com/doc?99912 N-Channel MOSFET
Note
* This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant.
PRODUCT SUMMARY
Please see the information / tables in this datasheet for details VDS (V) 200 R
DESCRIPTION
DS(on) (Ω) VGS = 10 V 0.18 Third generation Power MOSFETs from Vishay provide the Qg (max.) (nC) 70 designer with the best combination of fast switching, Qgs (nC) 13 ruggedized device design, low on-resistance and Qgd (nC) 39 cost-effectiveness. Configuration Single The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because its isolated mounting hole. It also provides greater creepage distances between pins to meet the requirements of most safety specifications.
ORDERING INFORMATION
Package TO-247AC Lead (Pb)-free IRFP240PbF
ABSOLUTE MAXIMUM RATINGS
(TC = 25 °C, unless otherwise noted)
PARAMETER SYMBOL LIMIT UNIT
Drain-source voltage VDS 200 V Gate-source voltage VGS ± 20 TC = 25 °C 20 Continuous drain current VGS at 10 V ID TC = 100 °C 12 A Pulsed drain current a IDM 80 Linear derating factor 1.2 W/°C Single pulse avalanche energy b EAS 510 mJ Repetitive avalanche currenta IAR 20 A Repetitive avalanche energya EAR 15 mJ Maximum power dissipation TC = 25 °C PD 150 W Peak diode recovery dV/dt c dV/dt 5.0 V/ns Operating junction and storage temperature range TJ, Tstg -55 to +150 °C Soldering recommendations (peak temperature) d for 10 s 300d Mounting torque 10 lbf · in 6-32 or M3 screw 1.1 N · m
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11) b. VDD = 50 V, starting TJ = 25 °C, L = 1.9 mH, Rg = 25 Ω, IAS = 20 A (see fig. 12) c. ISD ≤ 18 A, dI/dt ≤ 150 A/μs, VDD ≤ VDS, TJ ≤ 150 °C d. 1.6 mm from case S22-0046, Rev. C, 24-Jan-2021
