Datasheet DS1801 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | Dual Audio Taper Potentiometer |
| Pages / Page | 10 / 10 — DIGITAL OUTPUT LOAD. INTERNAL GROUND CONNECTIONS. NOTE:. DS1801 ORDERING … |
| File Format / Size | PDF / 235 Kb |
| Document Language | English |

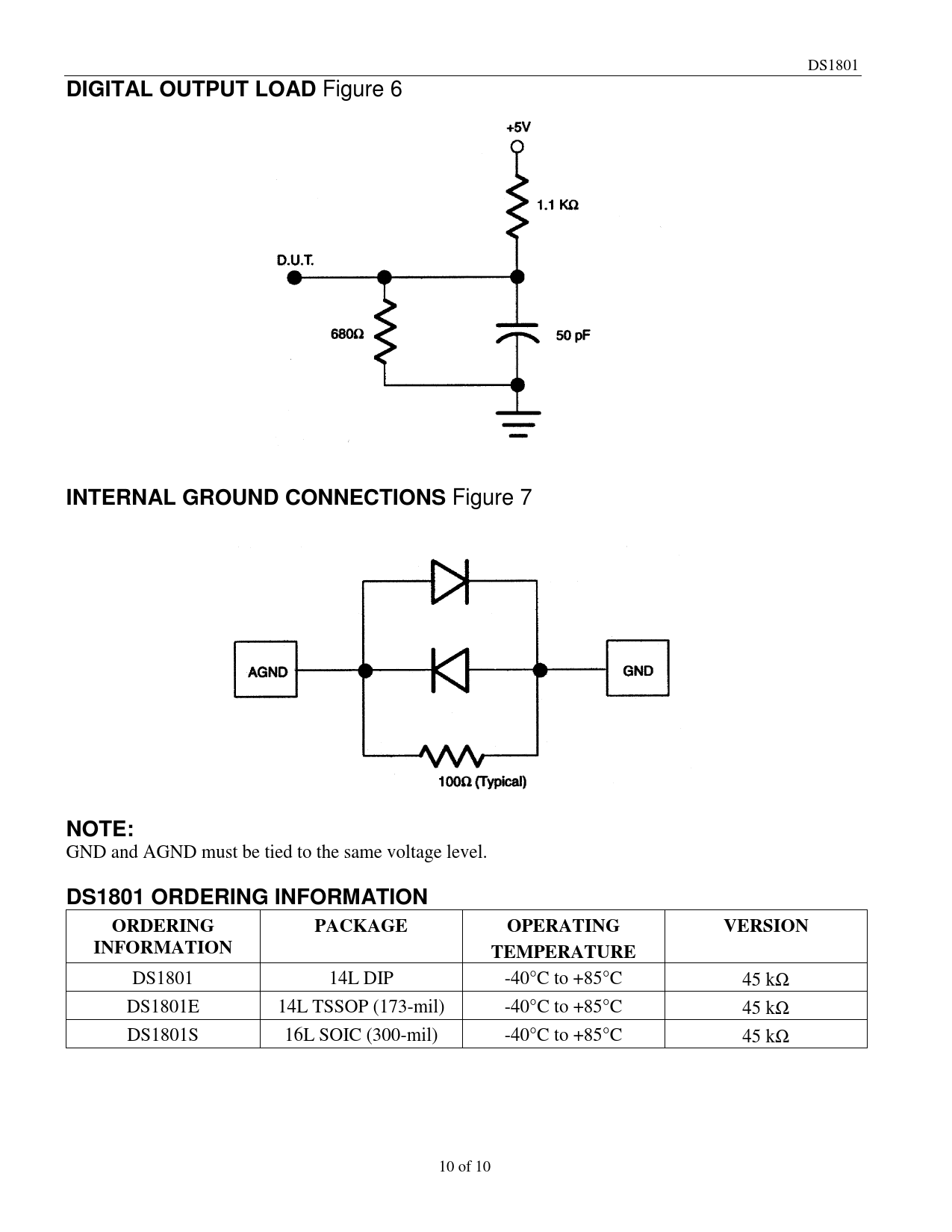

DIGITAL OUTPUT LOAD. INTERNAL GROUND CONNECTIONS. NOTE:. DS1801 ORDERING INFORMATION. ORDERING. PACKAGE. OPERATING. VERSION
Model Line for this Datasheet
Text Version of Document
DS1801
DIGITAL OUTPUT LOAD
Figure 6
INTERNAL GROUND CONNECTIONS
Figure 7
NOTE:
GND and AGND must be tied to the same voltage level.
DS1801 ORDERING INFORMATION ORDERING PACKAGE OPERATING VERSION INFORMATION TEMPERATURE
DS1801 14L DIP -40°C to +85°C 45 kΩ DS1801E 14L TSSOP (173-mil) -40°C to +85°C 45 kΩ DS1801S 16L SOIC (300-mil) -40°C to +85°C 45 kΩ 10 of 10
