Datasheet NC7SP04 (ON Semiconductor) - 4
| Manufacturer | ON Semiconductor |
| Description | TinyLogic ULP-A Inverter |
| Pages / Page | 10 / 4 — NC7SP04. AC ELECTRICAL CHARACTERISTICS. TA = 25. TA = −40. C to +85. … |
| File Format / Size | PDF / 345 Kb |
| Document Language | English |
NC7SP04. AC ELECTRICAL CHARACTERISTICS. TA = 25. TA = −40. C to +85. Symbol. Parameter. Condition. VCC (V). Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 5 link to page 4 link to page 5 link to page 4 link to page 5 link to page 4
NC7SP04 AC ELECTRICAL CHARACTERISTICS
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ
TA = 25
°
C TA = −40
5
C to +85
5
C
ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ ÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎÎ ÎÎÎ
Symbol Parameter Condition VCC (V) Min Typ Max Min Max
ÎÎÎ ÎÎÎ ÎÎÎ ÎÎÎÎ ÎÎÎ
Unit
ÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎÎ ÎÎÎ tPLH, tPHL Propagation Delay, RL = 1 MW, CL = 10 pF 0.9 − 52.2 − − − ns ÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎÎÎ ÎÎÎÎÎ ÎÎÎ ÎÎÎ ÎÎÎ ÎÎÎÎ ÎÎÎ ÎÎÎ A to Y (Figures 3 and 4) 1.10 to 1.30 − 13.8 29.9 − 34.3 1.40 to 1.60 − 7.3 14.8 − 15.0 1.65 to 1.95 − 5.4 12.0 − 12.2 2.3 to 2.7 − 3.5 9.4 − 9.9 3.0 to 3.6 − 2.9 8.3 − 9.0 tPLH, tPHL Propagation Delay, RL = 1 MW, CL = 15 pF 0.9 − 52.9 − − − ns A to Y (Figures 3 and 4) 1.10 to 1.30 − 14.1 30.4 − 37.3 1.40 to 1.60 − 7.5 15.5 − 16.5 1.65 to 1.95 − 5.5 12.6 − 13.6 2.3 to 2.7 − 3.6 9.9 − 10.8 3.0 to 3.6 − 3.0 8.7 − 9.5 tPLH, tPHL Propagation Delay, RL = 1 MW, CL = 30 pF 0.9 − 54.8 − − − ns A to Y (Figures 3 and 4) 1.10 to 1.30 − 15.0 31.8 − 46.3 1.40 to 1.60 − 8.2 17.8 − 18.2 1.65 to 1.95 − 6.1 14.4 − 15.9 2.3 to 2.7 − 3.9 11.3 − 12.8 3.0 to 3.6 − 3.3 9.2 − 10.7
CAPACITIVE CHARACTERISTICS Symbol Parameter Test Condition Typical (TA = 25
°
C) Unit
CIN Input Capacitance VCC = 0 V 2.0 pF CPD Power Dissipation Capacitance (Note 5) f = 10 MHz, VCC = 0.9 to 3.6 V, VIN = 0 V or VCC 8.0 pF 5. CPD is defined as the value of the internal equivalent capacitance which is calculated from the operating current consumption without load. Average operating current can be obtained by the equation ICC(OPR) = CPD VCC fin + ICC. CPD is used to determine the no−load dynamic power consumption: P 2 D = CPD VCC fin + ICC VCC. OPEN
Test Switch Position
2 x VCC GND tPLH / tPHL Open tPLZ / tPZL 2 x VCC R1 INPUT tPHZ / tPZH GND DUT OUTPUT RT RL CL* CL includes probe and jig capacitance RT is ZOUT of pulse generator (typically 50 W) f = 1 MHz

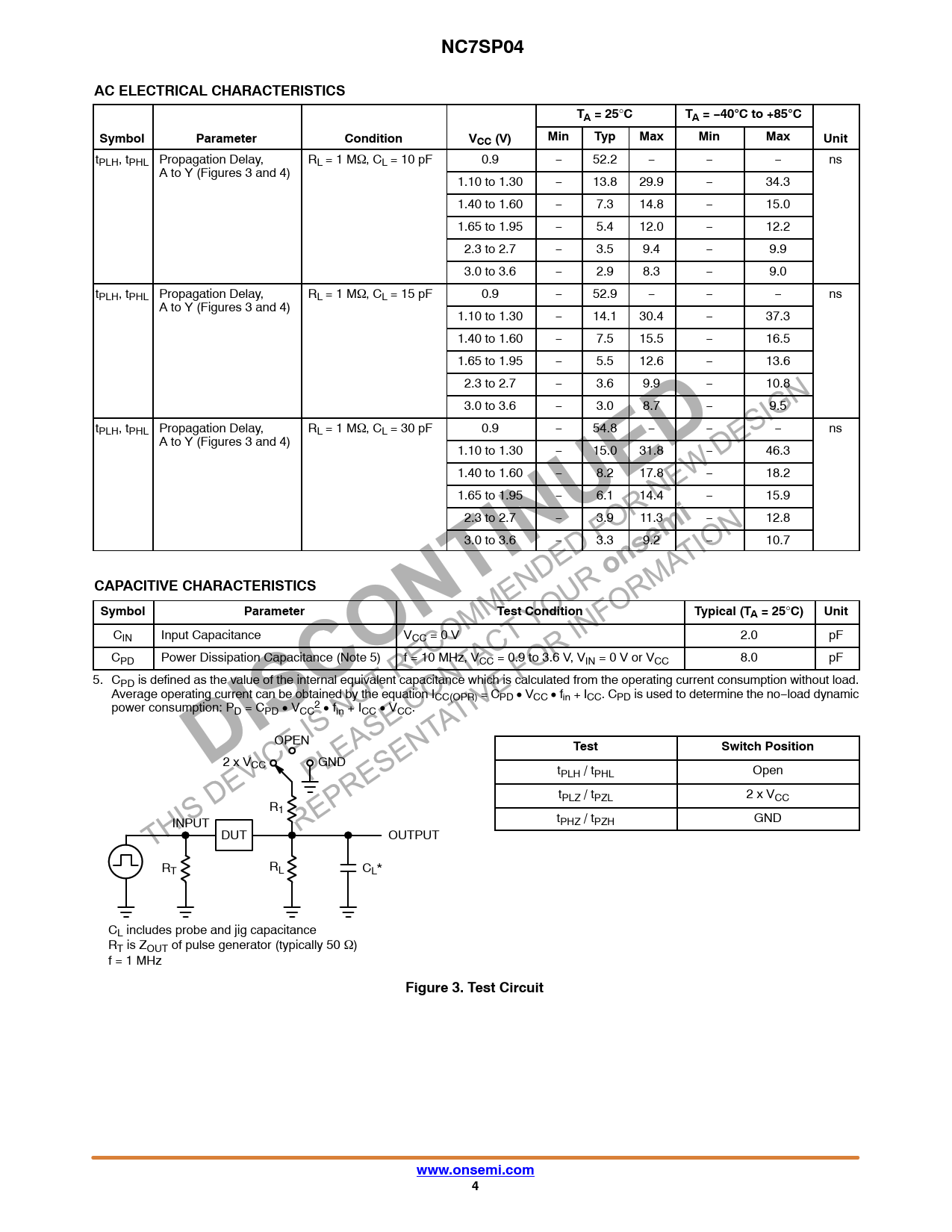

Figure 3. Test Circuit www.onsemi.com 4
