Datasheet BIDD05N60T (Bourns) - 4
| Manufacturer | Bourns |
| Description | Insulated Gate Bipolar Transistor (IGBT) |
| Pages / Page | 10 / 4 — BIDD05N60T Insulated Gate Bipolar Transistor (IGBT). Electrical … |
| File Format / Size | PDF / 250 Kb |
| Document Language | English |
BIDD05N60T Insulated Gate Bipolar Transistor (IGBT). Electrical Characteristic Performance (continued)
Model Line for this Datasheet
Text Version of Document

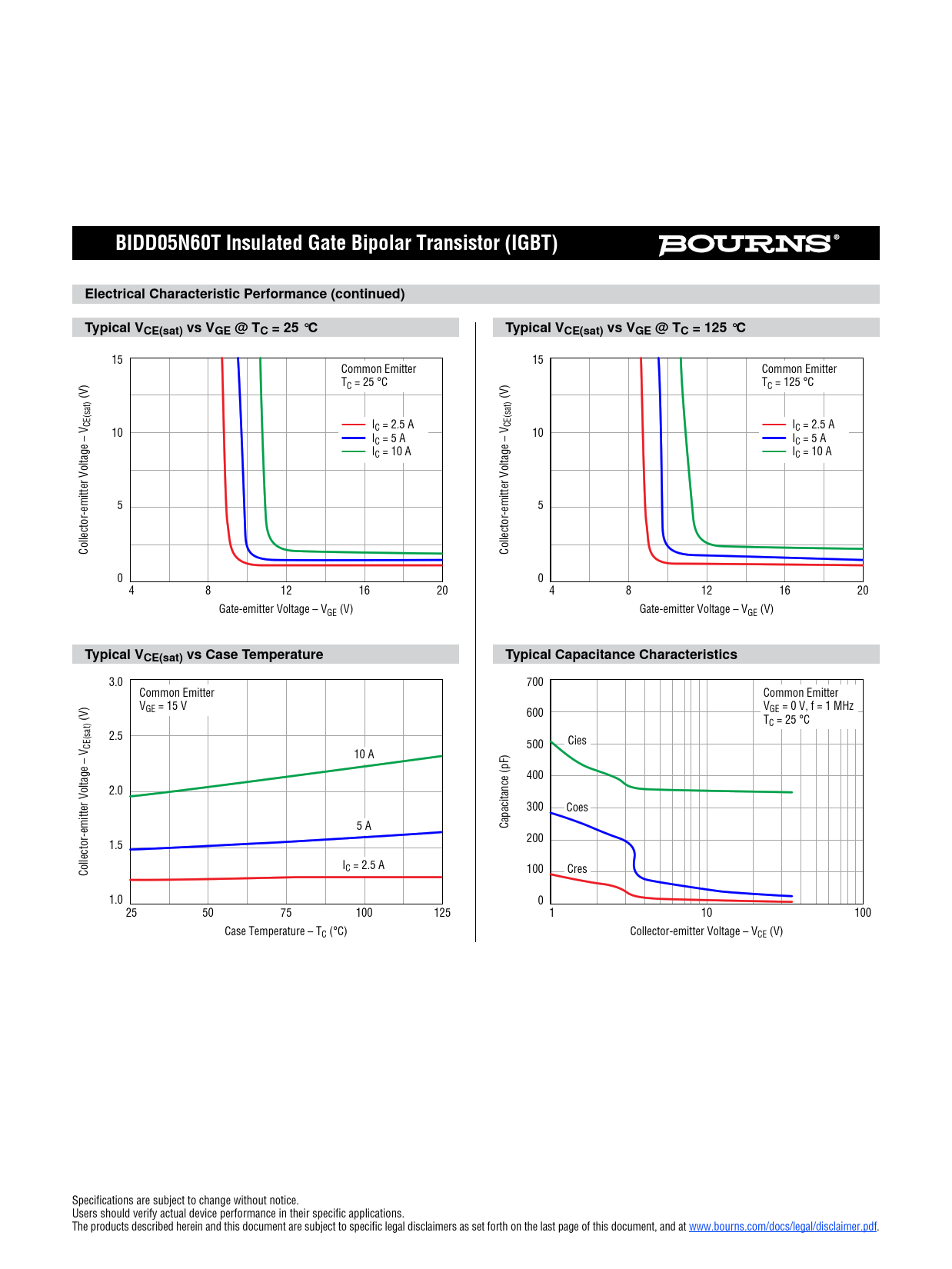

BIDD05N60T Insulated Gate Bipolar Transistor (IGBT) Electrical Characteristic Performance (continued) Typical VCE(sat) vs VGE @ TC = 25 °C Typical VCE(sat) vs VGE @ TC = 125 °C
15 15 Common Emitter Common Emitter TC = 25 °C TC = 125 °C (V) (V) CE(sat) I CE(sat) I 10 C = 2.5 A C = 2.5 A I 10 C = 5 A IC = 5 A IC = 10 A IC = 10 A 5 5 Collector-emitter Voltage – V Collector-emitter Voltage – V 0 0 4 8 12 16 20 4 8 12 16 20 Gate-emitter Voltage – VGE (V) Gate-emitter Voltage – VGE (V)
Typical VCE(sat) vs Case Temperature Typical Capacitance Characteristics
3.0 700 Common Emitter Common Emitter VGE = 15 V V 600 GE = 0 V, f = 1 MHz (V) TC = 25 °C 2.5 Cies CE(sat) 500 10 A 400 2.0 300 Coes 5 A Capacitance (pF) 200 1.5 I Collector-emitter Voltage – V C = 2.5 A 100 Cres 1.0 0 25 50 75 100 125 1 10 100 Case Temperature – TC (°C) Collector-emitter Voltage – VCE (V) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
15 15 Common Emitter Common Emitter TC = 25 °C TC = 125 °C (V) (V) CE(sat) I CE(sat) I 10 C = 2.5 A C = 2.5 A I 10 C = 5 A IC = 5 A IC = 10 A IC = 10 A 5 5 Collector-emitter Voltage – V Collector-emitter Voltage – V 0 0 4 8 12 16 20 4 8 12 16 20 Gate-emitter Voltage – VGE (V) Gate-emitter Voltage – VGE (V)
Typical VCE(sat) vs Case Temperature Typical Capacitance Characteristics
3.0 700 Common Emitter Common Emitter VGE = 15 V V 600 GE = 0 V, f = 1 MHz (V) TC = 25 °C 2.5 Cies CE(sat) 500 10 A 400 2.0 300 Coes 5 A Capacitance (pF) 200 1.5 I Collector-emitter Voltage – V C = 2.5 A 100 Cres 1.0 0 25 50 75 100 125 1 10 100 Case Temperature – TC (°C) Collector-emitter Voltage – VCE (V) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
