Datasheet BD14230FVJ-C (Rohm) - 5
| Manufacturer | Rohm |
| Description | Automotive Current Sense Amplifier |
| Pages / Page | 20 / 5 — BD1423x-C Series. Recommended Operating Conditions. Electrical … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
BD1423x-C Series. Recommended Operating Conditions. Electrical Characteristics. TSZ02201-0M2M0FC23020-1-2. 03.Apr.2025 Rev.002
Model Line for this Datasheet
Text Version of Document

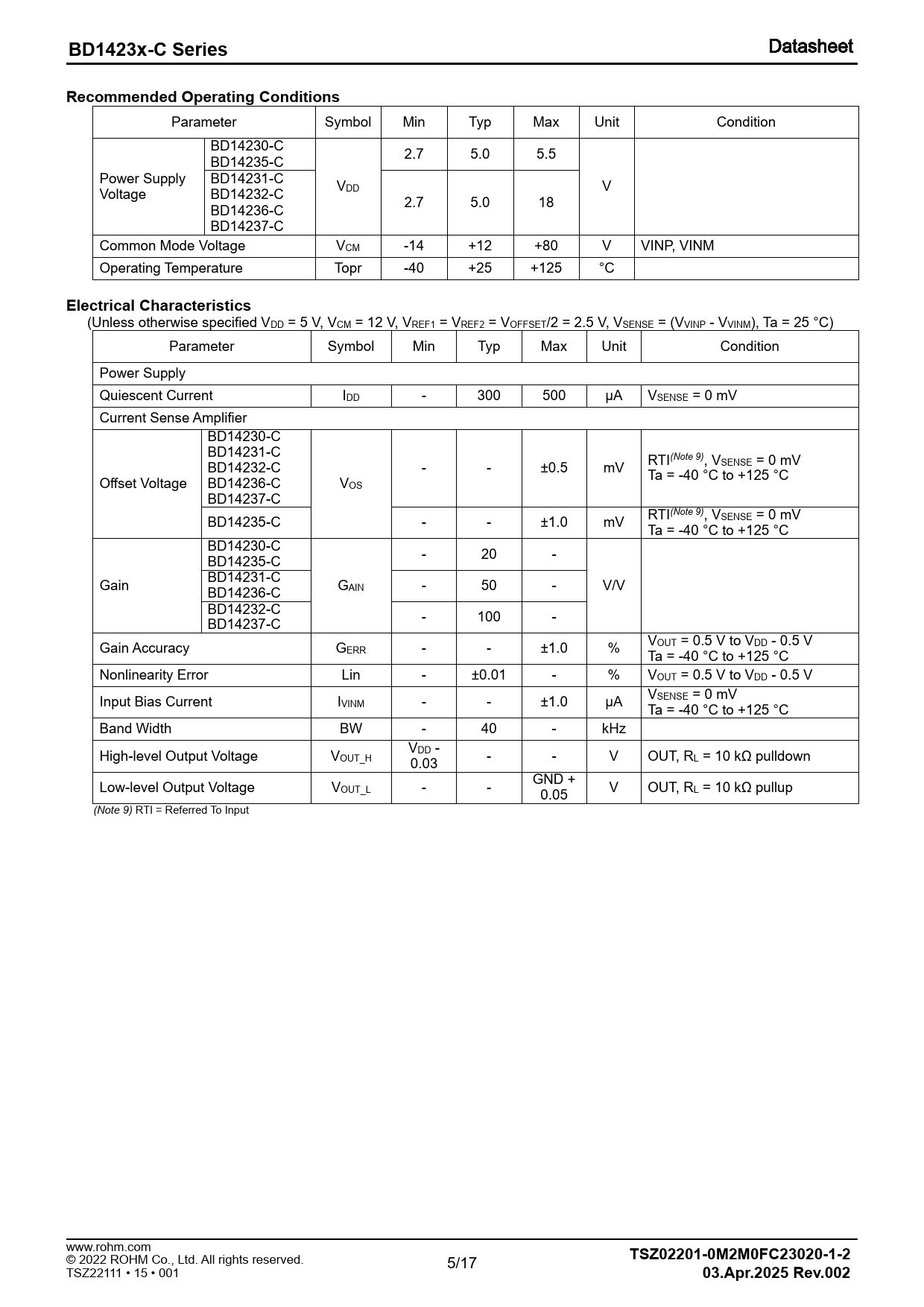

BD1423x-C Series Recommended Operating Conditions
Parameter Symbol Min Typ Max Unit Condition BD14230-C 2.7 5.0 5.5 BD14235-C Power Supply BD14231-C V V Voltage DD BD14232-C 2.7 5.0 18 BD14236-C BD14237-C Common Mode Voltage VCM -14 +12 +80 V VINP, VINM Operating Temperature Topr -40 +25 +125 °C
Electrical Characteristics
(Unless otherwise specified VDD = 5 V, VCM = 12 V, VREF1 = VREF2 = VOFFSET/2 = 2.5 V, VSENSE = (VVINP - VVINM), Ta = 25 °C) Parameter Symbol Min Typ Max Unit Condition Power Supply Quiescent Current IDD - 300 500 µA VSENSE = 0 mV Current Sense Amplifier BD14230-C BD14231-C BD14232-C - - ±0.5 mV RTI(Note 9), VSENSE = 0 mV Ta = -40 °C to +125 °C Offset Voltage BD14236-C VOS BD14237-C RTI(Note 9), V BD14235-C - - ±1.0 mV SENSE = 0 mV Ta = -40 °C to +125 °C BD14230-C - 20 - BD14235-C BD14231-C Gain GAIN V/V BD14236-C - 50 - BD14232-C - 100 - BD14237-C V Gain Accuracy G OUT = 0.5 V to VDD - 0.5 V ERR - - ±1.0 % Ta = -40 °C to +125 °C Nonlinearity Error Lin - ±0.01 - % VOUT = 0.5 V to VDD - 0.5 V V Input Bias Current I SENSE = 0 mV VINM - - ±1.0 µA Ta = -40 °C to +125 °C Band Width BW - 40 - kHz V High-level Output Voltage V DD - OUT_H 0.03 - - V OUT, RL = 10 kΩ pulldown Low-level Output Voltage VOUT_L - - GND + V OUT, R 0.05 L = 10 kΩ pullup (Note 9) RTI = Referred To Input www.rohm.com
TSZ02201-0M2M0FC23020-1-2
© 2022 ROHM Co., Ltd. All rights reserved. 5/17 TSZ22111 • 15 • 001
03.Apr.2025 Rev.002
