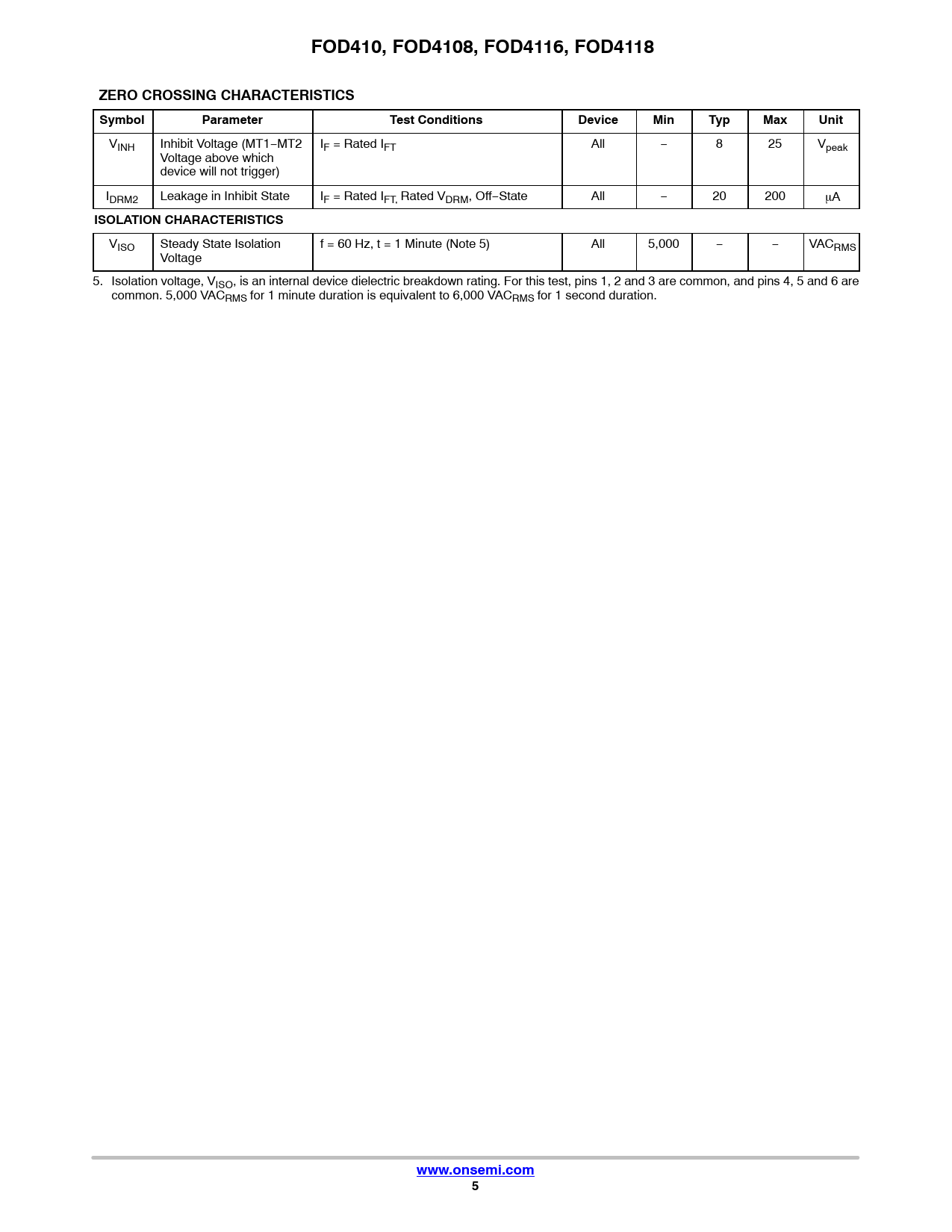

FOD410, FOD4108, FOD4116, FOD4118. ZERO CROSSING CHARACTERISTICS. Symbol. Parameter. Test Conditions. Device. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
FOD410, FOD4108, FOD4116, FOD4118 ZERO CROSSING CHARACTERISTICS Symbol Parameter Test Conditions Device Min Typ Max Unit
VINH Inhibit Voltage (MT1−MT2 IF = Rated IFT All − 8 25 Vpeak Voltage above which device will not trigger) IDRM2 Leakage in Inhibit State IF = Rated IFT, Rated VDRM, Off−State All − 20 200 mA
ISOLATION CHARACTERISTICS
VISO Steady State Isolation f = 60 Hz, t = 1 Minute (Note 5) All 5,000 − − VACRMS Voltage 5. Isolation voltage, VISO, is an internal device dielectric breakdown rating. For this test, pins 1, 2 and 3 are common, and pins 4, 5 and 6 are common. 5,000 VACRMS for 1 minute duration is equivalent to 6,000 VACRMS for 1 second duration.
www.onsemi.com 5
