Datasheet XL4015 (XLSemi) - 6
| Manufacturer | XLSemi |
| Description | 5A, 180KHz, 36V Buck DC to DC Converter in TO263-5L package |
| Pages / Page | 10 / 6 — Datasheet. 5A 180KHz 36V Buck DC to DC Converter XL4015. Typical System … |
| File Format / Size | PDF / 255 Kb |
| Document Language | English |
Datasheet. 5A 180KHz 36V Buck DC to DC Converter XL4015. Typical System Application (VOUT=5V/5A)
Model Line for this Datasheet
Text Version of Document

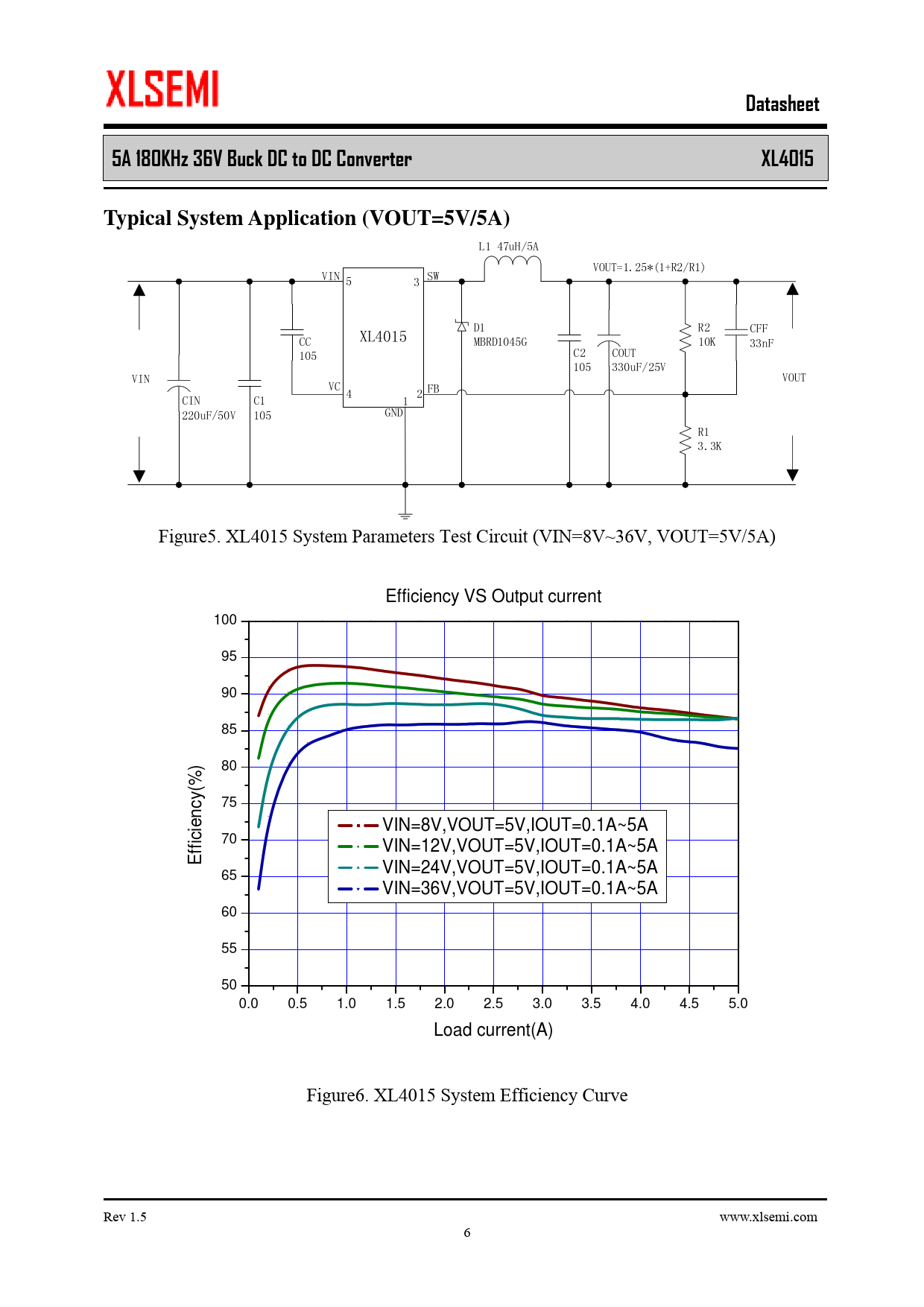

Datasheet 5A 180KHz 36V Buck DC to DC Converter XL4015 Typical System Application (VOUT=5V/5A)
Figure5. XL4015 System Parameters Test Circuit (VIN=8V~36V, VOUT=5V/5A) Efficiency VS Output current 100 95 90 85 ) 80 (% y c 75 n ie VIN=8V,VOUT=5V,IOUT=0.1A~5A 70 ffic VIN=12V,VOUT=5V,IOUT=0.1A~5A E VIN=24V,VOUT=5V,IOUT=0.1A~5A 65 VIN=36V,VOUT=5V,IOUT=0.1A~5A 60 55 50 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 Load current(A) Figure6. XL4015 System Efficiency Curve Rev 1.5 www.xlsemi.com 6
