Datasheet DXTN80100CFG (Diodes) - 4
| Manufacturer | Diodes |
| Description | NPN, 100V, 5.5A, PowerDI3333-8 |
| Pages / Page | 8 / 4 — DXTN80100CFG. Electrical Characteristics. Characteristic. Symbol. Min. … |
| File Format / Size | PDF / 532 Kb |
| Document Language | English |

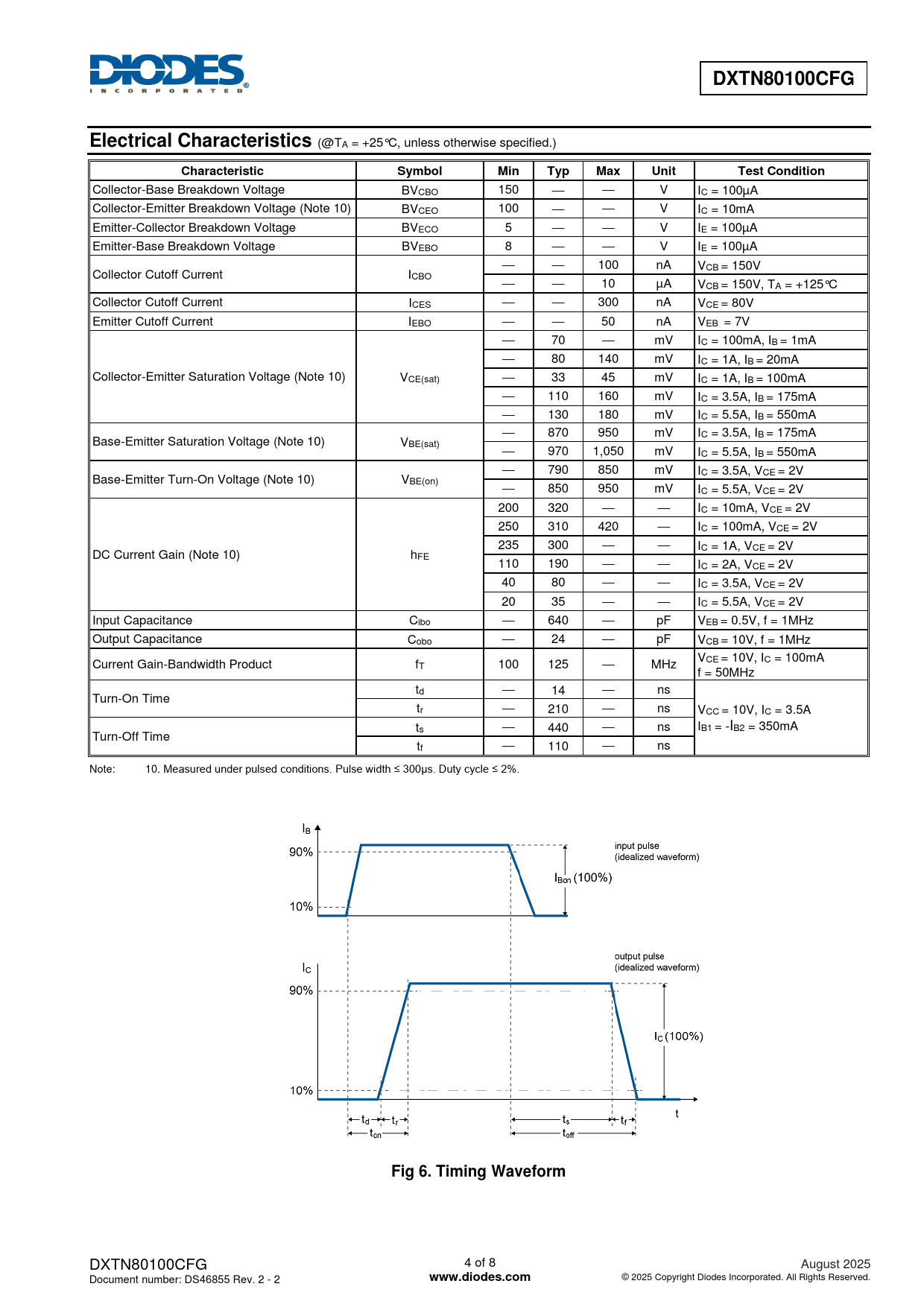

DXTN80100CFG. Electrical Characteristics. Characteristic. Symbol. Min. Typ. Max. Unit. Test Condition. Fig 6. Timing Waveform
Model Line for this Datasheet
Text Version of Document
DXTN80100CFG Electrical Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Min Typ Max Unit Test Condition
Collector-Base Breakdown Voltage BVCBO 150 — — V IC = 100µA Collector-Emitter Breakdown Voltage (Note 10) BVCEO 100 — — V IC = 10mA Emitter-Collector Breakdown Voltage BVECO 5 — — V IE = 100µA Emitter-Base Breakdown Voltage BVEBO 8 — — V IE = 100µA — — 100 nA VCB = 150V Collector Cutoff Current ICBO — — 10 µA VCB = 150V, TA = +125°C Collector Cutoff Current ICES — — 300 nA VCE = 80V Emitter Cutoff Current IEBO — — 50 nA VEB = 7V — 70 — mV IC = 100mA, IB = 1mA — 80 140 mV IC = 1A, IB = 20mA Collector-Emitter Saturation Voltage (Note 10) VCE(sat) — 33 45 mV IC = 1A, IB = 100mA — 110 160 mV IC = 3.5A, IB = 175mA — 130 180 mV IC = 5.5A, IB = 550mA — 870 950 mV IC = 3.5A, IB = 175mA Base-Emitter Saturation Voltage (Note 10) VBE(sat) — 970 1,050 mV IC = 5.5A, IB = 550mA — 790 850 mV IC = 3.5A, VCE = 2V Base-Emitter Turn-On Voltage (Note 10) VBE(on) — 850 950 mV IC = 5.5A, VCE = 2V 200 320 — — IC = 10mA, VCE = 2V 250 310 420 — IC = 100mA, VCE = 2V 235 300 — — IC = 1A, VCE = 2V DC Current Gain (Note 10) hFE 110 190 — — IC = 2A, VCE = 2V 40 80 — — IC = 3.5A, VCE = 2V 20 35 — — IC = 5.5A, VCE = 2V Input Capacitance Cibo — 640 — pF VEB = 0.5V, f = 1MHz Output Capacitance Cobo — 24 — pF VCB = 10V, f = 1MHz V Current Gain-Bandwidth Product f CE = 10V, IC = 100mA T 100 125 — MHz f = 50MHz td — 14 — ns Turn-On Time tr — 210 — ns VCC = 10V, IC = 3.5A ts — 440 — ns IB1 = -IB2 = 350mA Turn-Off Time tf — 110 — ns Note: 10. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%.
