Datasheet DXTP78100CFG (Diodes) - 4
| Manufacturer | Diodes |
| Description | PNP, 100V, 2.5A in PowerDI3333-8/SWP package |
| Pages / Page | 8 / 4 — DXTP78100CFG. Electrical Characteristics. Characteristic. Symbol. Min. … |
| File Format / Size | PDF / 625 Kb |
| Document Language | English |

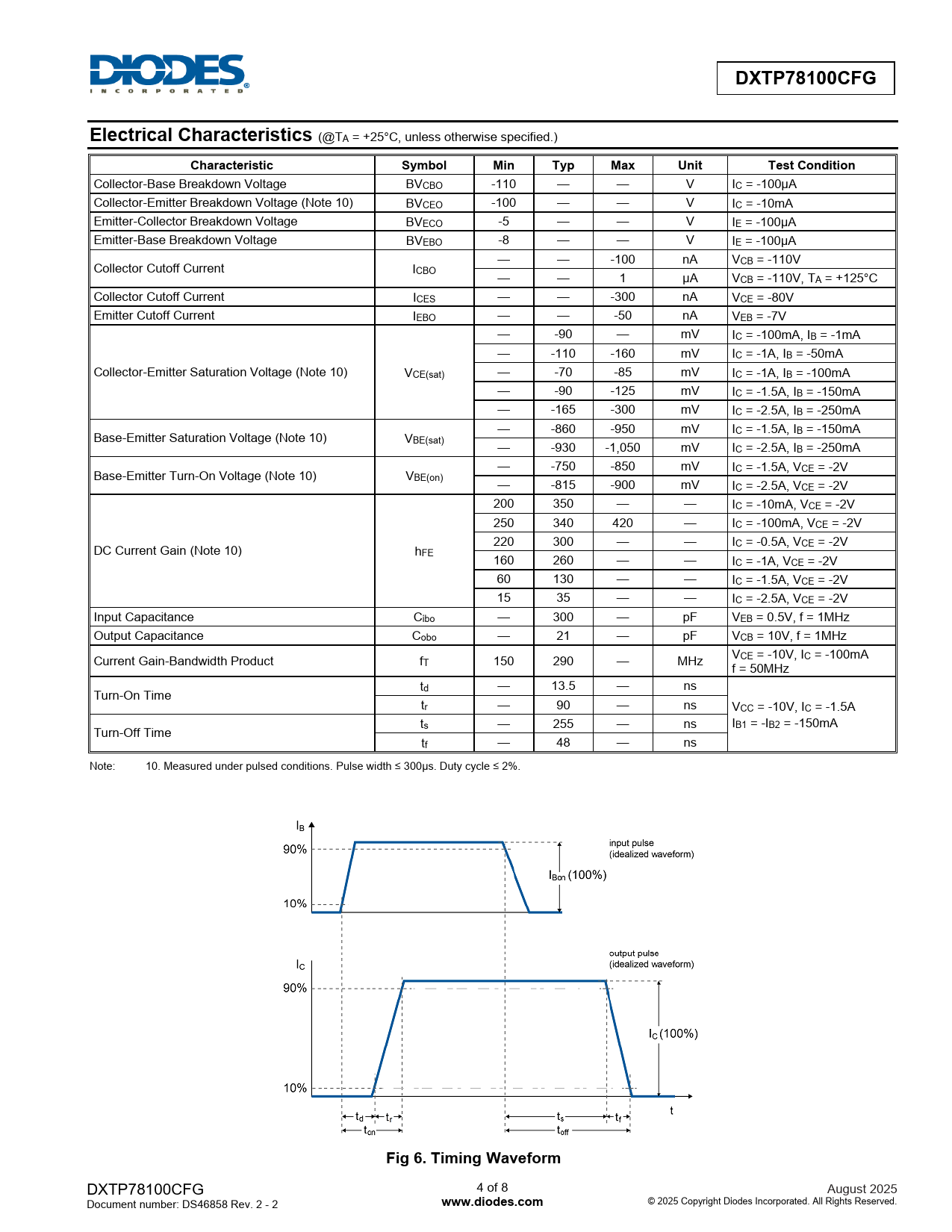

DXTP78100CFG. Electrical Characteristics. Characteristic. Symbol. Min. Typ. Max. Unit. Test Condition. Fig 6. Timing Waveform
Model Line for this Datasheet
Text Version of Document
DXTP78100CFG Electrical Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Min Typ Max Unit Test Condition
Collector-Base Breakdown Voltage BVCBO -110 — — V IC = -100µA Collector-Emitter Breakdown Voltage (Note 10) BVCEO -100 — — V IC = -10mA Emitter-Collector Breakdown Voltage BVECO -5 — — V IE = -100µA Emitter-Base Breakdown Voltage BVEBO -8 — — V IE = -100µA — — -100 nA V Collector Cutoff Current CB = -110V ICBO — — 1 µA VCB = -110V, TA = +125°C Collector Cutoff Current ICES — — -300 nA VCE = -80V Emitter Cutoff Current IEBO — — -50 nA VEB = -7V — -90 — mV IC = -100mA, IB = -1mA — -110 -160 mV IC = -1A, IB = -50mA Collector-Emitter Saturation Voltage (Note 10) VCE(sat) — -70 -85 mV IC = -1A, IB = -100mA — -90 -125 mV IC = -1.5A, IB = -150mA — -165 -300 mV IC = -2.5A, IB = -250mA — -860 -950 mV IC = -1.5A, IB = -150mA Base-Emitter Saturation Voltage (Note 10) VBE(sat) — -930 -1,050 mV IC = -2.5A, IB = -250mA — -750 -850 mV IC = -1.5A, VCE = -2V Base-Emitter Turn-On Voltage (Note 10) VBE(on) — -815 -900 mV IC = -2.5A, VCE = -2V 200 350 — — IC = -10mA, VCE = -2V 250 340 420 — IC = -100mA, VCE = -2V 220 300 — — IC = -0.5A, VCE = -2V DC Current Gain (Note 10) hFE 160 260 — — IC = -1A, VCE = -2V 60 130 — — IC = -1.5A, VCE = -2V 15 35 — — IC = -2.5A, VCE = -2V Input Capacitance Cibo — 300 — pF VEB = 0.5V, f = 1MHz Output Capacitance Cobo — 21 — pF VCB = 10V, f = 1MHz Current Gain-Bandwidth Product fT 150 290 — MHz VCE = -10V, IC = -100mA f = 50MHz td — 13.5 — ns Turn-On Time tr — 90 — ns VCC = -10V, IC = -1.5A ts — 255 — ns IB1 = -IB2 = -150mA Turn-Off Time tf — 48 — ns Note: 10. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%.
Fig 6. Timing Waveform
DXTP78100CFG 4 of 8 August 2025 Document number: DS46858 Rev. 2 - 2
