Datasheet MAX6951 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Serially Interfaced, +2.7V to +5.5V, 5- and 8-Digit LED Display Drivers |
| Pages / Page | 19 / 2 — Serially Interfaced, +2.7V to +5.5V, 5- and 8-Digit LED Display Drivers. … |
| File Format / Size | PDF / 246 Kb |
| Document Language | English |

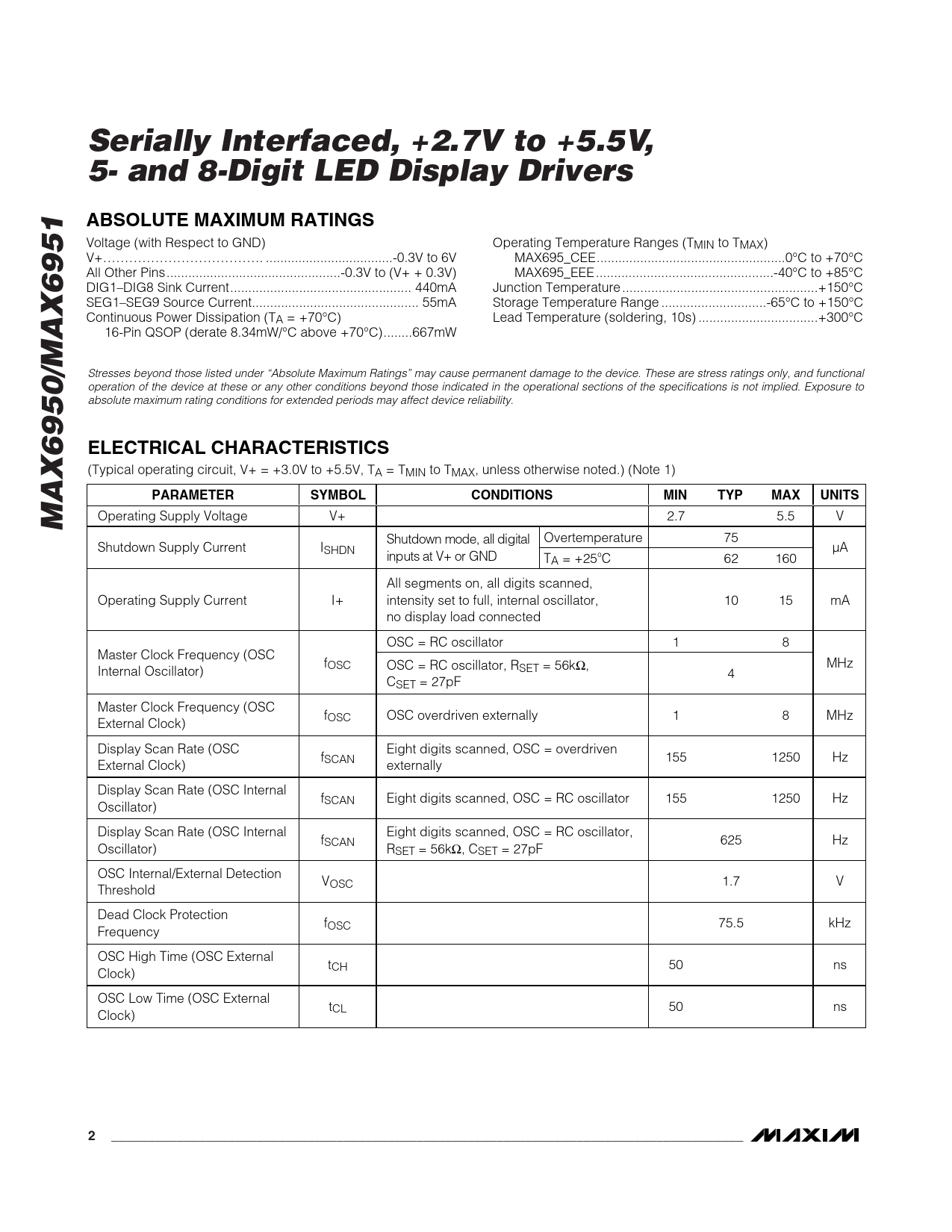

Serially Interfaced, +2.7V to +5.5V, 5- and 8-Digit LED Display Drivers. ABSOLUTE MAXIMUM RATINGS
Model Line for this Datasheet
Text Version of Document
Serially Interfaced, +2.7V to +5.5V, 5- and 8-Digit LED Display Drivers ABSOLUTE MAXIMUM RATINGS
Voltage (with Respect to GND) Operating Temperature Ranges (TMIN to TMAX) V+………………………………. ...-0.3V to 6V MAX695_CEE..0°C to +70°C All Other Pins..-0.3V to (V+ + 0.3V) MAX695_EEE ...-40°C to +85°C DIG1–DIG8 Sink Current.. 440mA Junction Temperature ..+150°C SEG1–SEG9 Source Current.. 55mA Storage Temperature Range ...-65°C to +150°C Continuous Power Dissipation (TA = +70°C) Lead Temperature (soldering, 10s) ...+300°C 16-Pin QSOP (derate 8.34mW/°C above +70°C)..667mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(Typical operating circuit, V+ = +3.0V to +5.5V, TA = TMIN to TMAX, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS MAX6950/MAX6951
Operating Supply Voltage V+ 2.7 5.5 V S hutd ow n m od e, al l d i g i tal Overtemperature 75 Shutdown Supply Current ISHDN µA i np uts at V + or GN D TA = +25oC 62 160 All segments on, all digits scanned, Operating Supply Current I+ intensity set to full, internal oscillator, 10 15 mA no display load connected OSC = RC oscillator 1 8 Master Clock Frequency (OSC fOSC MHz Internal Oscillator) OSC = RC oscillator, RSET = 56kΩ, 4 CSET = 27pF Master Clock Frequency (OSC fOSC OSC overdriven externally 1 8 MHz External Clock) Display Scan Rate (OSC Eight digits scanned, OSC = overdriven fSCAN 155 1250 Hz External Clock) externally Display Scan Rate (OSC Internal fSCAN Eight digits scanned, OSC = RC oscillator 155 1250 Hz Oscillator) Display Scan Rate (OSC Internal Eight digits scanned, OSC = RC oscillator, fSCAN 625 Hz Oscillator) RSET = 56kΩ, CSET = 27pF OSC Internal/External Detection VOSC 1.7 V Threshold Dead Clock Protection fOSC 75.5 kHz Frequency OSC High Time (OSC External tCH 50 ns Clock) OSC Low Time (OSC External tCL 50 ns Clock)
