Datasheet BZX85 (Vishay) - 5
| Manufacturer | Vishay |
| Description | Silicon Planar Power Zener Diodes in DO-41 (DO-204AL) package |
| Pages / Page | 8 / 5 — BZX85-Series. VISHAY. Vishay Semiconductors. Typical Characteristics |
| Revision | 1.7 |
| File Format / Size | PDF / 206 Kb |
| Document Language | English |
BZX85-Series. VISHAY. Vishay Semiconductors. Typical Characteristics
Model Line for this Datasheet
- BZX85-B180 BZX85-C200 BZX85B10 BZX85B10-TAP BZX85B10-TR BZX85B100 BZX85B100-TAP BZX85B100-TR BZX85B11 BZX85B11-TAP BZX85B11-TR BZX85B110 BZX85B12 BZX85B12-TAP BZX85B12-TR BZX85B120 BZX85B13 BZX85B13-TAP BZX85B13-TR BZX85B130 BZX85B15 BZX85B15-TAP BZX85B15-TR BZX85B150 BZX85B16 BZX85B16-TAP BZX85B16-TR BZX85B160 BZX85B18 BZX85B18-TAP BZX85B18-TR BZX85B180 BZX85B20 BZX85B20-TAP BZX85B20-TR BZX85B200 BZX85B22 BZX85B22-TAP BZX85B22-TR BZX85B24 BZX85B24-TAP BZX85B24-TR BZX85B27 BZX85B27-TAP BZX85B27-TR BZX85B2V7 BZX85B2V7-TAP BZX85B2V7-TR BZX85B30 BZX85B30-TAP BZX85B30-TR BZX85B33 BZX85B33-TAP BZX85B33-TR BZX85B36 BZX85B36-TAP BZX85B36-TR BZX85B39 BZX85B39-TAP BZX85B39-TR BZX85B3V0 BZX85B3V0-TAP BZX85B3V0-TR BZX85B3V3 BZX85B3V3-TAP BZX85B3V3-TR BZX85B3V6 BZX85B3V6-TAP BZX85B3V6-TR BZX85B3V9 BZX85B3V9-TAP BZX85B3V9-TR BZX85B43 BZX85B43-TAP BZX85B43-TR BZX85B47 BZX85B47-TAP BZX85B47-TR BZX85B4V3 BZX85B4V3-TAP BZX85B4V3-TR BZX85B4V7 BZX85B4V7-TAP BZX85B4V7-TR BZX85B51 BZX85B51-TAP BZX85B51-TR BZX85B56 BZX85B56-TAP BZX85B56-TR BZX85B5V1 BZX85B5V1-TAP BZX85B5V1-TR BZX85B5V6 BZX85B5V6-TAP BZX85B5V6-TR BZX85B62 BZX85B62-TAP BZX85B62-TR BZX85B68 BZX85B68-TAP BZX85B68-TR BZX85B6V2 BZX85B6V2-TAP BZX85B6V2-TR BZX85B6V8 BZX85B6V8-TAP BZX85B6V8-TR BZX85B75 BZX85B75-TAP BZX85B75-TR BZX85B7V5 BZX85B7V5-TAP BZX85B7V5-TR BZX85B82 BZX85B82-TAP BZX85B82-TR BZX85B8V2 BZX85B8V2-TAP BZX85B8V2-TR BZX85B91 BZX85B91-TAP BZX85B91-TR BZX85B9V1 BZX85B9V1-TAP BZX85B9V1-TR BZX85C10 BZX85C10-TAP BZX85C10-TR BZX85C100 BZX85C100-TAP BZX85C100-TR BZX85C11 BZX85C11-TAP BZX85C11-TR BZX85C110 BZX85C12 BZX85C12-TAP BZX85C12-TR BZX85C120 BZX85C13 BZX85C13-TAP BZX85C13-TR BZX85C130 BZX85C15 BZX85C15-TAP BZX85C15-TR BZX85C150 BZX85C16 BZX85C16-TAP BZX85C16-TR BZX85C160 BZX85C18 BZX85C18-TAP BZX85C18-TR BZX85C180 BZX85C20 BZX85C20-TAP BZX85C20-TR BZX85C200 BZX85C22 BZX85C22-TAP BZX85C22-TR BZX85C24 BZX85C24-TAP BZX85C24-TR BZX85C27 BZX85C27-TAP BZX85C27-TR BZX85C2V7 BZX85C2V7-TAP BZX85C2V7-TR BZX85C30 BZX85C30-TAP BZX85C30-TR BZX85C33 BZX85C33-TAP BZX85C33-TR BZX85C36 BZX85C36-TAP BZX85C36-TR BZX85C39 BZX85C39-TAP BZX85C39-TR BZX85C3V0 BZX85C3V0-TAP BZX85C3V0-TR BZX85C3V3 BZX85C3V3-TAP BZX85C3V3-TR BZX85C3V6 BZX85C3V6-TAP BZX85C3V6-TR BZX85C3V9 BZX85C3V9-TAP BZX85C3V9-TR BZX85C43 BZX85C43-TAP BZX85C43-TR BZX85C47 BZX85C47-TAP BZX85C47-TR BZX85C4V3 BZX85C4V3-TAP BZX85C4V3-TR BZX85C4V7 BZX85C4V7-TAP BZX85C4V7-TR BZX85C51 BZX85C51-TAP BZX85C51-TR BZX85C56 BZX85C56-TAP BZX85C56-TR BZX85C5V1 BZX85C5V1-TAP BZX85C5V1-TR BZX85C5V6 BZX85C5V6-TAP BZX85C5V6-TR BZX85C62 BZX85C62-TAP BZX85C62-TR BZX85C68 BZX85C68-TAP BZX85C68-TR BZX85C6V2 BZX85C6V2-TAP BZX85C6V2-TR BZX85C6V8 BZX85C6V8-TAP BZX85C6V8-TR BZX85C75 BZX85C75-TAP BZX85C75-TR BZX85C7V5 BZX85C7V5-TAP BZX85C7V5-TR BZX85C82 BZX85C82-TAP BZX85C82-TR BZX85C8V2 BZX85C8V2-TAP BZX85C8V2-TR BZX85C91 BZX85C91-TAP BZX85C91-TR BZX85C9V1 BZX85C9V1-TAP BZX85C9V1-TR
Text Version of Document
BZX85-Series VISHAY Vishay Semiconductors
Partnumber Zener Voltage Dynamic Resistance Temperature Reverse Leakage Admissible Zener Range1) Coefficient Current Current 2) of Zener Voltage V 3) 3) Z @ IZT r @ I @ I ZT ZT rZK ZK αVZ @ IZ = IZT @ IR @ VR IZ V Ω mA Ω mA %/°C µA V mA min max min max BZX85B160 157 163 < 1100 1.5 < 6500 0.25 0.055 0.095 < 0.5 120 5.8 BZX85B180 176 184 < 1200 1.5 < 7000 0.25 0.055 0.095 < 0.5 130 5.2 BZX85B200 196 204 < 1500 1.5 < 8000 0.25 0.055 0.095 < 0.5 150 4.7 1) Measured with pulses tp = 5 ms 2) Valid provided that leads are kept at ambient temperature at a distance of 10 mm from case 3) Measured with f = 1 kHz
Typical Characteristics

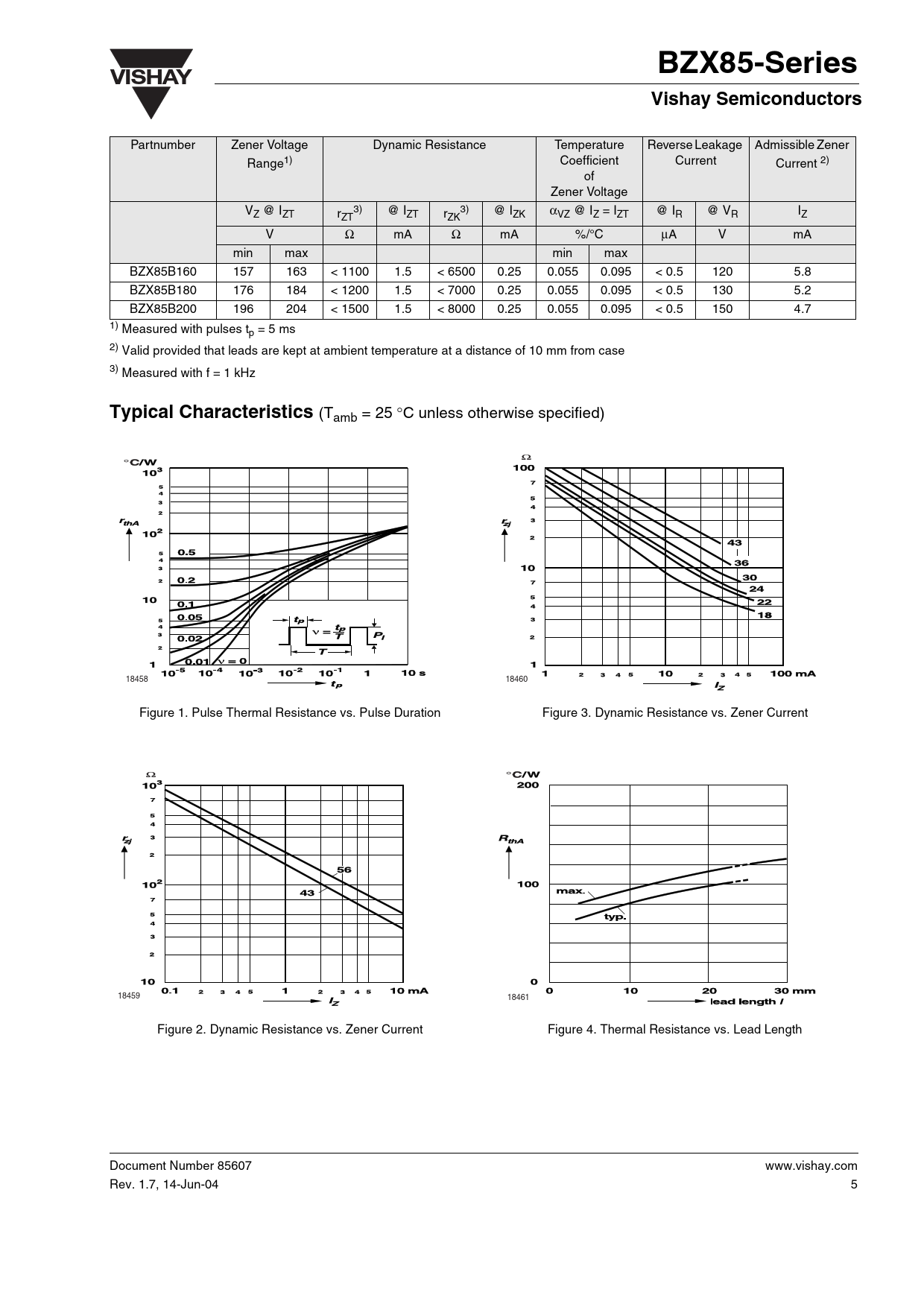

(Tamb = 25 °C unless otherwise specified) 18458 18460 Figure 1. Pulse Thermal Resistance vs. Pulse Duration Figure 3. Dynamic Resistance vs. Zener Current 18459 18461 Figure 2. Dynamic Resistance vs. Zener Current Figure 4. Thermal Resistance vs. Lead Length Document Number 85607 www.vishay.com Rev. 1.7, 14-Jun-04 5 Document Outline Zener Diodes Features Applications Mechanical Data Typical Characteristics (Tamb = 25 °C unless otherwise specified) Package Dimensions in mm (Inches)
Partnumber Zener Voltage Dynamic Resistance Temperature Reverse Leakage Admissible Zener Range1) Coefficient Current Current 2) of Zener Voltage V 3) 3) Z @ IZT r @ I @ I ZT ZT rZK ZK αVZ @ IZ = IZT @ IR @ VR IZ V Ω mA Ω mA %/°C µA V mA min max min max BZX85B160 157 163 < 1100 1.5 < 6500 0.25 0.055 0.095 < 0.5 120 5.8 BZX85B180 176 184 < 1200 1.5 < 7000 0.25 0.055 0.095 < 0.5 130 5.2 BZX85B200 196 204 < 1500 1.5 < 8000 0.25 0.055 0.095 < 0.5 150 4.7 1) Measured with pulses tp = 5 ms 2) Valid provided that leads are kept at ambient temperature at a distance of 10 mm from case 3) Measured with f = 1 kHz
Typical Characteristics
(Tamb = 25 °C unless otherwise specified) 18458 18460 Figure 1. Pulse Thermal Resistance vs. Pulse Duration Figure 3. Dynamic Resistance vs. Zener Current 18459 18461 Figure 2. Dynamic Resistance vs. Zener Current Figure 4. Thermal Resistance vs. Lead Length Document Number 85607 www.vishay.com Rev. 1.7, 14-Jun-04 5 Document Outline Zener Diodes Features Applications Mechanical Data Typical Characteristics (Tamb = 25 °C unless otherwise specified) Package Dimensions in mm (Inches)
