SG3525A. ELECTRICAL CHARACTERISTICS. Characteristics. Symbol. Min. Typ. Max. Unit. REFERENCE SECTION. OSCILLATOR SECTION
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4

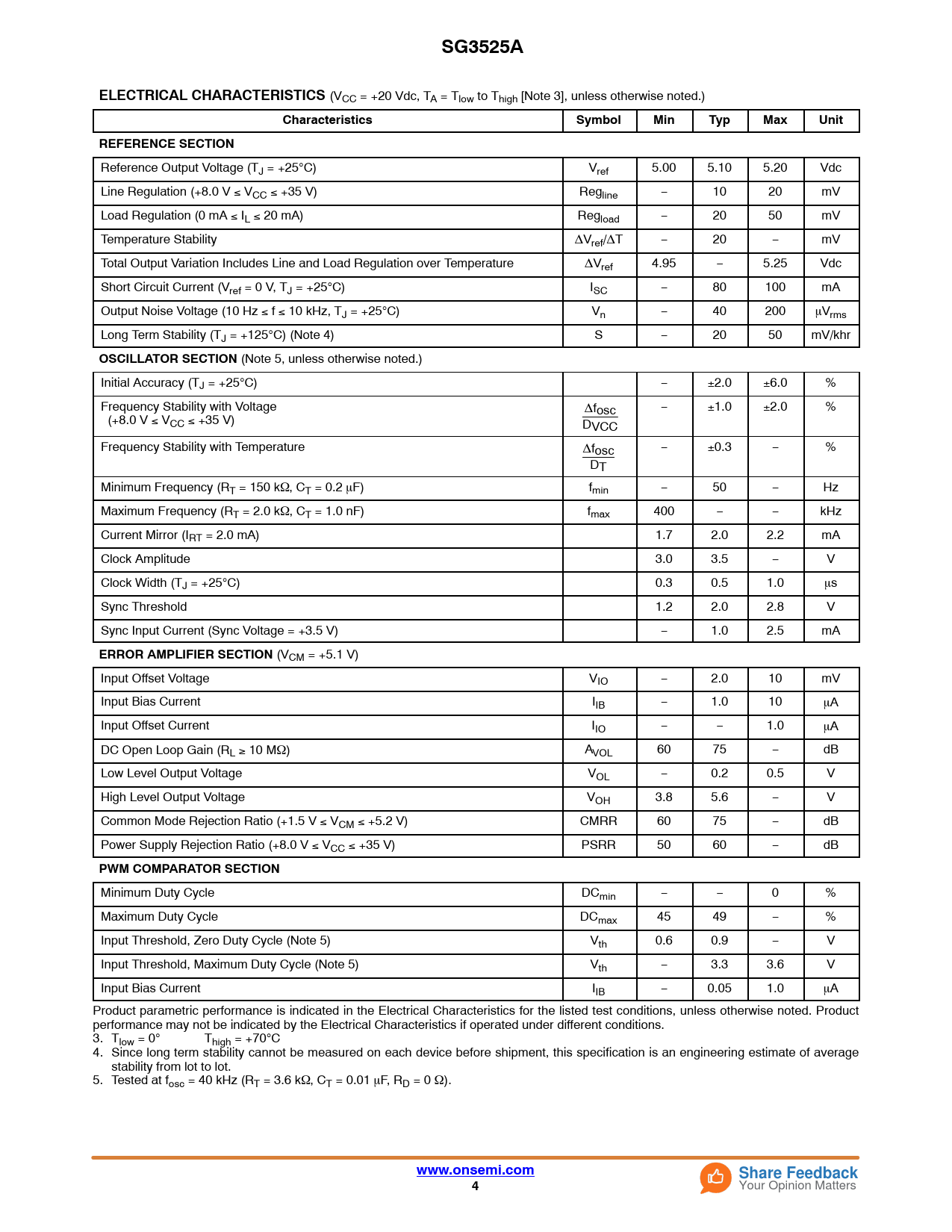

SG3525A ELECTRICAL CHARACTERISTICS
(VCC = +20 Vdc, TA = Tlow to Thigh [Note 3], unless otherwise noted.)
Characteristics Symbol Min Typ Max Unit REFERENCE SECTION
Reference Output Voltage (TJ = +25C) Vref 5.00 5.10 5.20 Vdc Line Regulation (+8.0 V VCC +35 V) Regline − 10 20 mV Load Regulation (0 mA IL 20 mA) Regload − 20 50 mV Temperature Stability DVref/DT − 20 − mV Total Output Variation Includes Line and Load Regulation over Temperature DVref 4.95 − 5.25 Vdc Short Circuit Current (Vref = 0 V, TJ = +25C) ISC − 80 100 mA Output Noise Voltage (10 Hz f 10 kHz, TJ = +25C) Vn − 40 200 mVrms Long Term Stability (TJ = +125C) (Note 4) S − 20 50 mV/khr
OSCILLATOR SECTION
(Note 5, unless otherwise noted.) Initial Accuracy (TJ = +25C) − 2.0 6.0 % Frequency Stability with Voltage Dfosc − 1.0 2.0 % (+8.0 V VCC +35 V) DVCC Frequency Stability with Temperature Dfosc − 0.3 − % DT Minimum Frequency (RT = 150 kW, CT = 0.2 mF) fmin − 50 − Hz Maximum Frequency (RT = 2.0 kW, CT = 1.0 nF) fmax 400 − − kHz Current Mirror (IRT = 2.0 mA) 1.7 2.0 2.2 mA Clock Amplitude 3.0 3.5 − V Clock Width (TJ = +25C) 0.3 0.5 1.0 ms Sync Threshold 1.2 2.0 2.8 V Sync Input Current (Sync Voltage = +3.5 V) − 1.0 2.5 mA
ERROR AMPLIFIER SECTION
(VCM = +5.1 V) Input Offset Voltage VIO − 2.0 10 mV Input Bias Current IIB − 1.0 10 mA Input Offset Current IIO − − 1.0 mA DC Open Loop Gain (RL 10 MW) AVOL 60 75 − dB Low Level Output Voltage VOL − 0.2 0.5 V High Level Output Voltage VOH 3.8 5.6 − V Common Mode Rejection Ratio (+1.5 V VCM +5.2 V) CMRR 60 75 − dB Power Supply Rejection Ratio (+8.0 V VCC +35 V) PSRR 50 60 − dB
PWM COMPARATOR SECTION
Minimum Duty Cycle DCmin − − 0 % Maximum Duty Cycle DCmax 45 49 − % Input Threshold, Zero Duty Cycle (Note 5) Vth 0.6 0.9 − V Input Threshold, Maximum Duty Cycle (Note 5) Vth − 3.3 3.6 V Input Bias Current IIB − 0.05 1.0 mA Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 3. Tlow = 0 Thigh = +70C 4. Since long term stability cannot be measured on each device before shipment, this specification is an engineering estimate of average stability from lot to lot. 5. Tested at fosc = 40 kHz (RT = 3.6 kW, CT = 0.01 mF, RD = 0 W).
