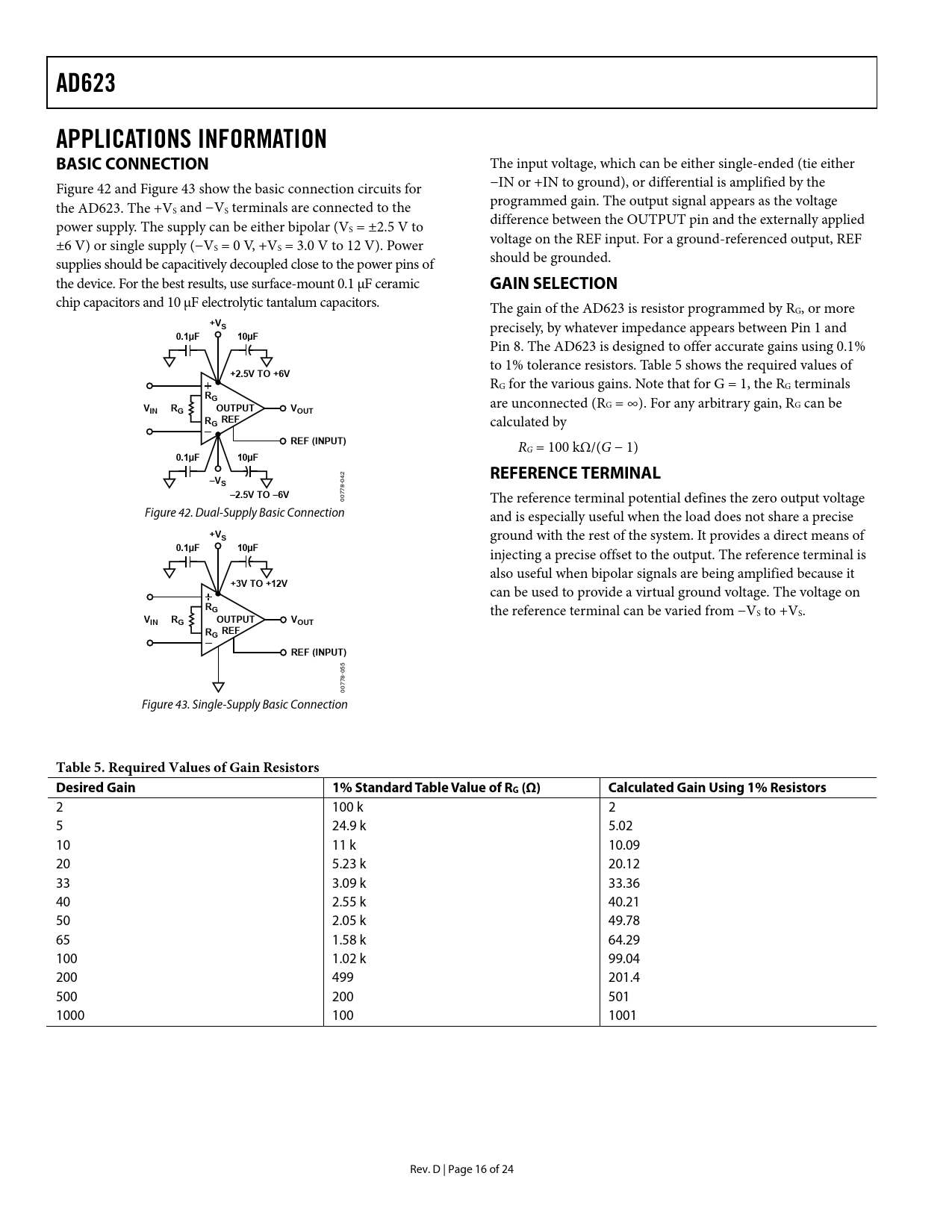

AD623 APPLICATIONS INFORMATION BASIC CONNECTION
The input voltage, which can be either single-ended (tie either Figure 42 and Figure 43 show the basic connection circuits for −IN or +IN to ground), or differential is amplified by the the AD623. The +V programmed gain. The output signal appears as the voltage S and −VS terminals are connected to the power supply. The supply can be either bipolar (V difference between the OUTPUT pin and the externally applied S = ±2.5 V to ±6 V) or single supply (−V voltage on the REF input. For a ground-referenced output, REF S = 0 V, +VS = 3.0 V to 12 V). Power supplies should be capacitively decoupled close to the power pins of should be grounded. the device. For the best results, use surface-mount 0.1 μF ceramic
GAIN SELECTION
chip capacitors and 10 μF electrolytic tantalum capacitors. The gain of the AD623 is resistor programmed by RG, or more
+VS
precisely, by whatever impedance appears between Pin 1 and
0.1µF 10µF
Pin 8. The AD623 is designed to offer accurate gains using 0.1% to 1% tolerance resistors. Table 5 shows the required values of
+2.5V TO +6V
RG for the various gains. Note that for G = 1, the RG terminals
RG V R
are unconnected (RG = ∞). For any arbitrary gain, RG can be
IN G OUTPUT VOUT R REF G
calculated by
REF (INPUT)
RG = 100 kΩ/(G − 1)
0.1µF 10µF REFERENCE TERMINAL
42 0
–VS
8-
–2.5V TO –6V
077 0 The reference terminal potential defines the zero output voltage Figure 42. Dual-Supply Basic Connection and is especially useful when the load does not share a precise
+VS
ground with the rest of the system. It provides a direct means of
0.1µF 10µF
injecting a precise offset to the output. The reference terminal is also useful when bipolar signals are being amplified because it
+3V TO +12V
can be used to provide a virtual ground voltage. The voltage on
RG
the reference terminal can be varied from −VS to +VS.
V R IN G OUTPUT VOUT R REF G REF (INPUT)
55 0 8- 77 00 Figure 43. Single-Supply Basic Connection
Table 5. Required Values of Gain Resistors Desired Gain 1% Standard Table Value of RG (Ω) Calculated Gain Using 1% Resistors
