Development Board Digilent Genesys

Digilent’s Genesys board brings the power of Xilinx’s Virtex-5 FPGA to a surprisingly uncomplicated design platform.

Detailed Description

With gigabit ethernet, high-speed memory, high-resolution audio & video circuits and a host of USB connectivity options, the Genesys board includes proven circuits used in the most demanding designs. From complex systems to dedicated high performance applications, the Genesys board brings workable solutions to complex problems.

The Genesys board can be communicated with and programmed by the Digilent Adept software. In addition, the board can be programmed by Xilinx's iMPACT.

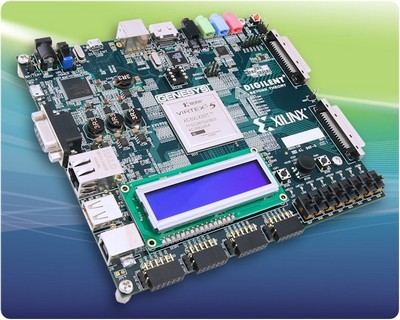

Development Board Digilent Genesys

Features:

  • Xilinx Virtex-5 LX50T FPGA in a 1136-pin BGA package
  • 256Mbyte DDR2 SODIMM with 64-bit wide data
  • 10/100/1000 Ethernet PHY and RS-232 serial port
  • Multiple USB2 ports for programming, data transfer, and hosting applications
  • HDMI video with resolution up to 1600×1200 & 24-bit color
  • AC-97 Codec with 48KHz sampling and line-in, line-out, microphone and headphone ports
  • Real time power monitors on all power rails
  • 32Mbyte Numonyx StrataFlash for configuration and user-data storage
  • 100MHz fixed oscillator and (up to) 400MHz programmable clock generator
  • 112 FPGA I/O’s routed to expansion connectors (two high-speed parallel VHDC connectors and four 8-pin headers)
  • GPIO includes 8 LEDs, 2 buttons, two-axis navigation switch, 8 slide switches, and a 16×2 character LCD
  • Ships with a 20W power supply, USB cable, and protective plexiglass covers
  • Anaog Devices ADM3232EARNZ RS-232 Line Driver/Receiver
  • Connector(s):
    • Two Vmod (high-speed VHDC) connectors
    • Four 12-pin Pmod connectors
    • Multiple USB2 ports
    • HDMI video
    • Audio (line in, line out, microphone & headphone)
  • Programming:
    • JTAG programming interfaces compatible with Xilinx's iMPACT and Digilent Adept

Genesys Development Board Schematic Diagram

digilentinc.com

Other Names:

Genesys Virtex5 FPGA board, DLGenesys Virtex5 FPGA board, Genesys Virtex 5 FPGA board, DL Genesys Virtex 5 FPGA board, Genesys Virtex-5 FPGA board DL-Genesys Virtex-5 FPGA board, Genesys Virtex-5 FPGA board DL-Genesys Virtex-5 FPGA board
