Programmer and prototype development board Olimex PIC-PG4

PIC-PG4 - PIC16F84 /16F628 programmer and prototype development board.

Detailed Description

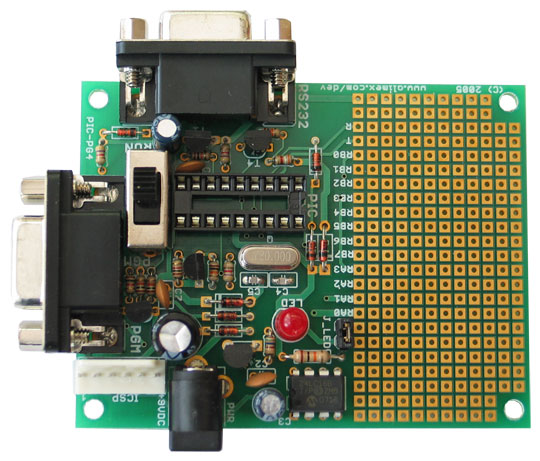

Olimex PIC-PG4

FEATURES:

  • This board is everything you need for getting started with the PIC microcontrollers programming.

    It has on board power supply voltage regulator circuit, microcontroller's reset circuit, crystal oscilator circuit, LED, EEPROM memory, RS232 serial port interface, second RS232 port with build in programmer, so you can programm your microcontroller without take off the board. additional ICSP port which you can use to program PICs on other boards.

  • PIC16F84A-20MHz microcontroller or PIC16F628A-20Mhz
  • ICSP connector and cable for programming other PICs in-circuit
  • DIL18 pin microcontroller socket
  • Voltage regulator 78L05 and filtering capacitors
  • Crystal oscilator circuit 20MHz
  • status red LED
  • I2C EEPROM 24LC08 or larger
  • Reset circuit
  • Two RS232 DB9 connectors
  • RS232 interface circuit
  • RS232 serial port programming interface circuit
  • Extension on board slot 14 pins for RA0-RA3, RB0-RB7, TMR, MCLR
  • Gird 100 mils
  • GND bus
  • Four mounting holes 3.3 mm (0,13")
  • FR-4, 1.5 mm (0,062"), double side green soldermask, white silkscreen component mark
  • Dimensions 61×76 mm (2,4×3,0") + 30 cm (12") ICSP cable

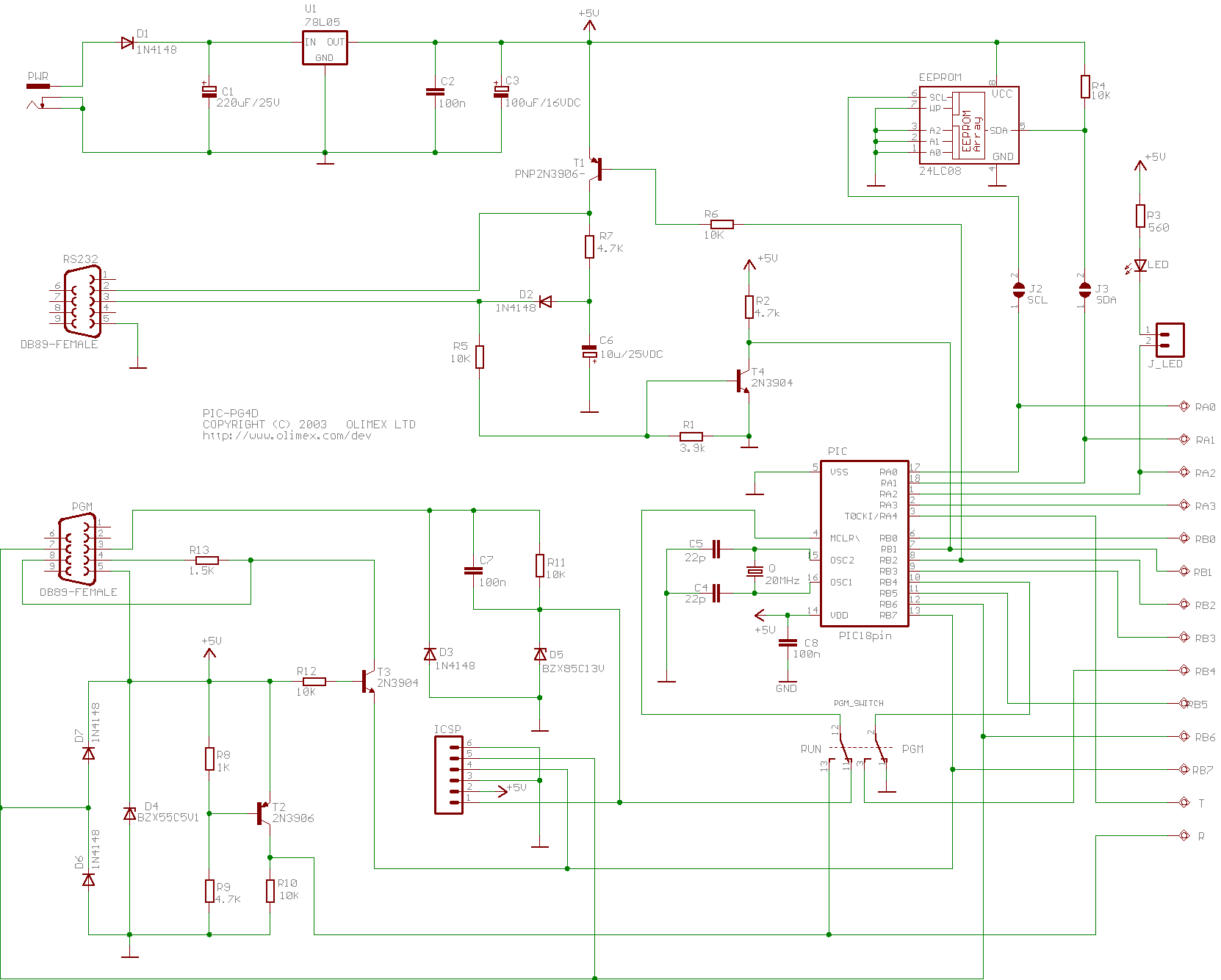

Schematic diagram PIC-PG4 development board

Olimex PIC-PG4
Click to enlarge

Other Names:

PICPG4, PIC PG4
