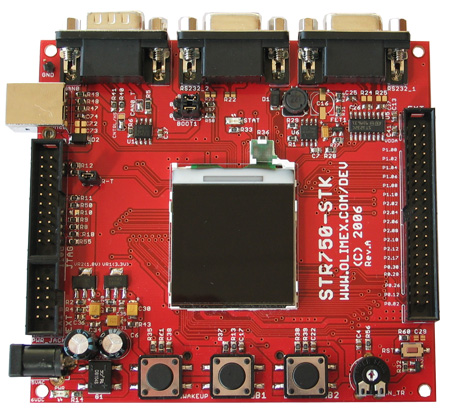

Development board Olimex STR750-STK

Detailed Description

FEATURES:

• MCU: STR750
• standard JTAG connector with ARM 2×10 pin layout for programming/debugging with ARM-JTAG
• USB 2.0 device port
• 3x RS232 interface and drivers
• 4x optoisolated inputs
• 2 RELAYS 10A/250VAC
• 3x Buttons
• Trimmer potentiometer
• NOKIA 6610 TFT COLOR LCD display 128×128 pixel 12 bit color with backlight
• UEXT - 10 pin extension connector for Olimex addon peripherials like MP3, RF2.4Ghz, RFID etc.

  modules

• on board voltage regulators wiith up to 800mA current
• single power supply: 6-9VDC required
• power supply LED
• power supply filtering capacitor
• RESET circuit
• RESET button
• 4 Mhz crystal
• PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
• Dimensions: 110 × 101 mm (4.33 × 3.98")

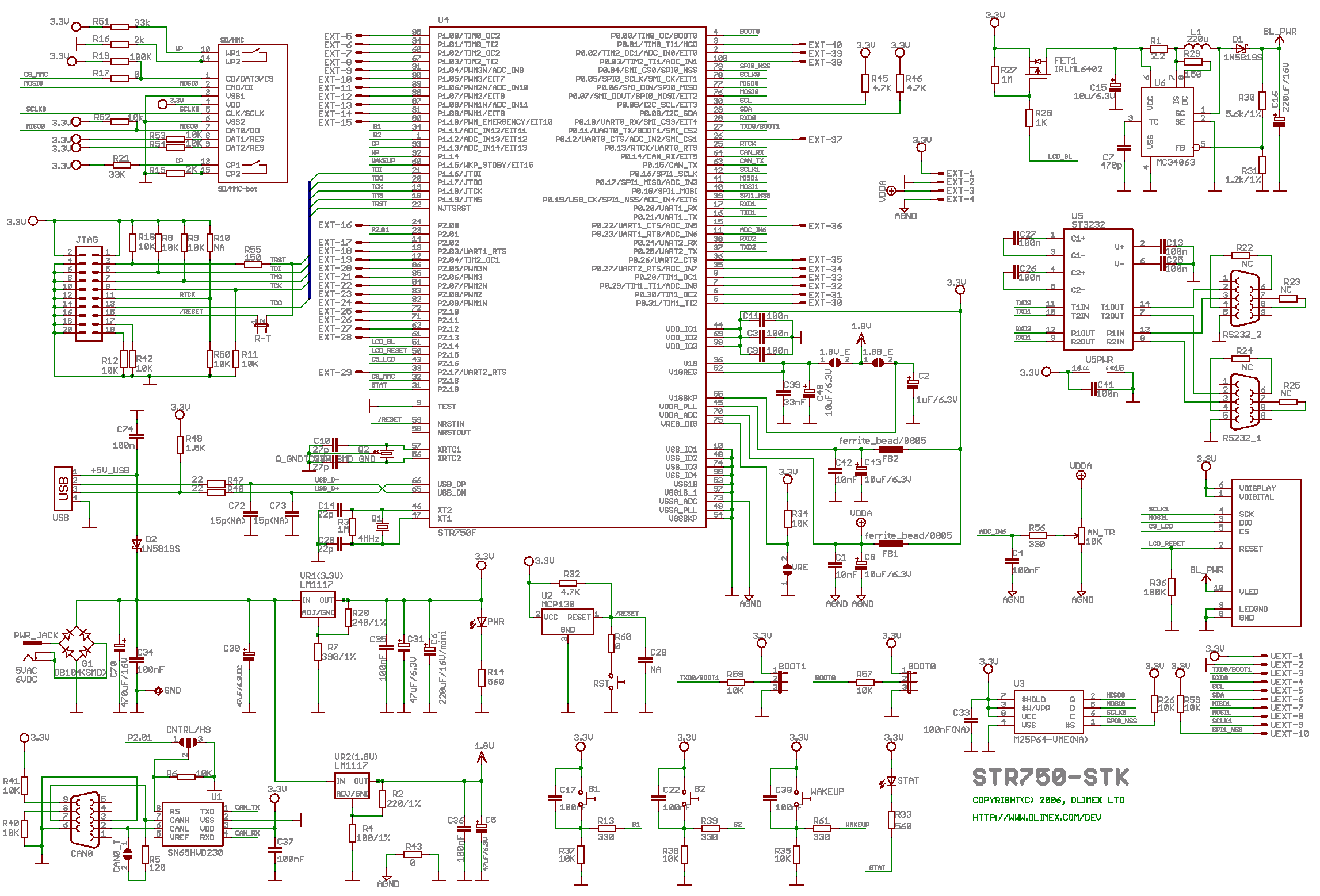

Schematic diagram STR-750-STK

Click to enlarge

Other Names:

STR750STK, STR 750 STK
