Version 03.01, June 2018. Protocol and logic. Miscellaneous. Rohde & Schwarz
Text Version of Document

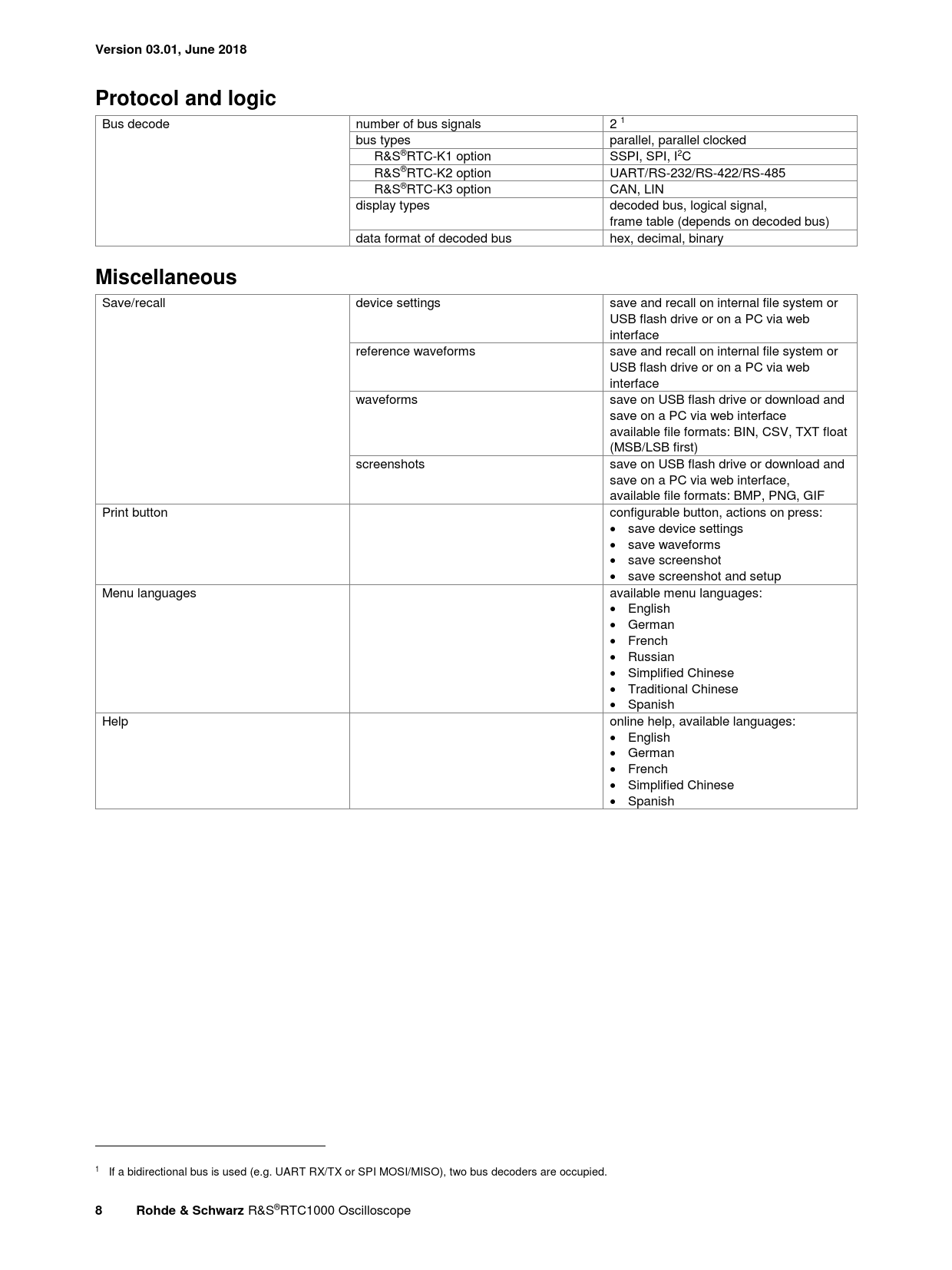

Version 03.01, June 2018 Protocol and logic
Bus decode number of bus signals 2 1 bus types parallel, parallel clocked R&S®RTC-K1 option SSPI, SPI, I2C R&S®RTC-K2 option UART/RS-232/RS-422/RS-485 R&S®RTC-K3 option CAN, LIN display types decoded bus, logical signal, frame table (depends on decoded bus) data format of decoded bus hex, decimal, binary
Miscellaneous
Save/recall device settings save and recall on internal file system or USB flash drive or on a PC via web interface reference waveforms save and recall on internal file system or USB flash drive or on a PC via web interface waveforms save on USB flash drive or download and save on a PC via web interface available file formats: BIN, CSV, TXT float (MSB/LSB first) screenshots save on USB flash drive or download and save on a PC via web interface, available file formats: BMP, PNG, GIF Print button configurable button, actions on press: save device settings save waveforms save screenshot save screenshot and setup Menu languages available menu languages: English German French Russian Simplified Chinese Traditional Chinese Spanish Help online help, available languages: English German French Simplified Chinese Spanish
1 If a bidirectional bus is used (e.g. UART RX/TX or SPI MOSI/MISO), two bus decoders are occupied.
8 Rohde & Schwarz
R&S®RTC1000 Oscilloscope
Bus decode number of bus signals 2 1 bus types parallel, parallel clocked R&S®RTC-K1 option SSPI, SPI, I2C R&S®RTC-K2 option UART/RS-232/RS-422/RS-485 R&S®RTC-K3 option CAN, LIN display types decoded bus, logical signal, frame table (depends on decoded bus) data format of decoded bus hex, decimal, binary
Miscellaneous
Save/recall device settings save and recall on internal file system or USB flash drive or on a PC via web interface reference waveforms save and recall on internal file system or USB flash drive or on a PC via web interface waveforms save on USB flash drive or download and save on a PC via web interface available file formats: BIN, CSV, TXT float (MSB/LSB first) screenshots save on USB flash drive or download and save on a PC via web interface, available file formats: BMP, PNG, GIF Print button configurable button, actions on press: save device settings save waveforms save screenshot save screenshot and setup Menu languages available menu languages: English German French Russian Simplified Chinese Traditional Chinese Spanish Help online help, available languages: English German French Simplified Chinese Spanish
1 If a bidirectional bus is used (e.g. UART RX/TX or SPI MOSI/MISO), two bus decoders are occupied.
8 Rohde & Schwarz
R&S®RTC1000 Oscilloscope
