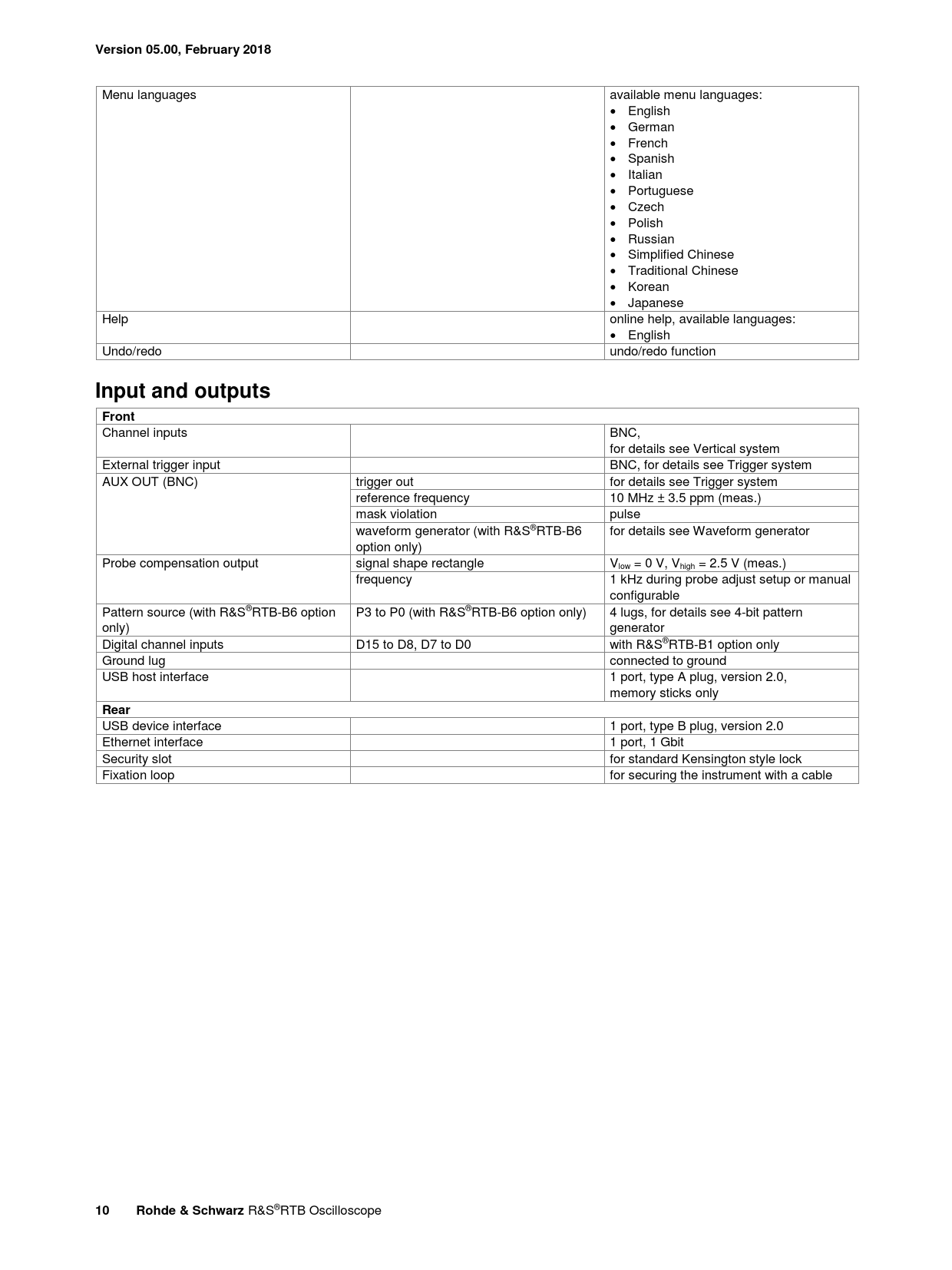

Version 05.00, February 2018. Input and outputs. Front. Rear. Rohde & Schwarz
Text Version of Document
Version 05.00, February 2018
Menu languages available menu languages: English German French Spanish Italian Portuguese Czech Polish Russian Simplified Chinese Traditional Chinese Korean Japanese Help online help, available languages: English Undo/redo undo/redo function
Input and outputs Front
Channel inputs BNC, for details see Vertical system External trigger input BNC, for details see Trigger system AUX OUT (BNC) trigger out for details see Trigger system reference frequency 10 MHz ± 3.5 ppm (meas.) mask violation pulse waveform generator (with R&S®RTB-B6 for details see Waveform generator option only) Probe compensation output signal shape rectangle Vlow = 0 V, Vhigh = 2.5 V (meas.) frequency 1 kHz during probe adjust setup or manual configurable Pattern source (with R&S®RTB-B6 option P3 to P0 (with R&S®RTB-B6 option only) 4 lugs, for details see 4-bit pattern only) generator Digital channel inputs D15 to D8, D7 to D0 with R&S®RTB-B1 option only Ground lug connected to ground USB host interface 1 port, type A plug, version 2.0, memory sticks only
Rear
USB device interface 1 port, type B plug, version 2.0 Ethernet interface 1 port, 1 Gbit Security slot for standard Kensington style lock Fixation loop for securing the instrument with a cable
