Datasheet RTM3000 oscilloscope (Rohde&Schwarz) - 5

ManufacturerRohde&Schwarz
DescriptionOscilloscope Specifications
Pages / Page32 / 5 — Version 05.01, March 2018. Horizontal system. Rohde & Schwarz
Revision05.01
File Format / SizePDF / 2.2 Mb
Document LanguageEnglish

Version 05.01, March 2018. Horizontal system. Rohde & Schwarz

Version 05.01, March 2018 Horizontal system Rohde & Schwarz

Text Version of Document

Version 05.01, March 2018

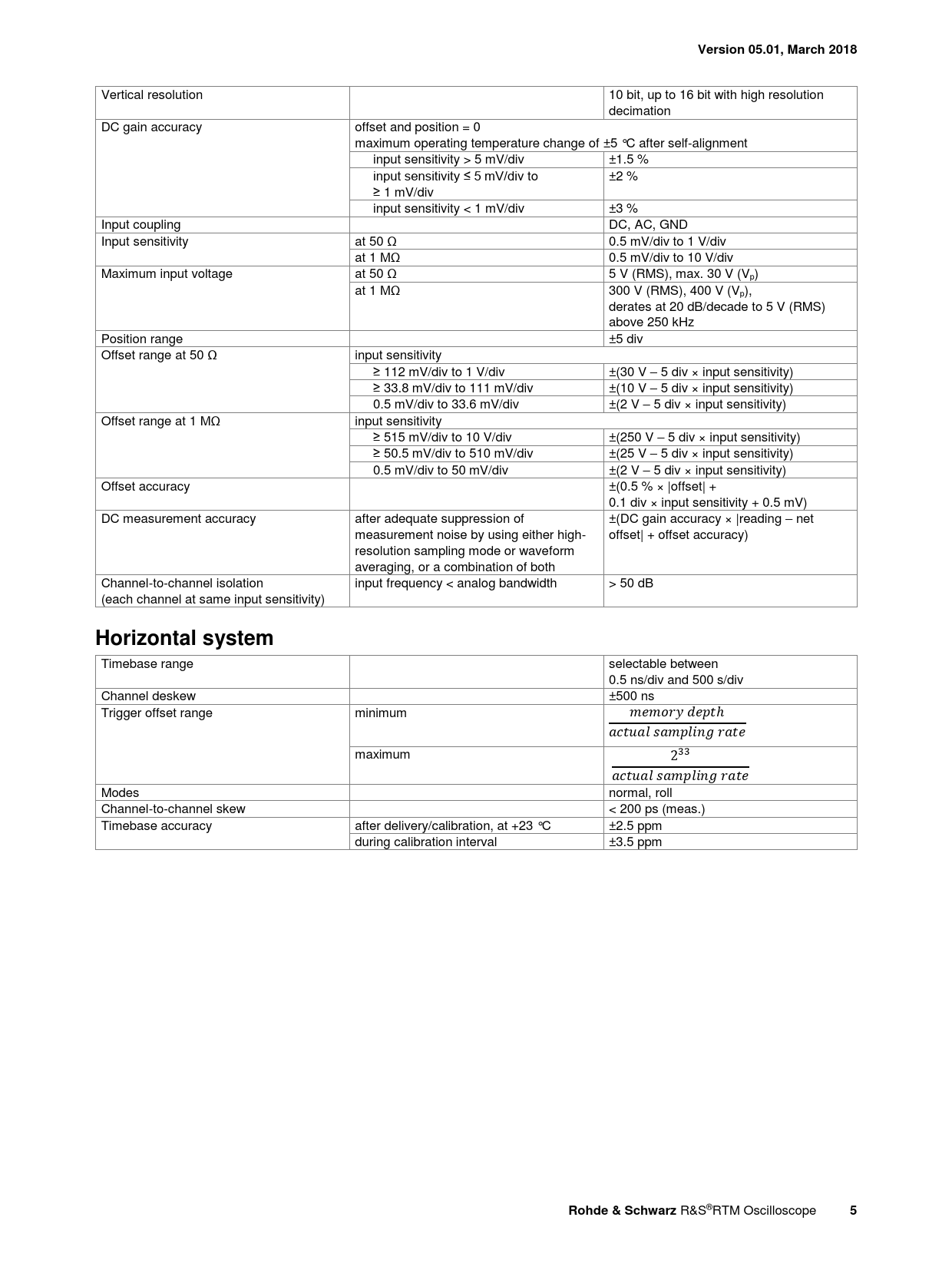

Vertical resolution 10 bit, up to 16 bit with high resolution decimation DC gain accuracy offset and position = 0 maximum operating temperature change of ±5 °C after self-alignment input sensitivity > 5 mV/div ±1.5 % input sensitivity ≤ 5 mV/div to ±2 % ≥ 1 mV/div input sensitivity < 1 mV/div ±3 % Input coupling DC, AC, GND Input sensitivity at 50 Ω 0.5 mV/div to 1 V/div at 1 MΩ 0.5 mV/div to 10 V/div Maximum input voltage at 50 Ω 5 V (RMS), max. 30 V (Vp) at 1 MΩ 300 V (RMS), 400 V (Vp), derates at 20 dB/decade to 5 V (RMS) above 250 kHz Position range ±5 div Offset range at 50 Ω input sensitivity ≥ 112 mV/div to 1 V/div ±(30 V – 5 div × input sensitivity) ≥ 33.8 mV/div to 111 mV/div ±(10 V – 5 div × input sensitivity) 0.5 mV/div to 33.6 mV/div ±(2 V – 5 div × input sensitivity) Offset range at 1 MΩ input sensitivity ≥ 515 mV/div to 10 V/div ±(250 V – 5 div × input sensitivity) ≥ 50.5 mV/div to 510 mV/div ±(25 V – 5 div × input sensitivity) 0.5 mV/div to 50 mV/div ±(2 V – 5 div × input sensitivity) Offset accuracy ±(0.5 % × |offset| + 0.1 div × input sensitivity + 0.5 mV) DC measurement accuracy after adequate suppression of ±(DC gain accuracy × |reading – net measurement noise by using either high- offset| + offset accuracy) resolution sampling mode or waveform averaging, or a combination of both Channel-to-channel isolation input frequency < analog bandwidth > 50 dB (each channel at same input sensitivity)
Horizontal system
Timebase range selectable between 0.5 ns/div and 500 s/div Channel deskew ±500 ns Trigger offset range minimum 𝑚𝑒𝑚𝑜𝑟𝑦 𝑑𝑒𝑝𝑡ℎ 𝑎𝑐𝑡𝑢𝑎𝑙 𝑠𝑎𝑚𝑝𝑙𝑖𝑛𝑔 𝑟𝑎𝑡𝑒 maximum 233 𝑎𝑐𝑡𝑢𝑎𝑙 𝑠𝑎𝑚𝑝𝑙𝑖𝑛𝑔 𝑟𝑎𝑡𝑒 Modes normal, roll Channel-to-channel skew < 200 ps (meas.) Timebase accuracy after delivery/calibration, at +23 °C ±2.5 ppm during calibration interval ±3.5 ppm
