Datasheet RT-Zxx high bandwidth probes (Rohde&Schwarz) - 6
| Manufacturer | Rohde&Schwarz |
| Description | RT-Zxx High Bandwidth Probes Specifications |
| Pages / Page | 44 / 6 — Version 22.00, January 2018. R&S®RT-ZZ80 transmission line probe. … |
| Revision | 22.00 |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
Version 22.00, January 2018. R&S®RT-ZZ80 transmission line probe. R&S®RT-ZZ80. Step response. Frequency response
Text Version of Document
link to page 4

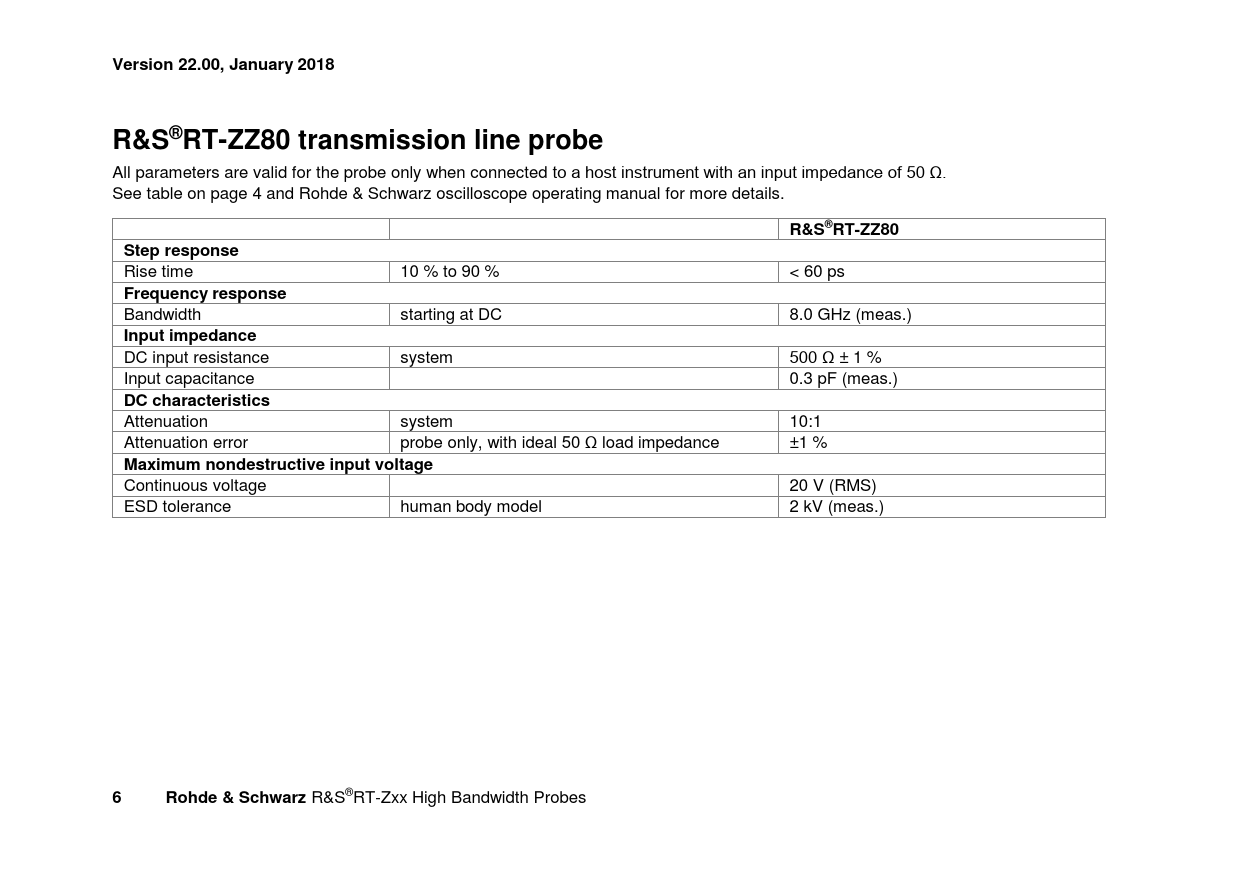

Version 22.00, January 2018 R&S®RT-ZZ80 transmission line probe
All parameters are valid for the probe only when connected to a host instrument with an input impedance of 50 Ω. See table on page 4 and Rohde & Schwarz oscilloscope operating manual for more details.
R&S®RT-ZZ80 Step response
Rise time 10 % to 90 % < 60 ps
Frequency response
Bandwidth starting at DC 8.0 GHz (meas.)
Input impedance
DC input resistance system 500 Ω ± 1 % Input capacitance 0.3 pF (meas.)
DC characteristics
Attenuation system 10:1 Attenuation error probe only, with ideal 50 Ω load impedance ±1 %
Maximum nondestructive input voltage
Continuous voltage 20 V (RMS) ESD tolerance human body model 2 kV (meas.)
6 Rohde & Schwarz
R&S®RT-Zxx High Bandwidth Probes
Version 22.00, January 2018 R&S®RT-ZZ80 transmission line probe
All parameters are valid for the probe only when connected to a host instrument with an input impedance of 50 Ω. See table on page 4 and Rohde & Schwarz oscilloscope operating manual for more details.
R&S®RT-ZZ80 Step response
Rise time 10 % to 90 % < 60 ps
Frequency response
Bandwidth starting at DC 8.0 GHz (meas.)
Input impedance
DC input resistance system 500 Ω ± 1 % Input capacitance 0.3 pF (meas.)
DC characteristics
Attenuation system 10:1 Attenuation error probe only, with ideal 50 Ω load impedance ±1 %
Maximum nondestructive input voltage
Continuous voltage 20 V (RMS) ESD tolerance human body model 2 kV (meas.)
6 Rohde & Schwarz
R&S®RT-Zxx High Bandwidth Probes
