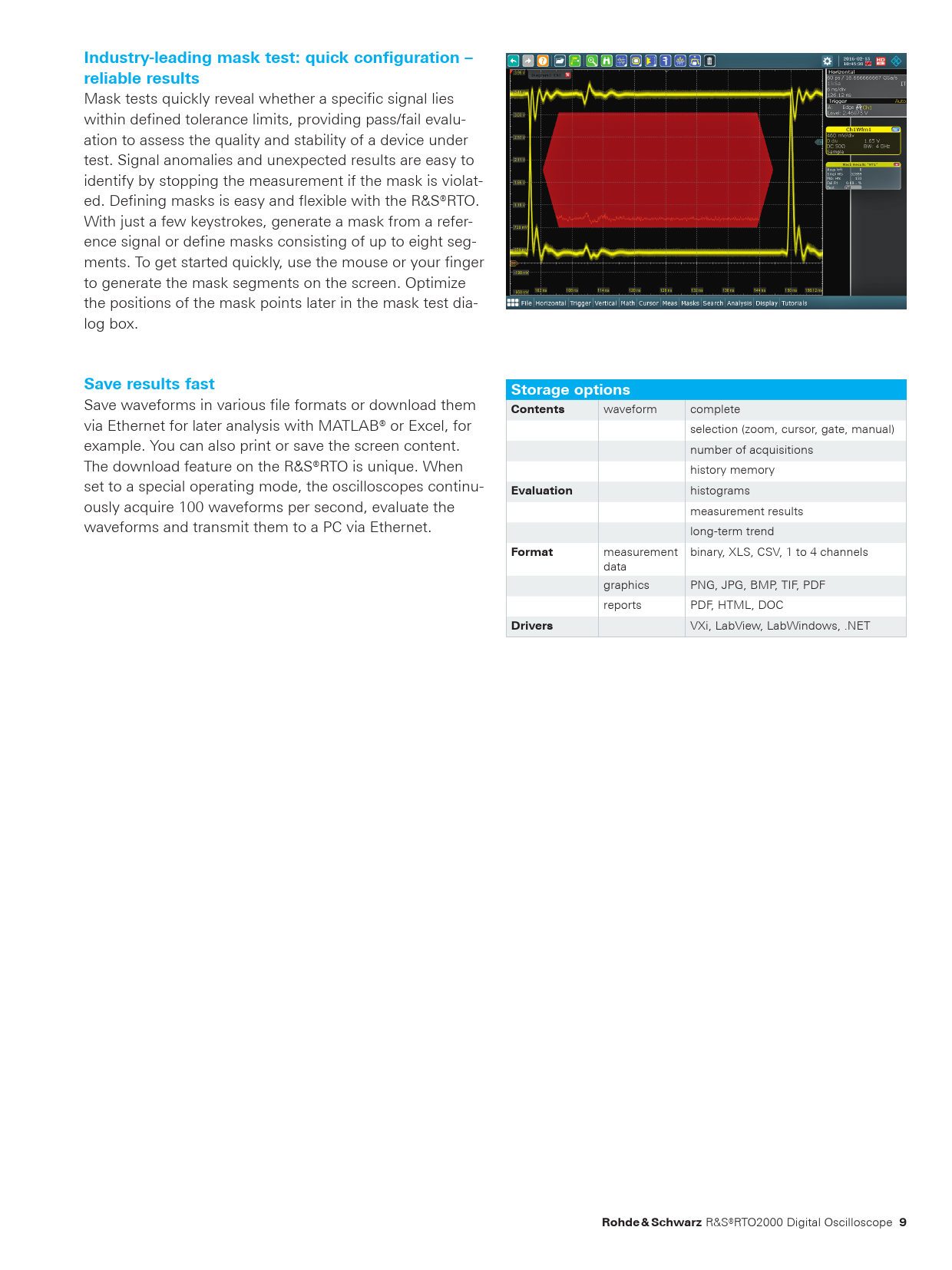

Industry-leading mask test: quick configuration – reliable results
Mask tests quickly reveal whether a specific signal lies within defined tolerance limits, providing pass/fail evalu- ation to assess the quality and stability of a device under test. Signal anomalies and unexpected results are easy to identify by stopping the measurement if the mask is violat- ed. Defining masks is easy and flexible with the R&S®RTO. With just a few keystrokes, generate a mask from a refer- ence signal or define masks consisting of up to eight seg- ments. To get started quickly, use the mouse or your finger to generate the mask segments on the screen. Optimize the positions of the mask points later in the mask test dia- log box.
Save results fast Storage options
Save waveforms in various file formats or download them
Contents
waveform complete via Ethernet for later analysis with MATLAB® or Excel, for selection (zoom, cursor, gate, manual) example. You can also print or save the screen content. number of acquisitions The download feature on the R&S®RTO is unique. When history memory set to a special operating mode, the oscilloscopes continu-
Evaluation
histograms ously acquire 100 waveforms per second, evaluate the measurement results waveforms and transmit them to a PC via Ethernet. long-term trend
Format
measurement binary, XLS, CSV, 1 to 4 channels data graphics PNG, JPG, BMP, TIF, PDF reports PDF, HTML, DOC
Drivers
VXi, LabView, LabWindows, .NET
Rohde & Schwarz
R&S®RTO2000 Digital Oscilloscope
9
RTO2000_bro_en_3607-2684-12_v0901.indd 9 23.11.2017 14:54:13
