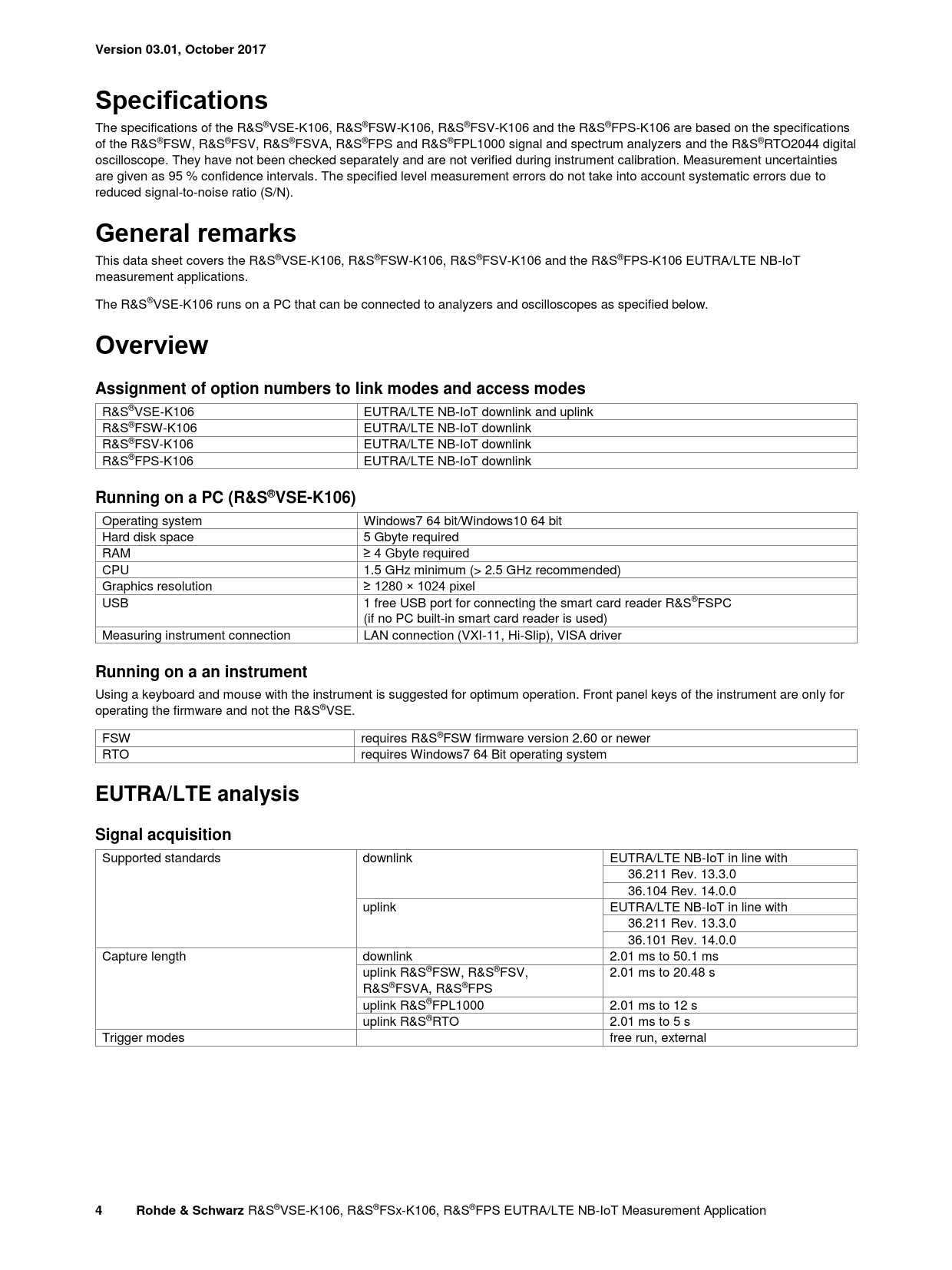

Version 03.01, October 2017. Specifications. General remarks. Overview
Text Version of Document
Version 03.01, October 2017 Specifications
The specifications of the R&S®VSE-K106, R&S®FSW-K106, R&S®FSV-K106 and the R&S®FPS-K106 are based on the specifications of the R&S®FSW, R&S®FSV, R&S®FSVA, R&S®FPS and R&S®FPL1000 signal and spectrum analyzers and the R&S®RTO2044 digital oscilloscope. They have not been checked separately and are not verified during instrument calibration. Measurement uncertainties are given as 95 % confidence intervals. The specified level measurement errors do not take into account systematic errors due to reduced signal-to-noise ratio (S/N).
General remarks
This data sheet covers the R&S®VSE-K106, R&S®FSW-K106, R&S®FSV-K106 and the R&S®FPS-K106 EUTRA/LTE NB-IoT measurement applications. The R&S®VSE-K106 runs on a PC that can be connected to analyzers and oscilloscopes as specified below.
Overview Assignment of option numbers to link modes and access modes
R&S®VSE-K106 EUTRA/LTE NB-IoT downlink and uplink R&S®FSW-K106 EUTRA/LTE NB-IoT downlink R&S®FSV-K106 EUTRA/LTE NB-IoT downlink R&S®FPS-K106 EUTRA/LTE NB-IoT downlink
Running on a PC (R&S®VSE-K106)
Operating system Windows7 64 bit/Windows10 64 bit Hard disk space 5 Gbyte required RAM ≥ 4 Gbyte required CPU 1.5 GHz minimum (> 2.5 GHz recommended) Graphics resolution ≥ 1280 × 1024 pixel USB 1 free USB port for connecting the smart card reader R&S®FSPC (if no PC built-in smart card reader is used) Measuring instrument connection LAN connection (VXI-11, Hi-Slip), VISA driver
Running on a an instrument
Using a keyboard and mouse with the instrument is suggested for optimum operation. Front panel keys of the instrument are only for operating the firmware and not the R&S®VSE. FSW requires R&S®FSW firmware version 2.60 or newer RTO requires Windows7 64 Bit operating system
EUTRA/LTE analysis Signal acquisition
Supported standards downlink EUTRA/LTE NB-IoT in line with 36.211 Rev. 13.3.0 36.104 Rev. 14.0.0 uplink EUTRA/LTE NB-IoT in line with 36.211 Rev. 13.3.0 36.101 Rev. 14.0.0 Capture length downlink 2.01 ms to 50.1 ms uplink R&S®FSW, R&S®FSV, 2.01 ms to 20.48 s R&S®FSVA, R&S®FPS uplink R&S®FPL1000 2.01 ms to 12 s uplink R&S®RTO 2.01 ms to 5 s Trigger modes free run, external
