Datasheet FSW-K106, FSV-K106, FPS-K106, VSE-K106 Narrowband IoT (Rohde&Schwarz) - 7
| Manufacturer | Rohde&Schwarz |
| Description | EUTRA/LTE NB-IoT Measurement Application |
| Pages / Page | 8 / 7 — Version 03.01, October 2017. Transmitted signal quality UE. EVM. … |
| Revision | 03.01 |
| File Format / Size | PDF / 1.5 Mb |
| Document Language | English |
Version 03.01, October 2017. Transmitted signal quality UE. EVM. R&S®FSW. R&S®FSVA. R&S®FPS. R&S®FPL1000
Text Version of Document
link to page 7

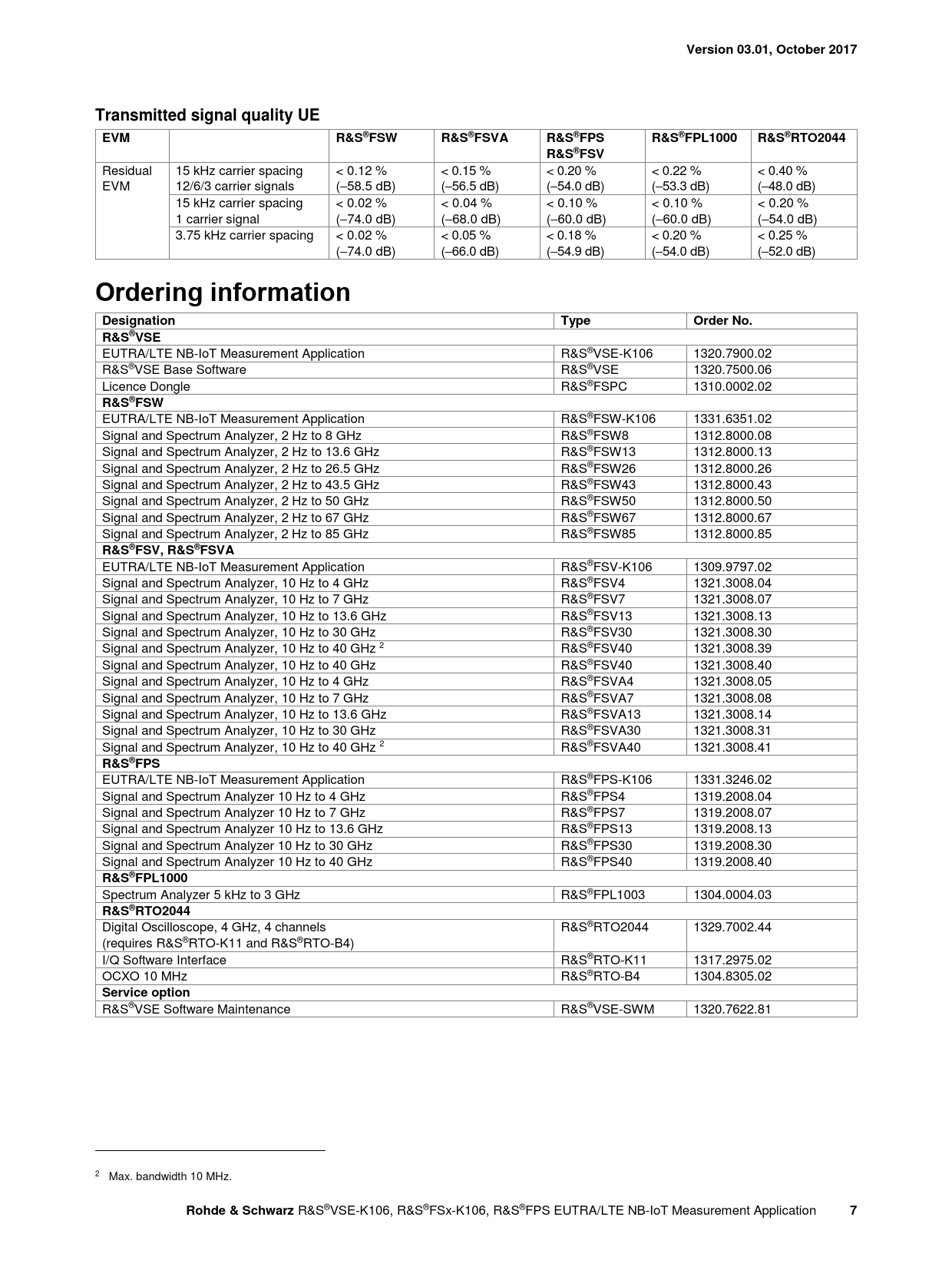

Version 03.01, October 2017 Transmitted signal quality UE EVM R&S®FSW R&S®FSVA R&S®FPS R&S®FPL1000 R&S®RTO2044 R&S®FSV
Residual 15 kHz carrier spacing < 0.12 % < 0.15 % < 0.20 % < 0.22 % < 0.40 % EVM 12/6/3 carrier signals (–58.5 dB) (–56.5 dB) (–54.0 dB) (–53.3 dB) (–48.0 dB) 15 kHz carrier spacing < 0.02 % < 0.04 % < 0.10 % < 0.10 % < 0.20 % 1 carrier signal (–74.0 dB) (–68.0 dB) (–60.0 dB) (–60.0 dB) (–54.0 dB) 3.75 kHz carrier spacing < 0.02 % < 0.05 % < 0.18 % < 0.20 % < 0.25 % (–74.0 dB) (–66.0 dB) (–54.9 dB) (–54.0 dB) (–52.0 dB)
Ordering information Designation Type Order No. R&S®VSE
EUTRA/LTE NB-IoT Measurement Application R&S®VSE-K106 1320.7900.02 R&S®VSE Base Software R&S®VSE 1320.7500.06 Licence Dongle R&S®FSPC 1310.0002.02
R&S®FSW
EUTRA/LTE NB-IoT Measurement Application
R&S®FSW-K106 1331.6351.02 Signal and Spectrum Analyzer, 2 Hz to 8 GHz R&S®FSW8 1312.8000.08 Signal and Spectrum Analyzer, 2 Hz to 13.6 GHz R&S®FSW13 1312.8000.13 Signal and Spectrum Analyzer, 2 Hz to 26.5 GHz R&S®FSW26 1312.8000.26 Signal and Spectrum Analyzer, 2 Hz to 43.5 GHz R&S®FSW43 1312.8000.43 Signal and Spectrum Analyzer, 2 Hz to 50 GHz R&S®FSW50 1312.8000.50 Signal and Spectrum Analyzer, 2 Hz to 67 GHz R&S®FSW67 1312.8000.67 Signal and Spectrum Analyzer, 2 Hz to 85 GHz R&S®FSW85 1312.8000.85
R&S®FSV, R&S®FSVA
EUTRA/LTE NB-IoT Measurement Application R&S®FSV-K106 1309.9797.02 Signal and Spectrum Analyzer, 10 Hz to 4 GHz R&S®FSV4 1321.3008.04 Signal and Spectrum Analyzer, 10 Hz to 7 GHz R&S®FSV7 1321.3008.07 Signal and Spectrum Analyzer, 10 Hz to 13.6 GHz R&S®FSV13 1321.3008.13 Signal and Spectrum Analyzer, 10 Hz to 30 GHz R&S®FSV30 1321.3008.30 Signal and Spectrum Analyzer, 10 Hz to 40 GHz 2 R&S®FSV40 1321.3008.39 Signal and Spectrum Analyzer, 10 Hz to 40 GHz R&S®FSV40 1321.3008.40 Signal and Spectrum Analyzer, 10 Hz to 4 GHz R&S®FSVA4 1321.3008.05 Signal and Spectrum Analyzer, 10 Hz to 7 GHz R&S®FSVA7 1321.3008.08 Signal and Spectrum Analyzer, 10 Hz to 13.6 GHz R&S®FSVA13 1321.3008.14 Signal and Spectrum Analyzer, 10 Hz to 30 GHz R&S®FSVA30 1321.3008.31 Signal and Spectrum Analyzer, 10 Hz to 40 GHz 2 R&S®FSVA40 1321.3008.41
R&S®FPS
EUTRA/LTE NB-IoT Measurement Application R&S®FPS-K106 1331.3246.02 Signal and Spectrum Analyzer
10 Hz to 4 GHz R&S®FPS4 1319.2008.04 Signal and Spectrum Analyzer 10 Hz to 7 GHz R&S®FPS7 1319.2008.07 Signal and Spectrum Analyzer 10 Hz to 13.6 GHz R&S®FPS13 1319.2008.13 Signal and Spectrum Analyzer 10 Hz to 30 GHz R&S®FPS30 1319.2008.30 Signal and Spectrum Analyzer 10 Hz to 40 GHz R&S®FPS40 1319.2008.40
R&S®FPL1000
Spectrum Analyzer 5 kHz to 3 GHz
R&S®FPL1003 1304.0004.03
R&S®RTO2044
Digital Oscilloscope, 4 GHz, 4 channels R&S®RTO2044 1329.7002.44 (requires R&S®RTO-K11 and R&S®RTO-B4) I/Q Software Interface R&S®RTO-K11 1317.2975.02 OCXO 10 MHz R&S®RTO-B4 1304.8305.02
Service option
R&S®VSE Software Maintenance R&S®VSE-SWM 1320.7622.81
2 Max. bandwidth 10 MHz.
