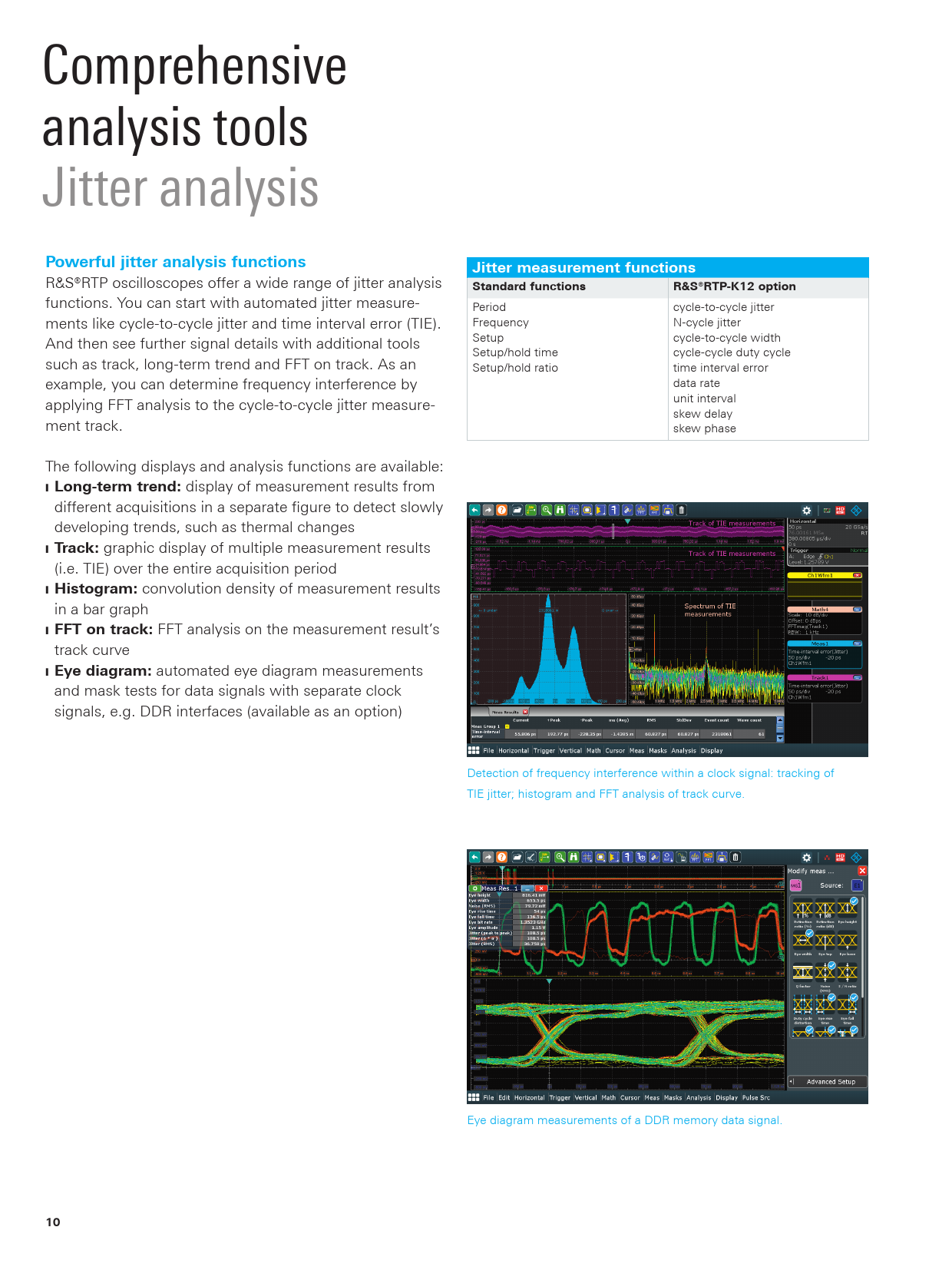

Powerful jitter analysis functions. Jitter measurement functions. Standard functions. R&S®RTP-K12 option. Long-term trend:
Text Version of Document
Comprehensive analysis tools Jitter analysis
Powerful jitter analysis functions Jitter measurement functions
R&S®RTP oscilloscopes offer a wide range of jitter analysis
Standard functions R&S®RTP-K12 option
functions. You can start with automated jitter measure- Period cycle-to-cycle jitter ments like cycle-to-cycle jitter and time interval error (TIE). Frequency N-cycle jitter And then see further signal details with additional tools Setup cycle-to-cycle width Setup/hold time cycle-cycle duty cycle such as track, long-term trend and FFT on track. As an Setup/hold ratio time interval error example, you can determine frequency interference by data rate applying FFT analysis to the cycle-to-cycle jitter measure- unit interval skew delay ment track. skew phase The following displays and analysis functions are available: ❙
Long-term trend:
display of measurement results from different acquisitions in a separate figure to detect slowly developing trends, such as thermal changes ❙
Track:
graphic display of multiple measurement results (i.e. TIE) over the entire acquisition period ❙
Histogram:
convolution density of measurement results in a bar graph ❙
FFT on track:
FFT analysis on the measurement result’s track curve ❙
Eye diagram:
automated eye diagram measurements and mask tests for data signals with separate clock signals, e.g. DDR interfaces (available as an option) Detection of frequency interference within a clock signal: tracking of TIE jitter; histogram and FFT analysis of track curve. Eye diagram measurements of a DDR memory data signal.
