Datasheet, Schematics, Product Discription HC-SR501 - 3

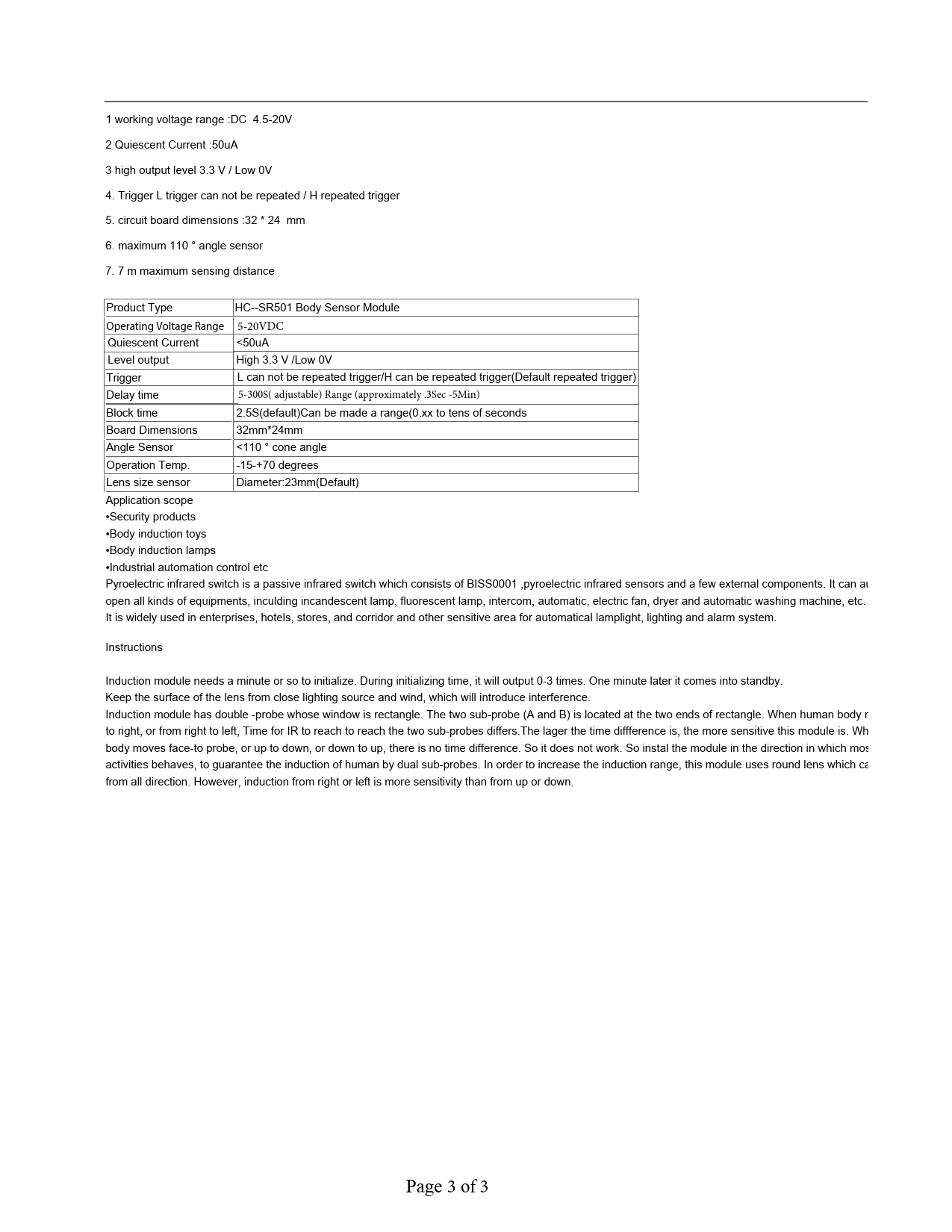

1 working voltage range :DC 4.5-20V 2 Quiescent Current :50uA 3 high output level 3.3 V / Low 0V 4. Trigger L trigger can not be repeated / H repeated trigger 5. circuit board dimensions :32 * 24 mm 6. maximum 110 ° angle sensor 7. 7 m maximum sensing distance Product Type HC--SR501 Body Sensor Module Operating Voltage Range 5-20VDC Quiescent Current <50uA Level output High 3.3 V /Low 0V Trigger L can not be repeated trigger/H can be repeated trigger(Default repeated trigger) Delay time 5-300S( adjustable) Range (approximately .3Sec -5Min) Block time 2.5S(default)Can be made a range(0.xx to tens of seconds Board Dimensions 32mm*24mm Angle Sensor <110 ° cone angle Operation Temp. -15-+70 degrees Lens size sensor Diameter:23mm(Default) Application scope •Security products •Body induction toys •Body induction lamps •Industrial automation control etc Pyroelectric infrared switch is a passive infrared switch which consists of BISS0001 ,pyroelectric infrared sensors and a few external components. It can autom tically open all kinds of equipments, inculding incandescent lamp, fluorescent lamp, intercom, automatic, electric fan, dryer and automatic washing machine, etc. It is widely used in enterprises, hotels, stores, and corridor and other sensitive area for automatical lamplight, lighting and alarm system. Instructions Induction module needs a minute or so to initialize. During initializing time, it will output 0-3 times. One minute later it comes into standby. Keep the surface of the lens from close lighting source and wind, which will introduce interference. Induction module has double -probe whose window is rectangle. The two sub-probe (A and B) is located at the two ends of rectangle. When human body move from l ft to right, or from right to left, Time for IR to reach to reach the two sub-probes differs.The lager the time diffference is, the more sensitive this module is. When hum n body moves face-to probe, or up to down, or down to up, there is no time difference. So it does not work. So instal the module in the direction in which most hum n activities behaves, to guarantee the induction of human by dual sub-probes. In order to increase the induction range, this module uses round lens which can induct IR from all direction. However, induction from right or left is more sensitivity than from up or down. Page 3 of 3
