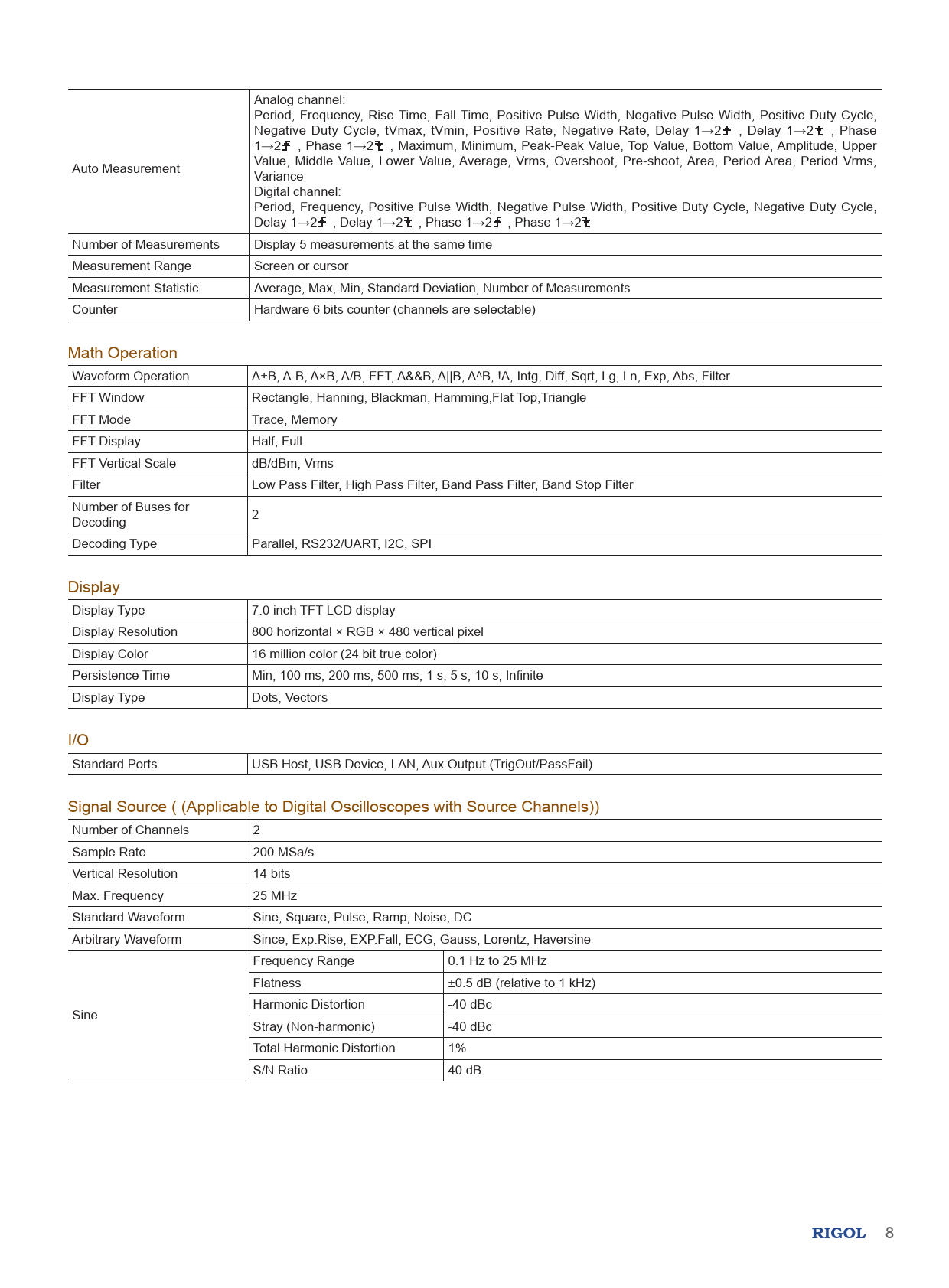

Datasheet 1000Z Series (Rigol) - 9

Analog channel: Period, Frequency, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, tVmax, tVmin, Positive Rate, Negative Rate, Delay 1→2 , Delay 1→2 , Phase 1→2 , Phase 1→2 , Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Upper Auto Measurement Value, Middle Value, Lower Value, Average, Vrms, Overshoot, Pre-shoot, Area, Period Area, Period Vrms, Variance Digital channel: Period, Frequency, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, Delay 1→2 , Delay 1→2 , Phase 1→2 , Phase 1→2 Number of Measurements Display 5 measurements at the same time Measurement Range Screen or cursor Measurement Statistic Average, Max, Min, Standard Deviation, Number of Measurements Counter Hardware 6 bits counter (channels are selectable) Math Operation Waveform Operation A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, Filter FFT Window Rectangle, Hanning, Blackman, Hamming,Flat Top,Triangle FFT Mode Trace, Memory FFT Display Half, Full FFT Vertical Scale dB/dBm, Vrms Filter Low Pass Filter, High Pass Filter, Band Pass Filter, Band Stop Filter Number of Buses for Decoding 2 Decoding Type Parallel, RS232/UART, I2C, SPI Display Display Type 7.0 inch TFT LCD display Display Resolution 800 horizontal × RGB × 480 vertical pixel Display Color 16 million color (24 bit true color) Persistence Time Min, 100 ms, 200 ms, 500 ms, 1 s, 5 s, 10 s, Infinite Display Type Dots, Vectors I/O Standard Ports USB Host, USB Device, LAN, Aux Output (TrigOut/PassFail) Signal Source ( (Applicable to Digital Oscilloscopes with Source Channels)) Number of Channels 2 Sample Rate 200 MSa/s Vertical Resolution 14 bits Max. Frequency 25 MHz Standard Waveform Sine, Square, Pulse, Ramp, Noise, DC Arbitrary Waveform Since, Exp.Rise, EXP.Fall, ECG, Gauss, Lorentz, Haversine Frequency Range 0.1 Hz to 25 MHz Flatness ±0.5 dB (relative to 1 kHz) Harmonic Distortion -40 dBc Sine Stray (Non-harmonic) -40 dBc Total Harmonic Distortion 1% S/N Ratio 40 dB
