Datasheet Arduino Nicla Sense ME (Arduino) - 8
| Manufacturer | Arduino |
| Description | The Nicla Sense ME houses 4 low power sensors in a small footprint enabling powerful data fusion capabilities on the edge |
| Pages / Page | 21 / 8 — Battery. VBATT. connector. I2C LED. BQ25120. Driver. VESLOV. … |
| File Format / Size | PDF / 10.6 Mb |
| Document Language | English |

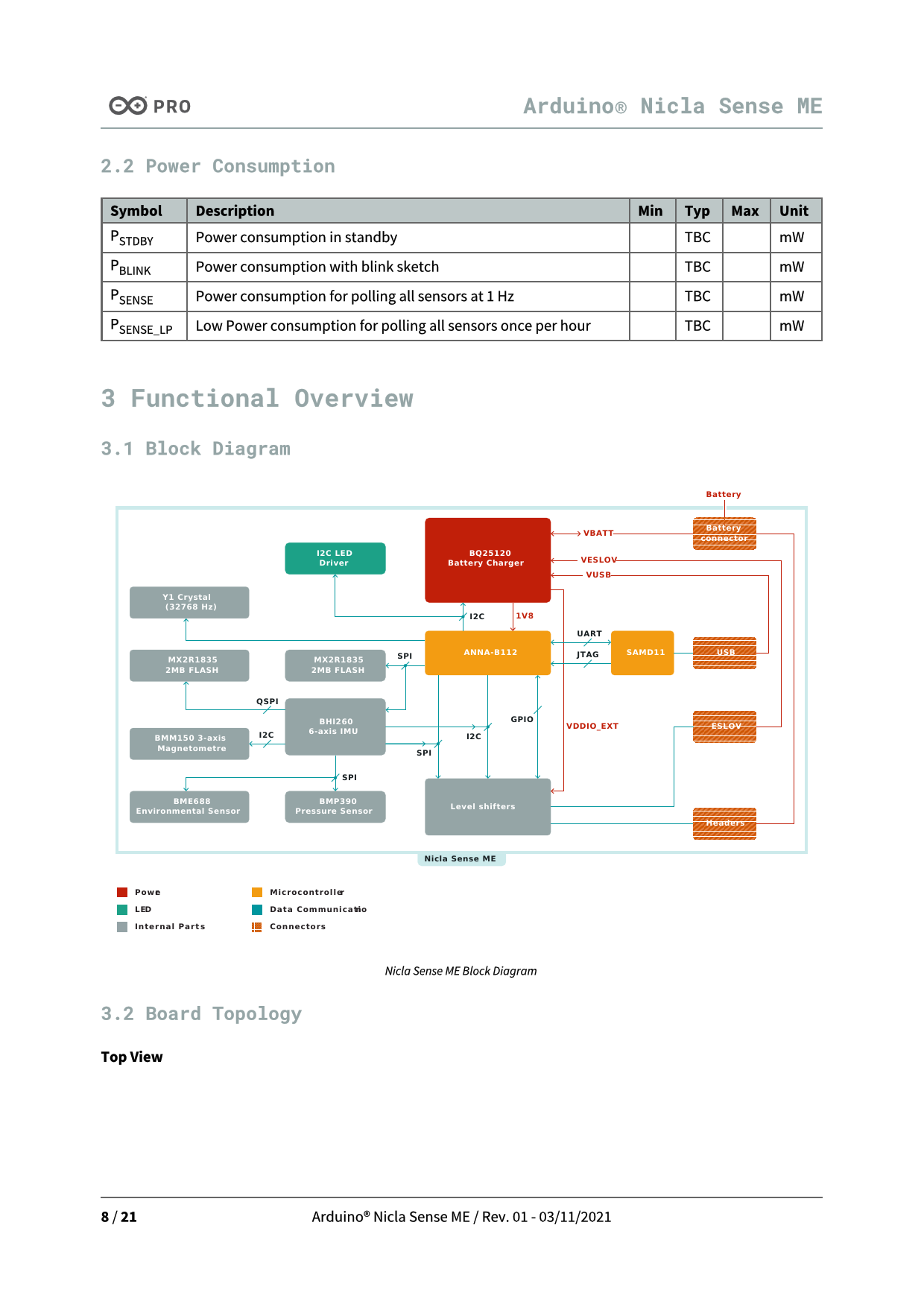

Battery. VBATT. connector. I2C LED. BQ25120. Driver. VESLOV. Battery Charger. VUSB. Y1 Crystal. (32768 Hz). I2C. 1V8. UART. ANNA-B112. SAMD11. JTAG. USB
Text Version of Document
Battery Battery VBATT connector I2C LED BQ25120 Driver VESLOV Battery Charger VUSB Y1 Crystal (32768 Hz) I2C 1V8 UART ANNA-B112 SAMD11 JTAG USB MX2R1835 MX2R1835 SPI 2MB FLASH 2MB FLASH QSPI BHI260 GPIO VDDIO_EXT ESLOV 6-axis IMU I2C I2C BMM150 3-axis Magnetometre SPI SPI BME688 BMP390 Level shifters Environmental Sensor Pressure Sensor Headers Nicla Sense ME Powe r Microcontroller LED Data Communicati no Internal Part s Connectors
