| Manufacturer | Analog Devices |
| Description | 24-Bit µPower No Latency ∆Σ™ ADC in SO-8 |
| Pages / Page | 40 / 40 — PCB LAYOUT A D FIL. Component Side. Component Side Solder Mask. Component … |
| File Format / Size | PDF / 481 Kb |
| Document Language | English |

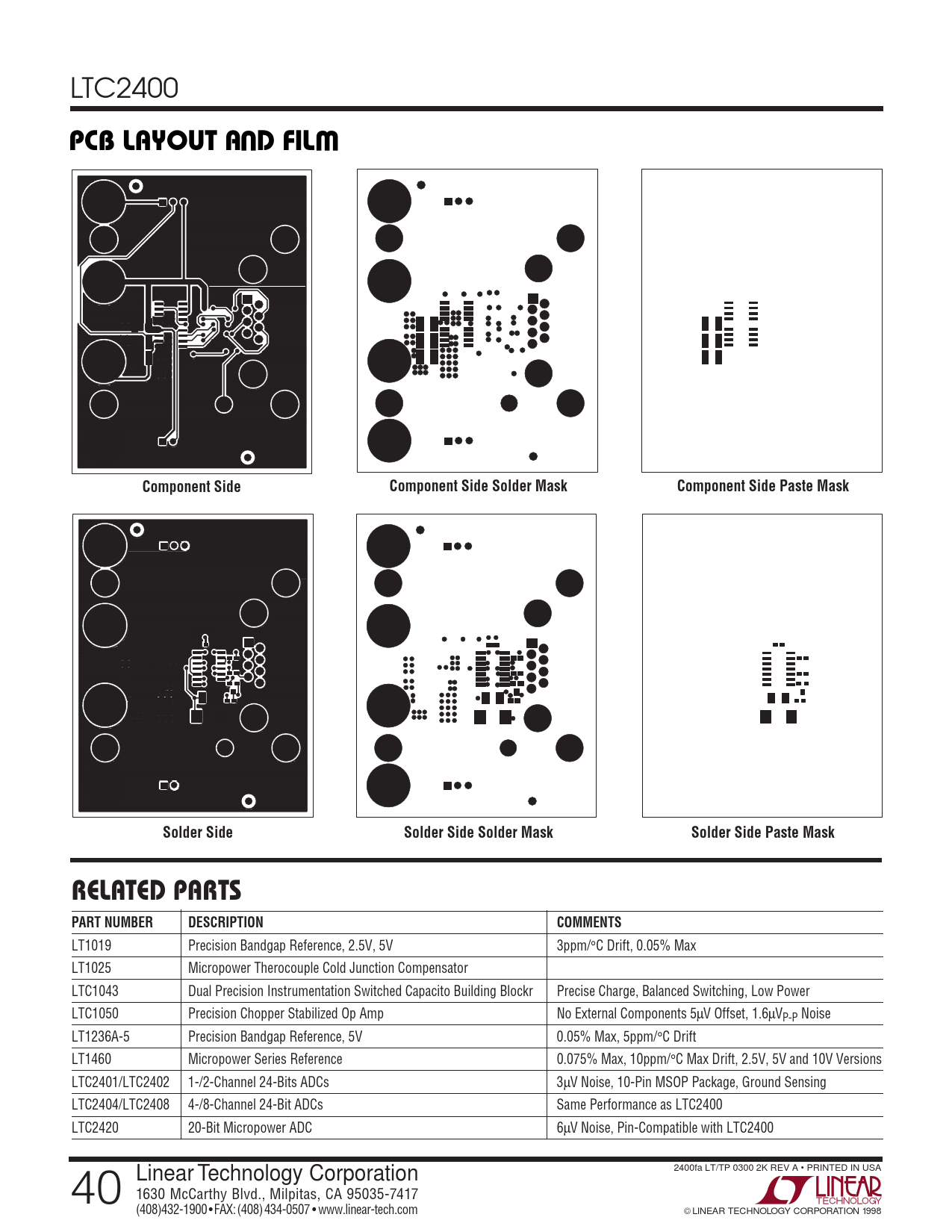

PCB LAYOUT A D FIL. Component Side. Component Side Solder Mask. Component Side Paste Mask. Solder Side. Solder Side Solder Mask
Model Line for this Datasheet
Text Version of Document
LTC2400
U W PCB LAYOUT A D FIL Component Side Component Side Solder Mask Component Side Paste Mask Solder Side Solder Side Solder Mask Solder Side Paste Mask RELATED PARTS PART NUMBER DESCRIPTION COMMENTS
LT1019 Precision Bandgap Reference, 2.5V, 5V 3ppm/°C Drift, 0.05% Max LT1025 Micropower Therocouple Cold Junction Compensator LTC1043 Dual Precision Instrumentation Switched Capacito Building Blockr Precise Charge, Balanced Switching, Low Power LTC1050 Precision Chopper Stabilized Op Amp No External Components 5µV Offset, 1.6µVP-P Noise LT1236A-5 Precision Bandgap Reference, 5V 0.05% Max, 5ppm/°C Drift LT1460 Micropower Series Reference 0.075% Max, 10ppm/°C Max Drift, 2.5V, 5V and 10V Versions LTC2401/LTC2402 1-/2-Channel 24-Bits ADCs 3µV Noise, 10-Pin MSOP Package, Ground Sensing LTC2404/LTC2408 4-/8-Channel 24-Bit ADCs Same Performance as LTC2400 LTC2420 20-Bit Micropower ADC 6µV Noise, Pin-Compatible with LTC2400 2400fa LT/TP 0300 2K REV A • PRINTED IN USA 40 Linear Technology Corporation 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear-tech.com LINEAR TECHNOLOGY CORPORATION 1998
