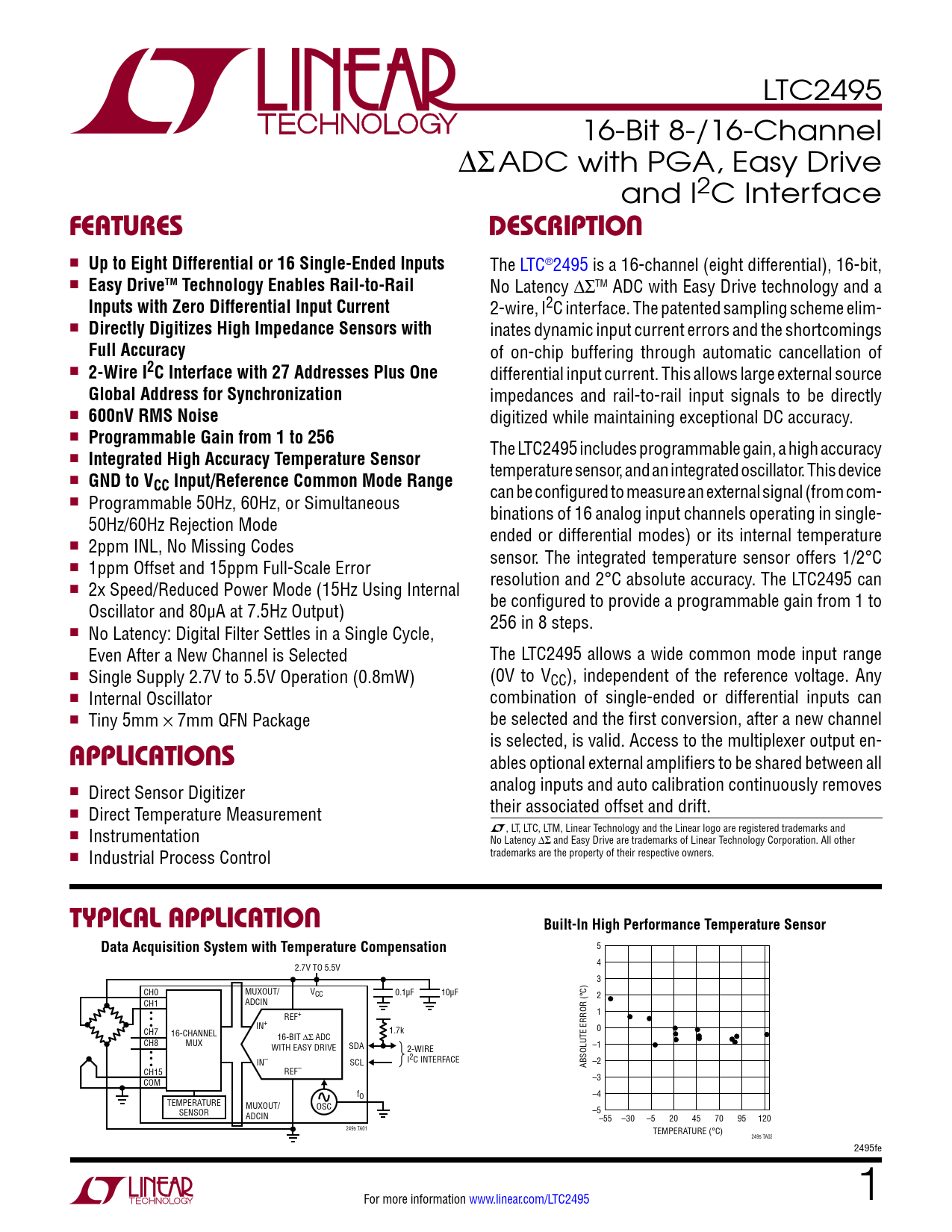

LTC2495 16-Bit 8-/16-Channel DS ADC with PGA, Easy Drive and I2C Interface
Features Description
n
Up to Eight Differential or 16 Single-Ended Inputs
The LTC®2495 is a 16-channel (eight differential), 16-bit, n
Easy DriveTM Technology Enables Rail-to-Rail
No Latency DSTM ADC with Easy Drive technology and a
Inputs with Zero Differential Input Current
2-wire, I2C interface. The patented sampling scheme elim- n
Directly Digitizes High Impedance Sensors with
inates dynamic input current errors and the shortcomings
Full Accuracy
of on-chip buffering through automatic cancellation of n
2-Wire I2C Interface with 27 Addresses Plus One
differential input current. This allows large external source
Global Address for Synchronization
impedances and rail-to-rail input signals to be directly n
600nV RMS Noise
digitized while maintaining exceptional DC accuracy. n
Programmable Gain from 1 to 256
The LTC2495 includes programmable gain, a high accuracy n
Integrated High Accuracy Temperature Sensor
temperature sensor, and an integrated oscillator. This device n
GND to VCC Input/Reference Common Mode Range
can be configured to measure an external signal (from com- n Programmable 50Hz, 60Hz, or Simultaneous binations of 16 analog input channels operating in single- 50Hz/60Hz Rejection Mode ended or differential modes) or its internal temperature n 2ppm INL, No Missing Codes sensor. The integrated temperature sensor offers 1/2°C n 1ppm Offset and 15ppm Full-Scale Error resolution and 2°C absolute accuracy. The LTC2495 can n 2x Speed/Reduced Power Mode (15Hz Using Internal be configured to provide a programmable gain from 1 to Oscillator and 80µA at 7.5Hz Output) 256 in 8 steps. n No Latency: Digital Filter Settles in a Single Cycle, Even After a New Channel is Selected The LTC2495 allows a wide common mode input range n Single Supply 2.7V to 5.5V Operation (0.8mW) (0V to VCC), independent of the reference voltage. Any n Internal Oscillator combination of single-ended or differential inputs can n Tiny 5mm × 7mm QFN Package be selected and the first conversion, after a new channel
applications
is selected, is valid. Access to the multiplexer output en- ables optional external amplifiers to be shared between all n analog inputs and auto calibration continuously removes Direct Sensor Digitizer n their associated offset and drift. Direct Temperature Measurement L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and n Instrumentation No Latency DS and Easy Drive are trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners. n Industrial Process Control
typical application Built-In High Performance Temperature Sensor Data Acquisition System with Temperature Compensation
