| Manufacturer | ON Semiconductor |
| Description | General Purpose PNP Silicon Transistors |
| Pages / Page | 7 / 2 — 2N4403. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. Min. Max. … |
| Revision | 3 |
| File Format / Size | PDF / 121 Kb |
| Document Language | English |
2N4403. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. Min. Max. Unit. OFF CHARACTERISTICS. ON CHARACTERISTICS
Text Version of Document
link to page 2 link to page 2 link to page 2 link to page 2 link to page 2

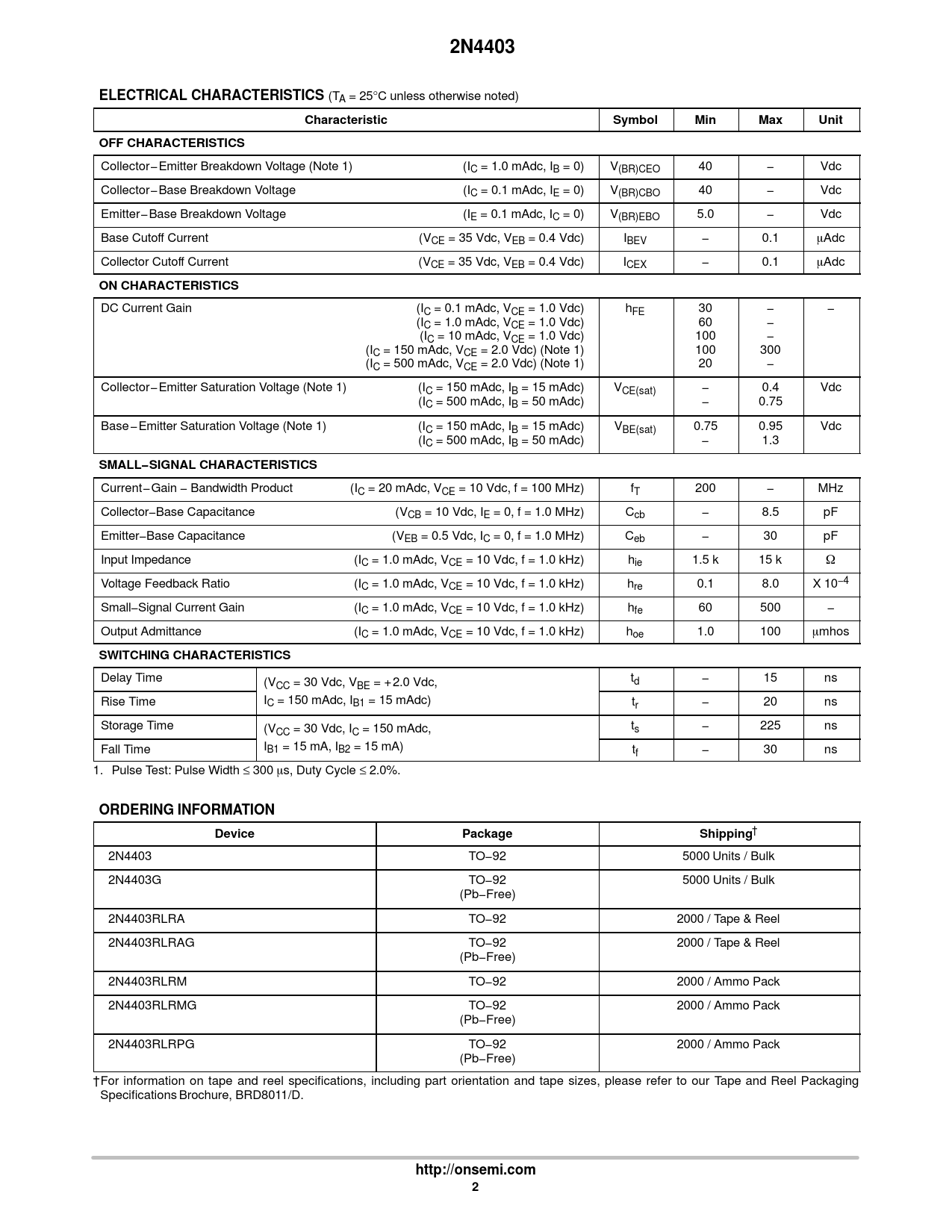

2N4403 ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic Symbol Min Max Unit OFF CHARACTERISTICS
Collector−Emitter Breakdown Voltage (Note 1) (IC = 1.0 mAdc, IB = 0) V(BR)CEO 40 − Vdc Collector−Base Breakdown Voltage (IC = 0.1 mAdc, IE = 0) V(BR)CBO 40 − Vdc Emitter−Base Breakdown Voltage (IE = 0.1 mAdc, IC = 0) V(BR)EBO 5.0 − Vdc Base Cutoff Current (VCE = 35 Vdc, VEB = 0.4 Vdc) IBEV − 0.1 mAdc Collector Cutoff Current (VCE = 35 Vdc, VEB = 0.4 Vdc) ICEX − 0.1 mAdc
ON CHARACTERISTICS
DC Current Gain (IC = 0.1 mAdc, VCE = 1.0 Vdc) hFE 30 − − (IC = 1.0 mAdc, VCE = 1.0 Vdc) 60 − (IC = 10 mAdc, VCE = 1.0 Vdc) 100 − (IC = 150 mAdc, VCE = 2.0 Vdc) (Note 1) 100 300 (IC = 500 mAdc, VCE = 2.0 Vdc) (Note 1) 20 − Collector−Emitter Saturation Voltage (Note 1) (IC = 150 mAdc, IB = 15 mAdc) VCE(sat) − 0.4 Vdc (IC = 500 mAdc, IB = 50 mAdc) − 0.75 Base−Emitter Saturation Voltage (Note 1) (IC = 150 mAdc, IB = 15 mAdc) VBE(sat) 0.75 0.95 Vdc (IC = 500 mAdc, IB = 50 mAdc) − 1.3
SMALL−SIGNAL CHARACTERISTICS
Current−Gain − Bandwidth Product (IC = 20 mAdc, VCE = 10 Vdc, f = 100 MHz) fT 200 − MHz Collector−Base Capacitance (VCB = 10 Vdc, IE = 0, f = 1.0 MHz) Ccb − 8.5 pF Emitter−Base Capacitance (VEB = 0.5 Vdc, IC = 0, f = 1.0 MHz) Ceb − 30 pF Input Impedance (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) hie 1.5 k 15 k W Voltage Feedback Ratio (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) hre 0.1 8.0 X 10−4 Small−Signal Current Gain (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) hfe 60 500 − Output Admittance (IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz) hoe 1.0 100 mmhos
SWITCHING CHARACTERISTICS
Delay Time (V t CC = 30 Vdc, VBE = + 2.0 Vdc, d − 15 ns Rise Time IC = 150 mAdc, IB1 = 15 mAdc) tr − 20 ns Storage Time (V t CC = 30 Vdc, IC = 150 mAdc, s − 225 ns I Fall Time B1 = 15 mA, IB2 = 15 mA) tf − 30 ns 1. Pulse Test: Pulse Width ≤ 300 ms, Duty Cycle ≤ 2.0%.
ORDERING INFORMATION Device Package Shipping
† 2N4403 TO−92 5000 Units / Bulk 2N4403G TO−92 5000 Units / Bulk (Pb−Free) 2N4403RLRA TO−92 2000 / Tape & Reel 2N4403RLRAG TO−92 2000 / Tape & Reel (Pb−Free) 2N4403RLRM TO−92 2000 / Ammo Pack 2N4403RLRMG TO−92 2000 / Ammo Pack (Pb−Free) 2N4403RLRPG TO−92 2000 / Ammo Pack (Pb−Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
