Datasheet LT1118, LT1118-2.5, LT1118-2.85, LT1118-5 (Analog Devices) - 3

ManufacturerAnalog Devices
DescriptionLow IQ, Low Dropout, 800mA, Source and Sink Regulators Adjustable and Fixed 2.5V, 2.85V, 5V Output
Pages / Page8 / 3 — ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply …
File Format / SizePDF / 253 Kb
Document LanguageEnglish

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating

ELECTRICAL CHARACTERISTICS The denotes the specifi cations which apply over the full operating

Model Line for this Datasheet

Text Version of Document

LT1118/LT1118-2.5 LT1118-2.85/LT1118-5
ELECTRICAL CHARACTERISTICS The
l

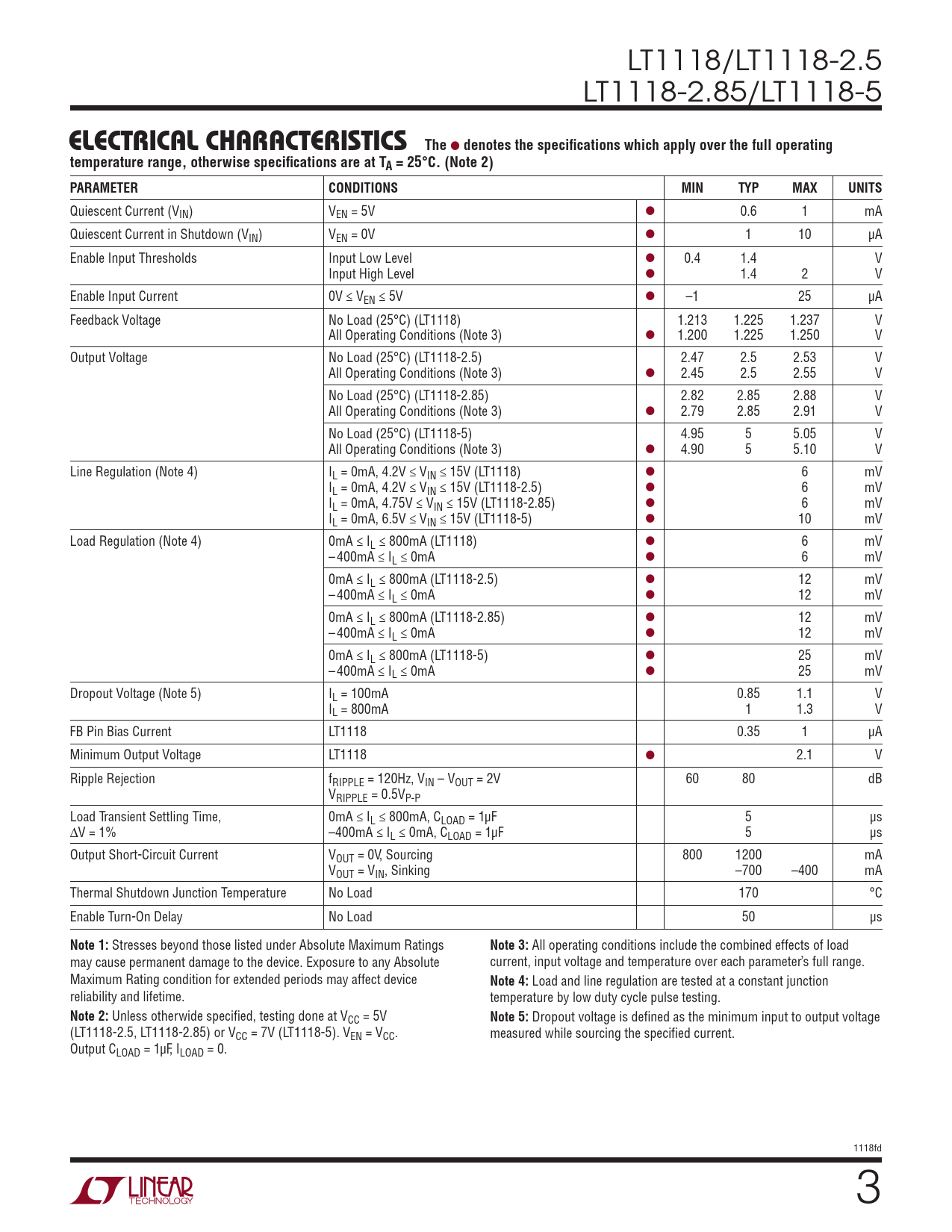

denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Quiescent Current (VIN) VEN = 5V l 0.6 1 mA Quiescent Current in Shutdown (VIN) VEN = 0V l 1 10 μA Enable Input Thresholds Input Low Level l 0.4 1.4 V Input High Level l 1.4 2 V Enable Input Current 0V ≤ VEN ≤ 5V l –1 25 μA Feedback Voltage No Load (25°C) (LT1118) 1.213 1.225 1.237 V All Operating Conditions (Note 3) l 1.200 1.225 1.250 V Output Voltage No Load (25°C) (LT1118-2.5) 2.47 2.5 2.53 V All Operating Conditions (Note 3) l 2.45 2.5 2.55 V No Load (25°C) (LT1118-2.85) 2.82 2.85 2.88 V All Operating Conditions (Note 3) l 2.79 2.85 2.91 V No Load (25°C) (LT1118-5) 4.95 5 5.05 V All Operating Conditions (Note 3) l 4.90 5 5.10 V Line Regulation (Note 4) IL = 0mA, 4.2V ≤ VIN ≤ 15V (LT1118) l 6 mV IL = 0mA, 4.2V ≤ VIN ≤ 15V (LT1118-2.5) l 6 mV IL = 0mA, 4.75V ≤ VIN ≤ 15V (LT1118-2.85) l 6 mV IL = 0mA, 6.5V ≤ VIN ≤ 15V (LT1118-5) l 10 mV Load Regulation (Note 4) 0mA ≤ IL ≤ 800mA (LT1118) l 6 mV – 400mA ≤ IL ≤ 0mA l 6 mV 0mA ≤ IL ≤ 800mA (LT1118-2.5) l 12 mV – 400mA ≤ IL ≤ 0mA l 12 mV 0mA ≤ IL ≤ 800mA (LT1118-2.85) l 12 mV – 400mA ≤ IL ≤ 0mA l 12 mV 0mA ≤ IL ≤ 800mA (LT1118-5) l 25 mV – 400mA ≤ IL ≤ 0mA l 25 mV Dropout Voltage (Note 5) IL = 100mA 0.85 1.1 V IL = 800mA 1 1.3 V FB Pin Bias Current LT1118 0.35 1 μA Minimum Output Voltage LT1118 l 2.1 V Ripple Rejection fRIPPLE = 120Hz, VIN – VOUT = 2V 60 80 dB VRIPPLE = 0.5VP-P Load Transient Settling Time, 0mA ≤ IL ≤ 800mA, CLOAD = 1μF 5 μs ΔV = 1% –400mA ≤ IL ≤ 0mA, CLOAD = 1μF 5 μs Output Short-Circuit Current VOUT = 0V, Sourcing 800 1200 mA VOUT = VIN, Sinking –700 –400 mA Thermal Shutdown Junction Temperature No Load 170 °C Enable Turn-On Delay No Load 50 μs
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
All operating conditions include the combined effects of load may cause permanent damage to the device. Exposure to any Absolute current, input voltage and temperature over each parameter’s full range. Maximum Rating condition for extended periods may affect device
Note 4:
Load and line regulation are tested at a constant junction reliability and lifetime. temperature by low duty cycle pulse testing.
Note 2:
Unless otherwide specifi ed, testing done at VCC = 5V
Note 5:
Dropout voltage is defi ned as the minimum input to output voltage (LT1118-2.5, LT1118-2.85) or VCC = 7V (LT1118-5). VEN = VCC. measured while sourcing the specifi ed current. Output CLOAD = 1μF, ILOAD = 0. 1118fd 3
