Datasheet ATmega164A - Summary (Microchip) - 9
| Manufacturer | Microchip |
| Description | 8-bit AVR Microcontrollers ATmega164A |
| Pages / Page | 22 / 9 — Pin Configurations. 5.1. Pinout. 5.1.1. PDIP |
| Revision | 12-10-2016 |
| File Format / Size | PDF / 519 Kb |
| Document Language | English |
Pin Configurations. 5.1. Pinout. 5.1.1. PDIP
Model Line for this Datasheet
ATmega164A
Text Version of Document

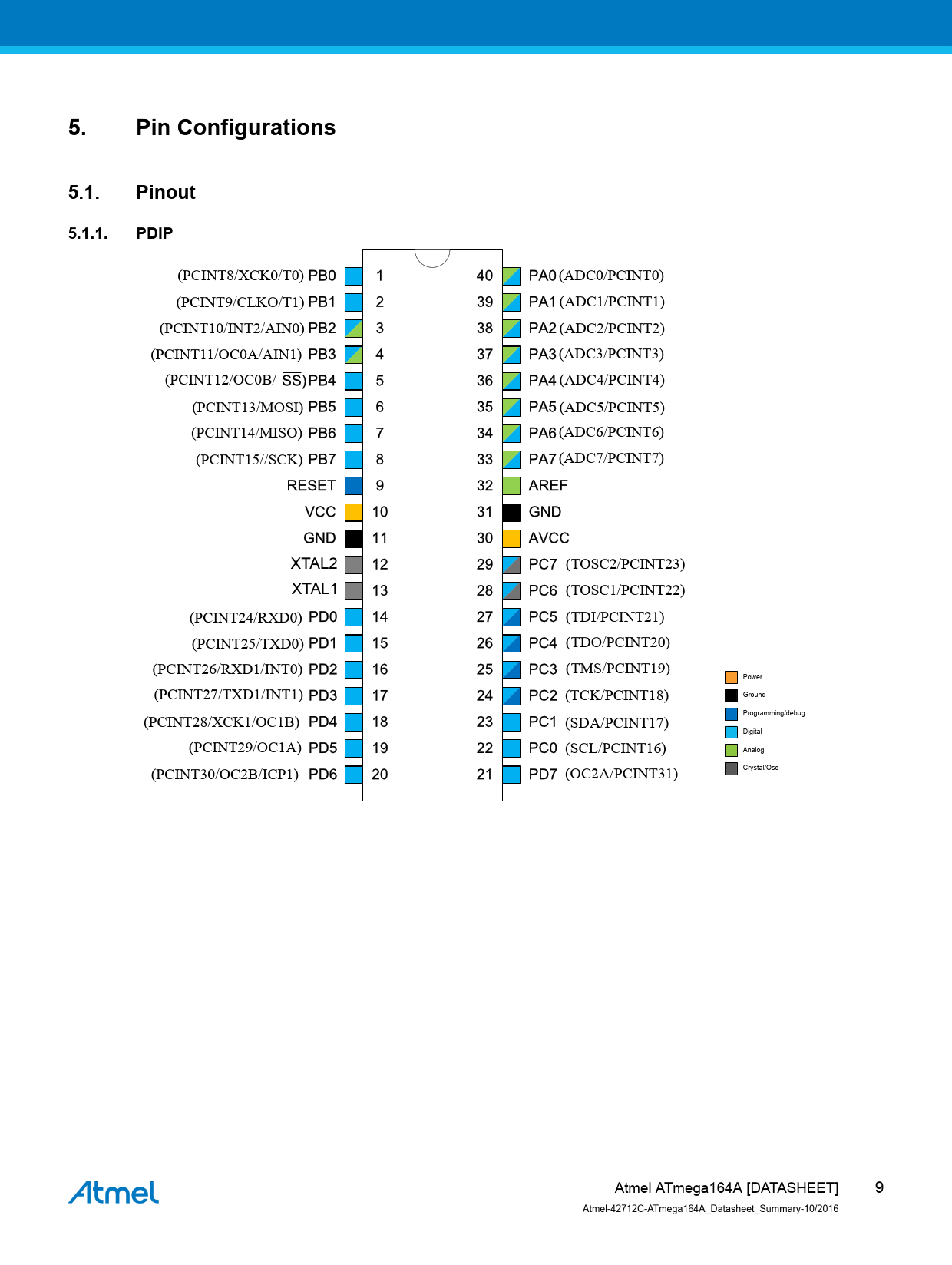

5. Pin Configurations 5.1. Pinout 5.1.1. PDIP
